Component Location Index
Component Location Index

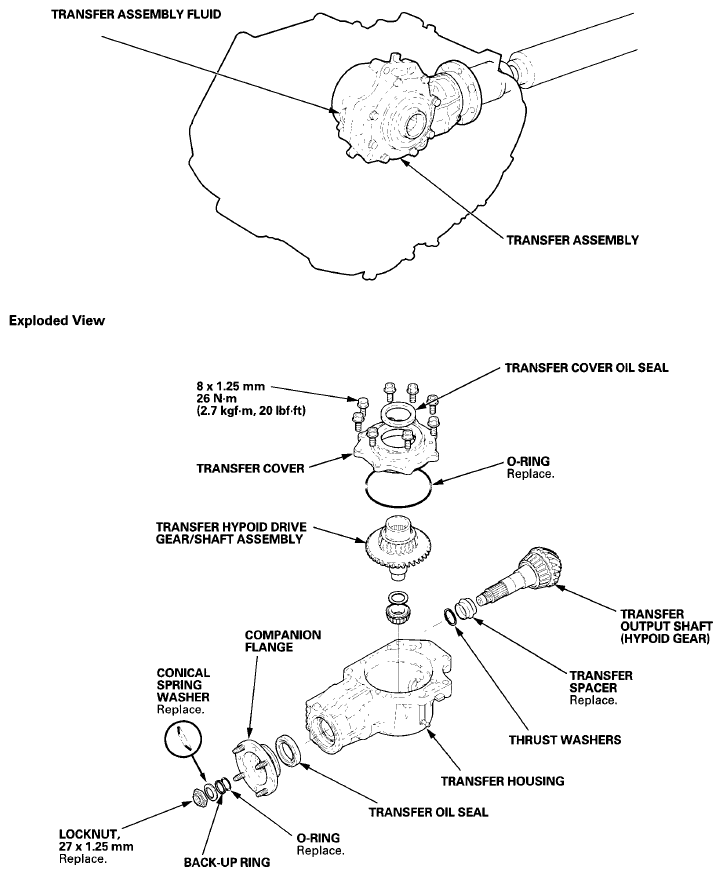

Fig 1: Exploded View Of Transfer Assembly Components With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
