Repair and Diagnosis (Single Page)
›
Accessories & Equipment
›
Infotainment
›
Navigation System
›
System Description
›
Navigation Function
›
Function Diagram
Function Diagram

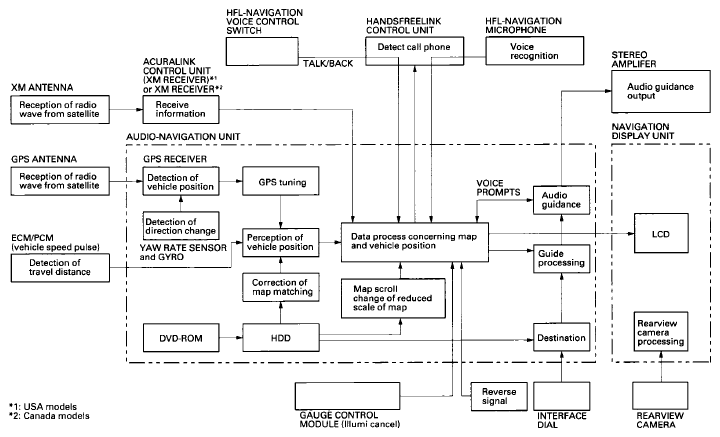

Fig 1: Navigation Function Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
