Navigation Unit Connector for Inputs and Outputs: Notes

NOTE: Refer to the audio system information for the connectors C, E, and F inputs and outputs (see AUDIO UNIT CONNECTOR FOR INPUTS AND OUTPUTS (WITH NAVIGATION) ).

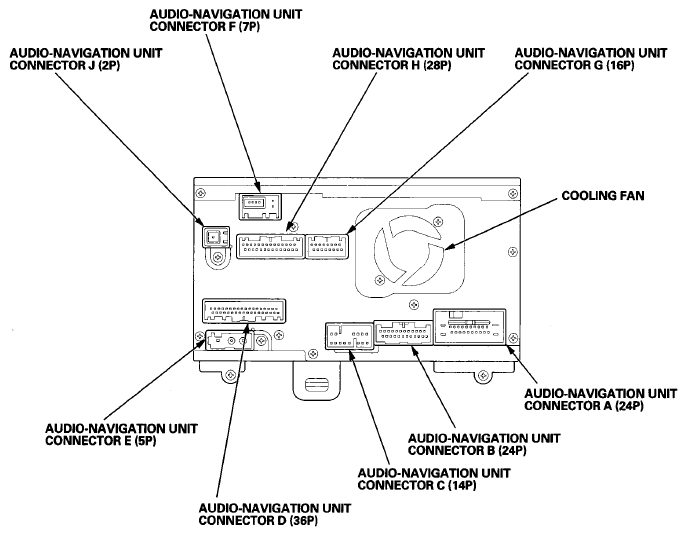

Fig 1: Identifying Navigation Unit Connectors For Inputs & Outputs

Courtesy of AMERICAN HONDA MOTOR CO., INC.
