HANDSFREELINK System
›
Circuit Diagram
›
With Navigation
With Navigation

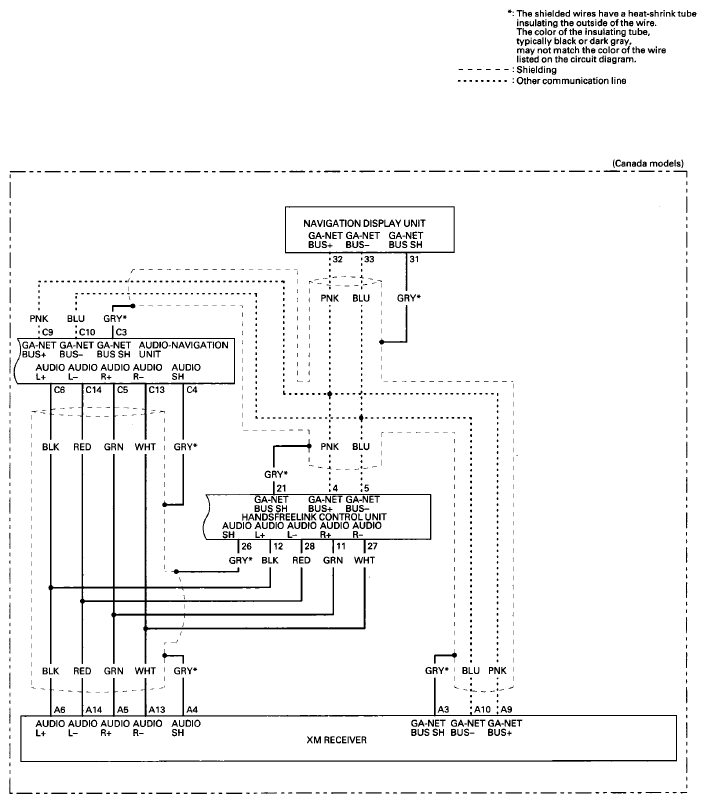

Fig 1: HandsFreeLink System Circuit Diagram (1 Of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

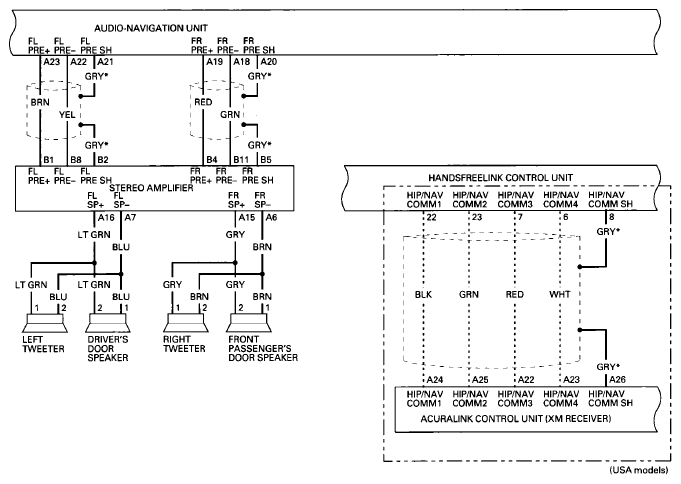

Fig 2: HandsFreeLink System Circuit Diagram (2 Of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

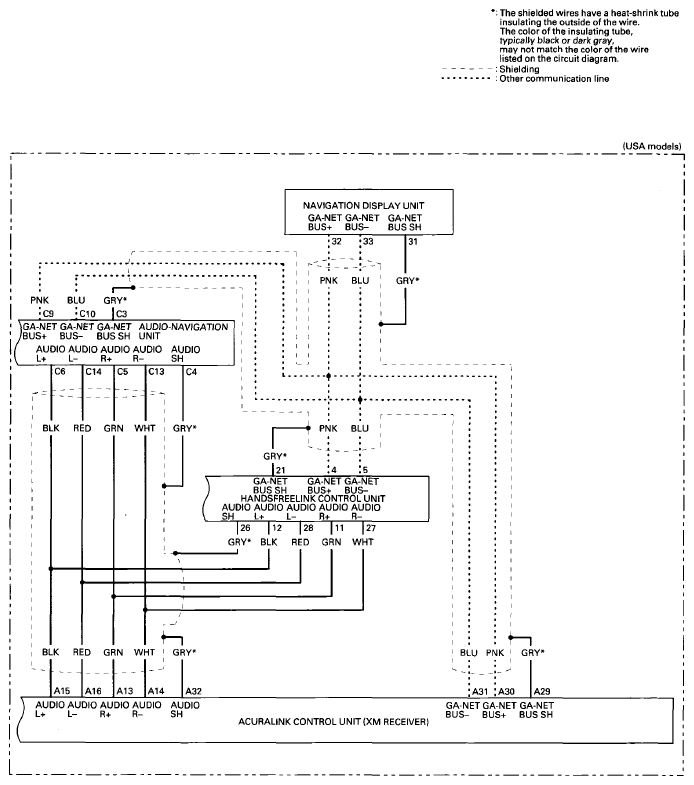

Fig 1: HandsFreeLink System Circuit Diagram (3 Of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

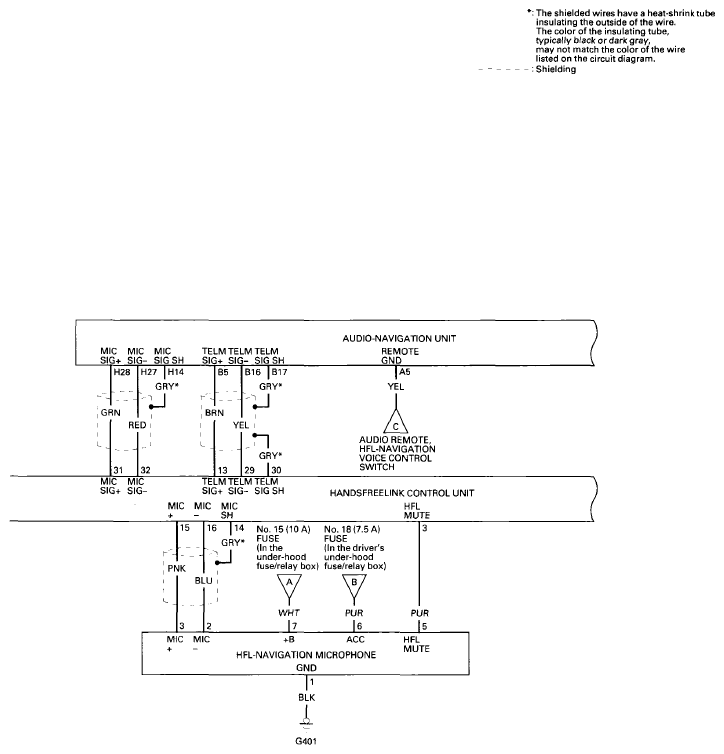

Fig 2: HandsFreeLink System Circuit Diagram (4 Of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

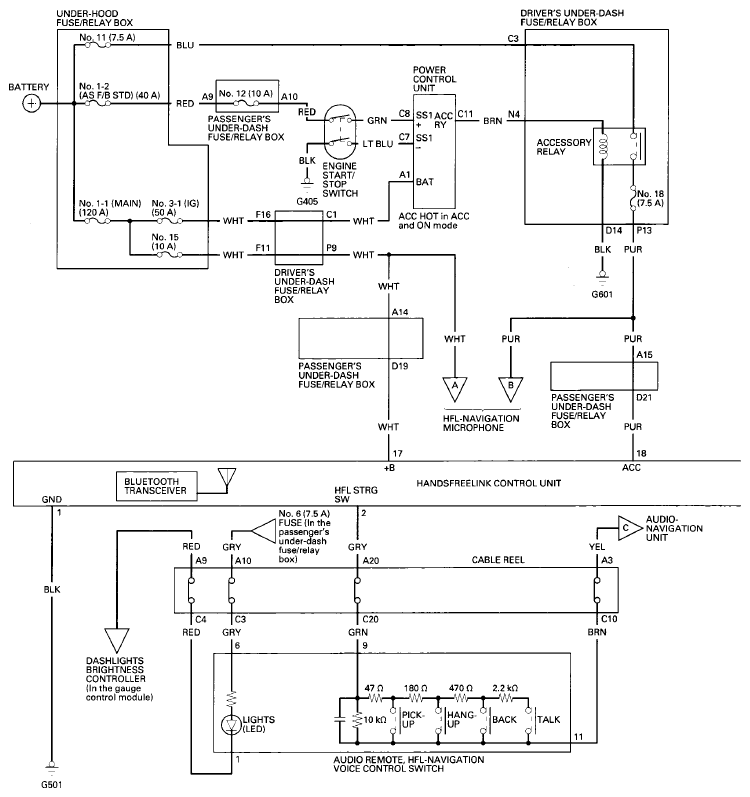

Fig 1: HandsFreeLink System Circuit Diagram (5 Of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
