Rear Subframe Torque

NOTE:

Install the rear subframe by aligning the installation positioning holes and positioning holes with the subframe alignment pin.
Always replace any removed subframe mounting bolts with new ones.

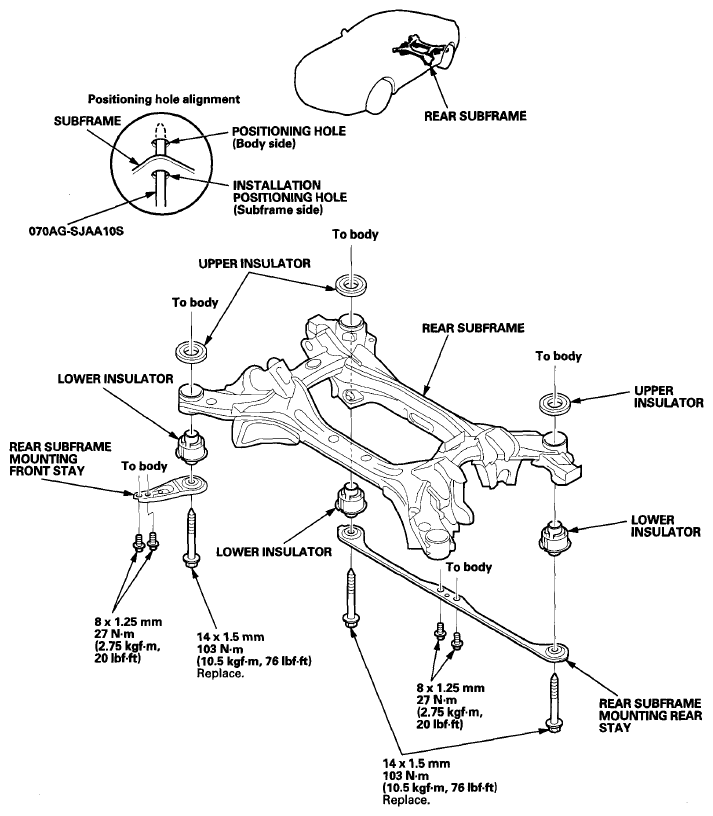

Fig 1: Rear Subframe Torque And Related Components Location With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
