Automatic Dimming Inside Mirror
›
Circuit Diagram
›
With Keyless Access System
With Keyless Access System

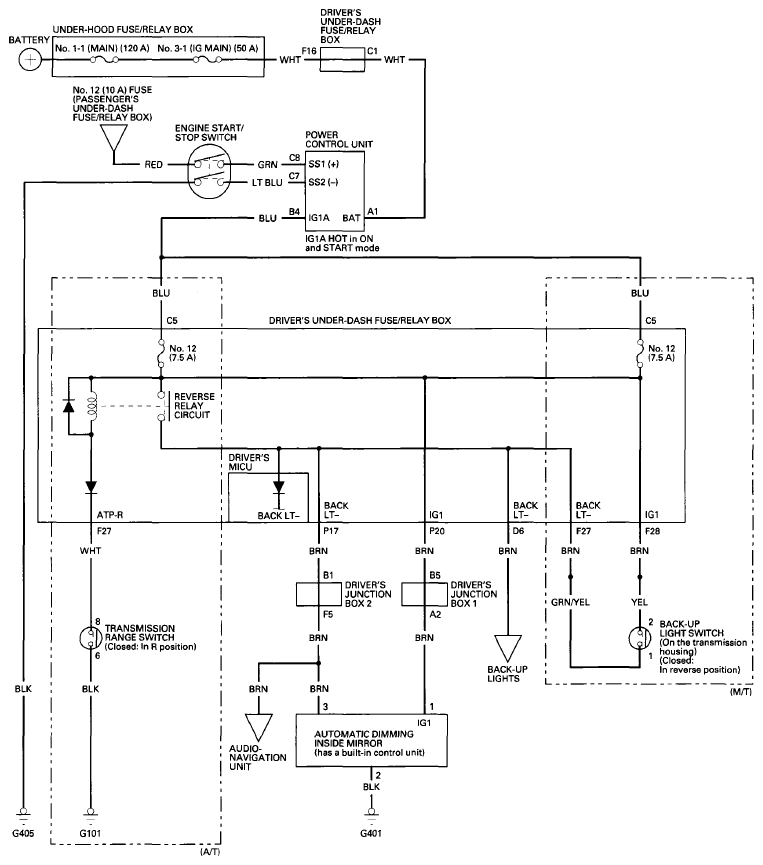

Fig 1: Automatic Dimming Inside Mirror Circuit Wiring Diagram (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
