Component Location Index

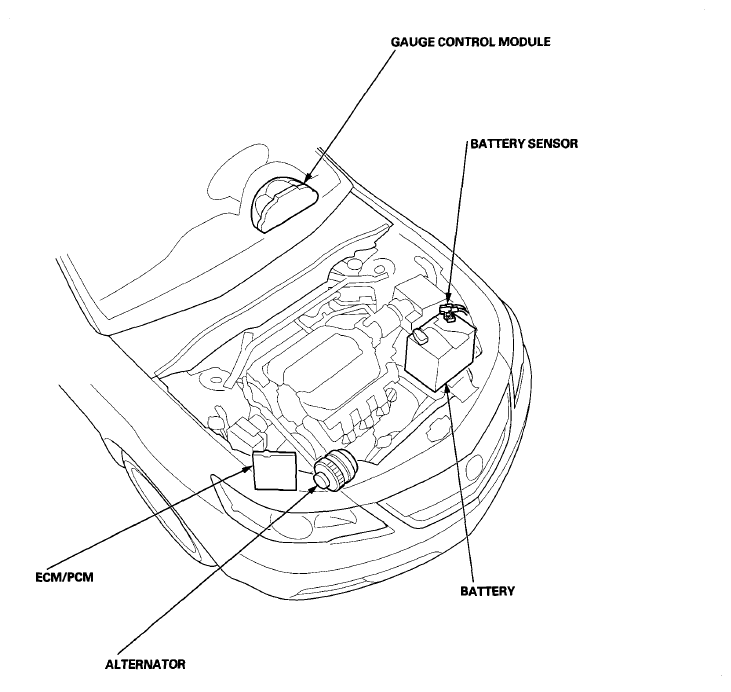

Fig 1: Battery Management System Components Location (1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Battery Management System Components Location (2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Battery Management System Components Location (3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
