Relay And Control Unit Locations
›
Dashboard
›
With Navigation
With Navigation

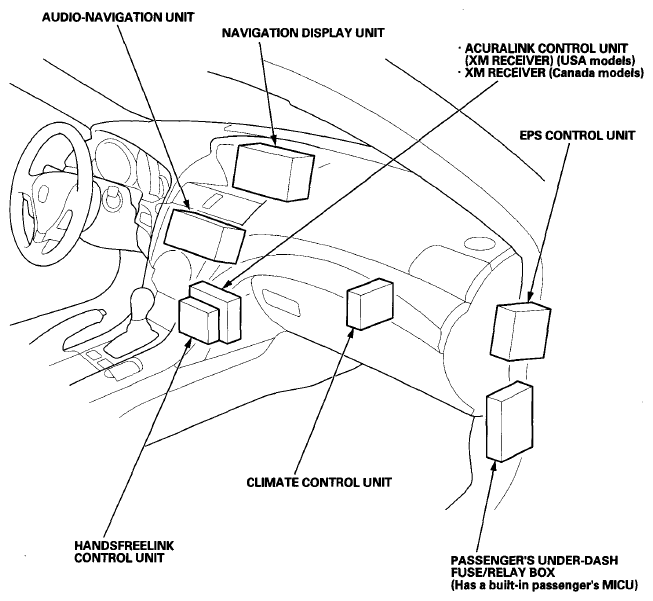

Fig 1: Identifying Dashboard With Navigation
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
