Engine Compartment

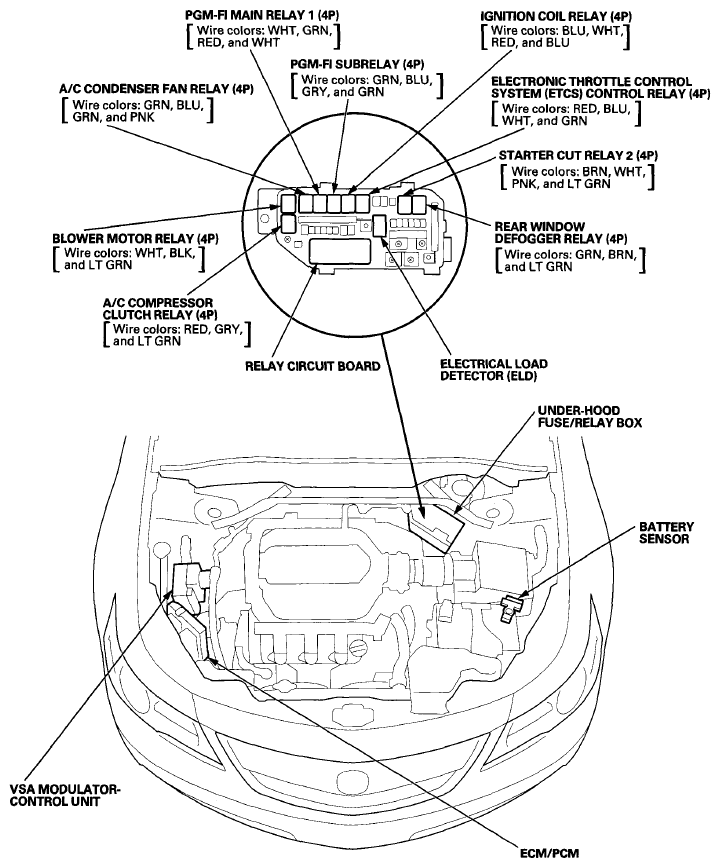

Fig 1: Engine Compartment Components Location
G08067447Courtesy of AMERICAN HONDA MOTOR CO., INC.
