Acura
›
2012
›
TL Base
›
Repair and Diagnosis
›
Electrical
›
Charging Systems
›
Charging System
›
Circuit Diagram
›
With Keyless Access System
With Keyless Access System

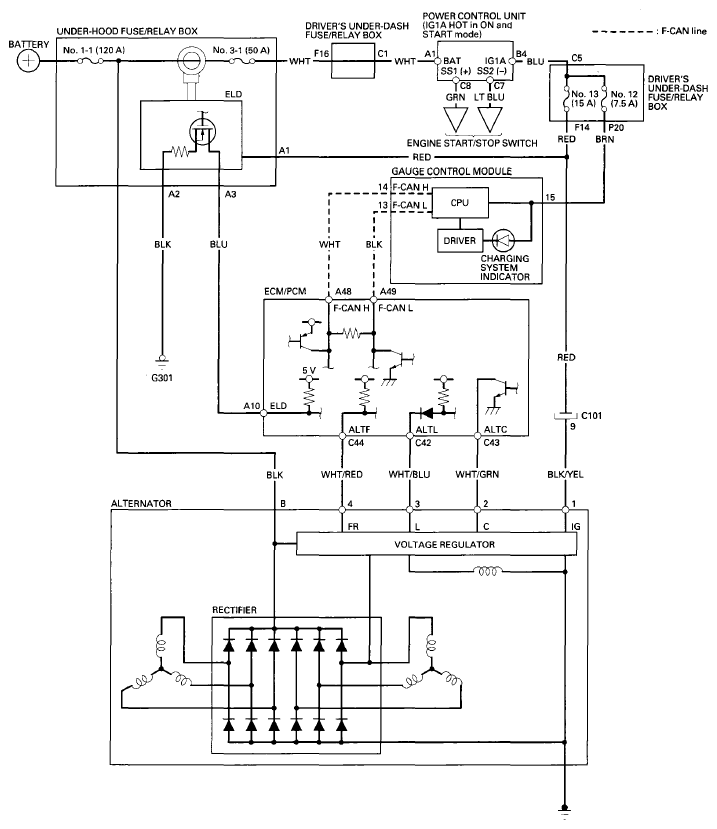

Fig 1: Charging System - Circuit Diagram (With Keyless Access System)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
