BSI Control Unit Removal/Installation

Remove the left trunk side trim panel (see TRIM REMOVAL/INSTALLATION - TRUNK AREA ).
Remove the BSI control unit (A).
1. Disconnect the BSI control unit 16P connector (B).
2. Loosen the bolts.

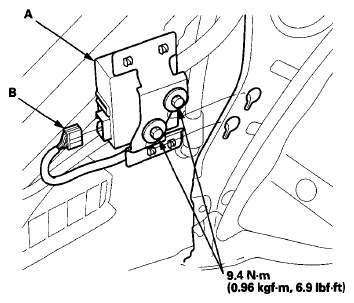

  Fig 1: BSI Control Unit And 16P Connector With Torque Specifications
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the BSI control unit in the reverse order of removal.
