Starting System
›
Circuit Diagram
›
With Keyless Access System-M/T model
With Keyless Access System-M/T model

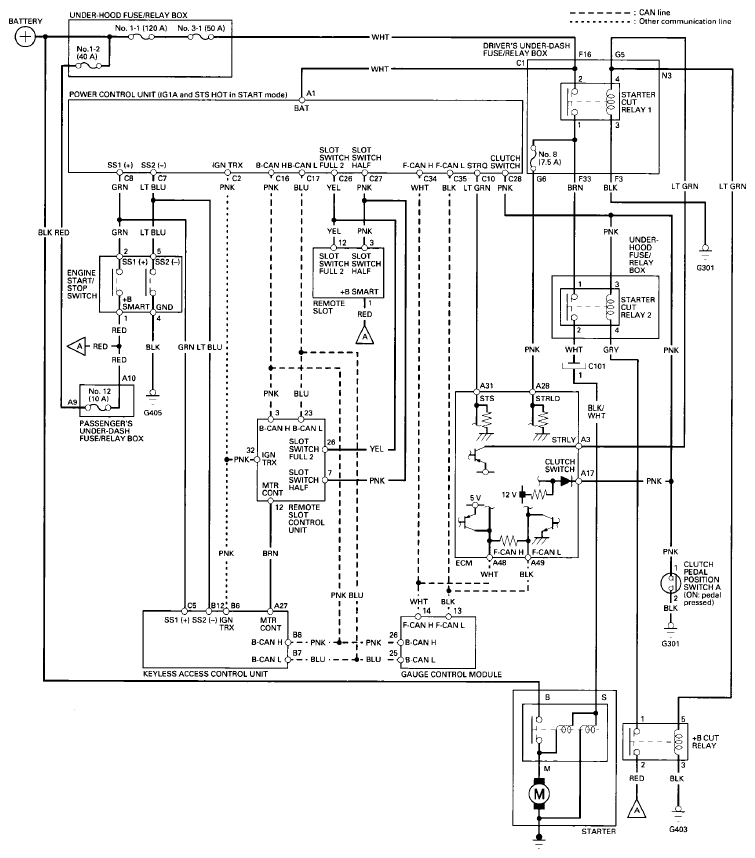

Fig 1: Starting System - Circuit Diagram (With Keyless Access System-M/T Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
