Component Location Index

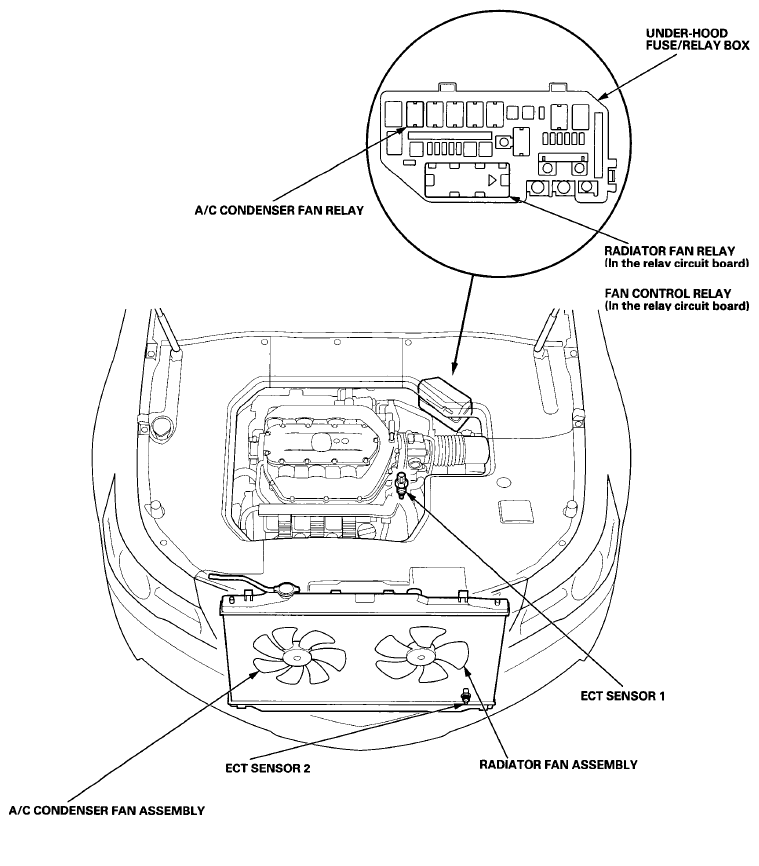

Fig 1: Fan Controls Components Location
G08067242Courtesy of AMERICAN HONDA MOTOR CO., INC.
