Installation-M/T model

  1. Install the lower transmission mount (A).

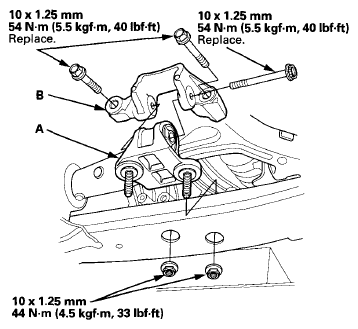

    Fig 1: Lower Transmission Mount Bracket And Transmission Mount (M/T Model) With Torque Specifications
    G08068760Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Loosely install the lower transmission mount bracket (B) using new bolts.
  3. Remove the transmission jack.
  4. Tighten the lower transmission mount bracket mounting bolts and the lower transmission mount mounting nuts.
  5. Install the front splash shield (see FRONT SPLASH SHIELD REPLACEMENT ).
