Side Engine Mount Removal and Installation: Installation

Install the side engine mount using new bolts.

Fig 1: Side Engine Mount & Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Loosely install the upper half of the side engine mount bracket (A) using new bolts.

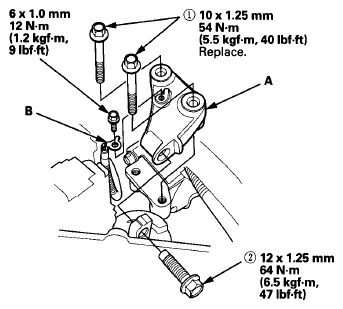

Fig 2: Engine Mount Bracket, Ground Cable And Tightening Sequence Of Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the jack and the wood block.
Tighten the bolts in the numbered sequence shown.
Install the ground cable (B).
Install the engine compartment covers (see ENGINE COMPARTMENT COVER REPLACEMENT ).
