Injector Base Removal and Installation: Installation

  1. Install the front injector base (A) and the rear injector base (B) with new gaskets (C), and tighten the injector base mounting bolts/nuts (D) in a crisscross pattern in three steps, beginning with the inner nuts.
    NOTE: The front injector base gasket is different from the rear one. Do not mix injector base gasket types.

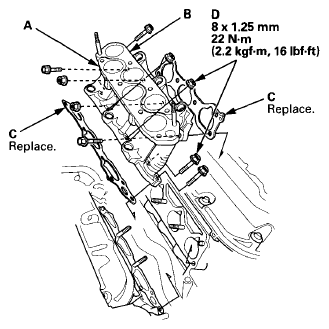

    Fig 1: Front And Rear Injector Base And Gasket With Torque Specifications
    G08069214Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Connect the knock sensor connector (A), then install the harness holder mounting bolts (B).
    Fig 2: Lnock Sensor Connector And Holder Mounting Bolts With Torque Specifications
    G08069215Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the injectors (see INJECTOR REPLACEMENT ).
  4. Install the intake manifold .
  5. Inspect for fuel leaks. Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode (do not operate the starter) so the fuel pump runs for about 2 seconds and pressurizes the fuel line. Repeat this operation three times, then check for fuel leakage at any point in the fuel line.
