Repair and Diagnosis
›
Heating, Ventilation & A/C (HVAC)
›
HVAC Control Systems
›
Climate Control
›
Circuit Diagram
Circuit Diagram

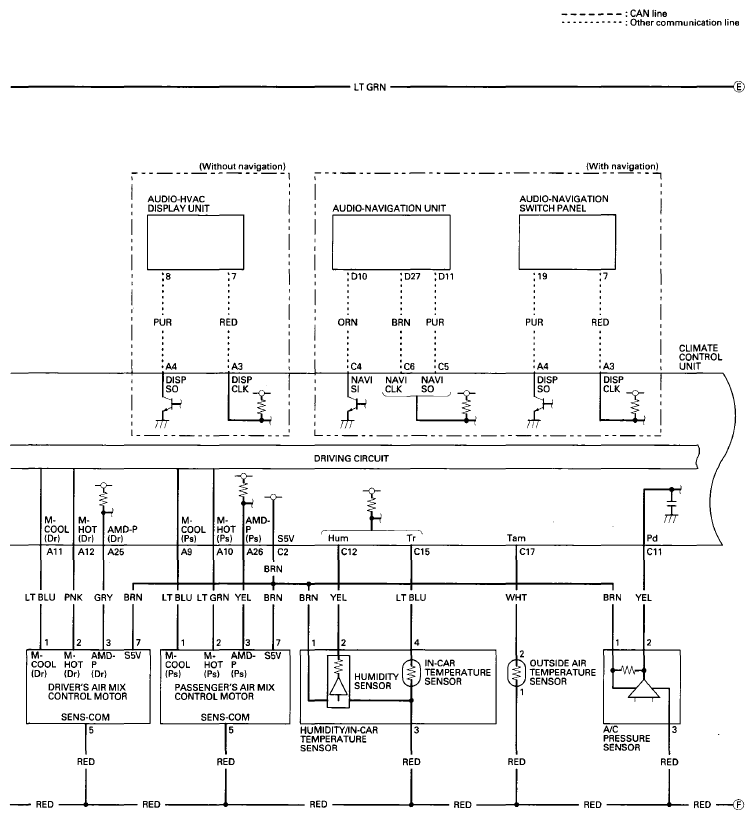

Fig 1: Climate Control - Circuit Diagram (1 Of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

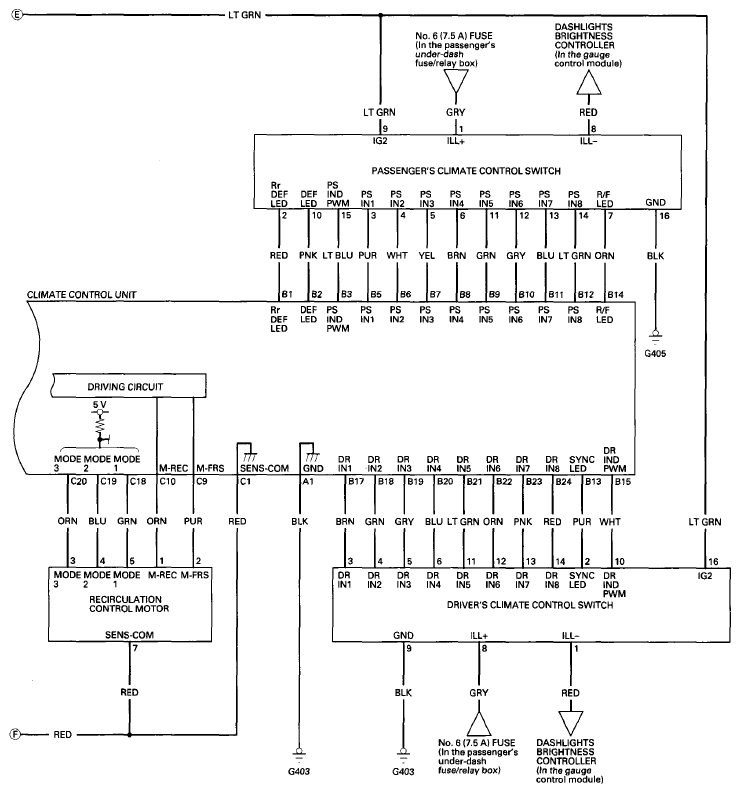

Fig 2: Climate Control - Circuit Diagram (2 Of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

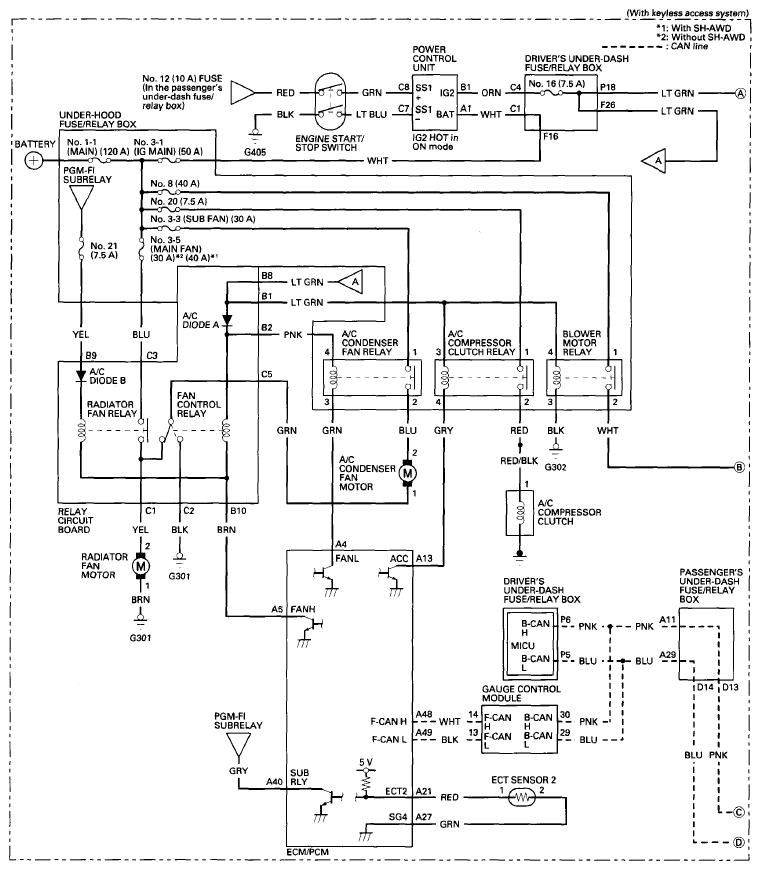

Fig 3: Climate Control - Circuit Diagram (3 Of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

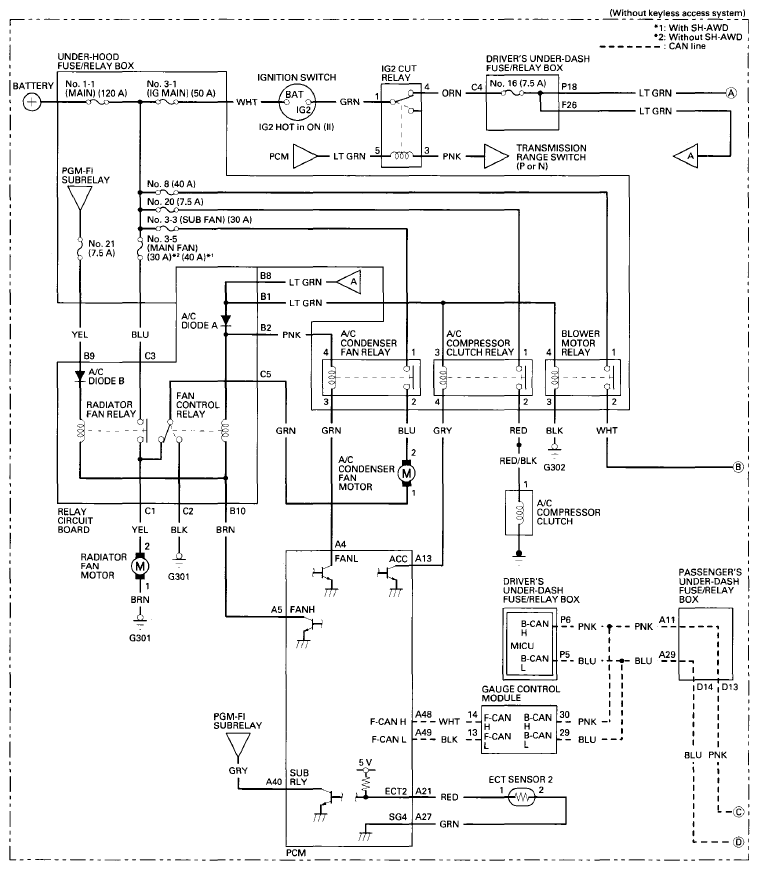

Fig 4: Climate Control - Circuit Diagram (4 Of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

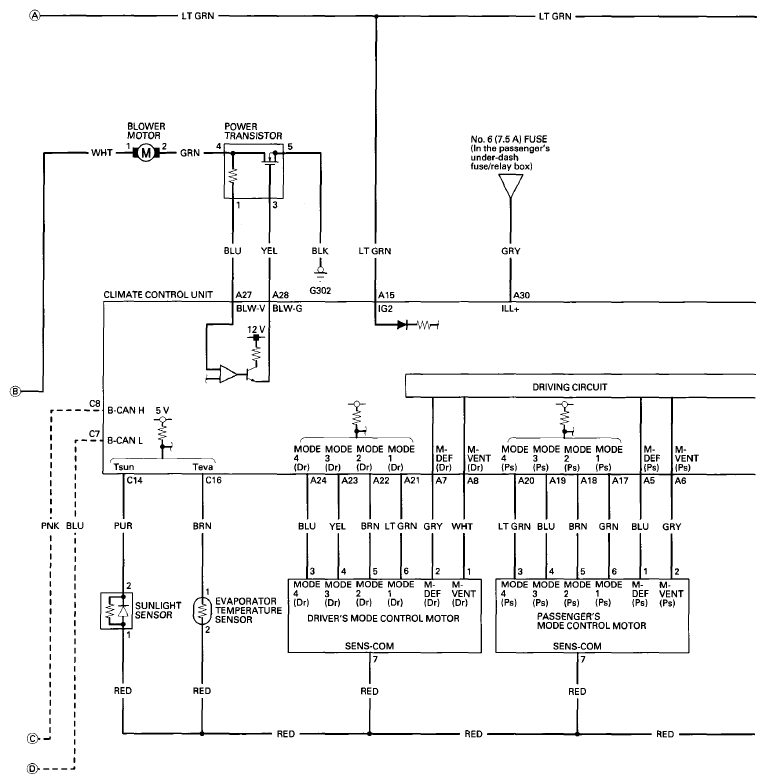

Fig 5: Climate Control - Circuit Diagram (5 Of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
