Component Location Index

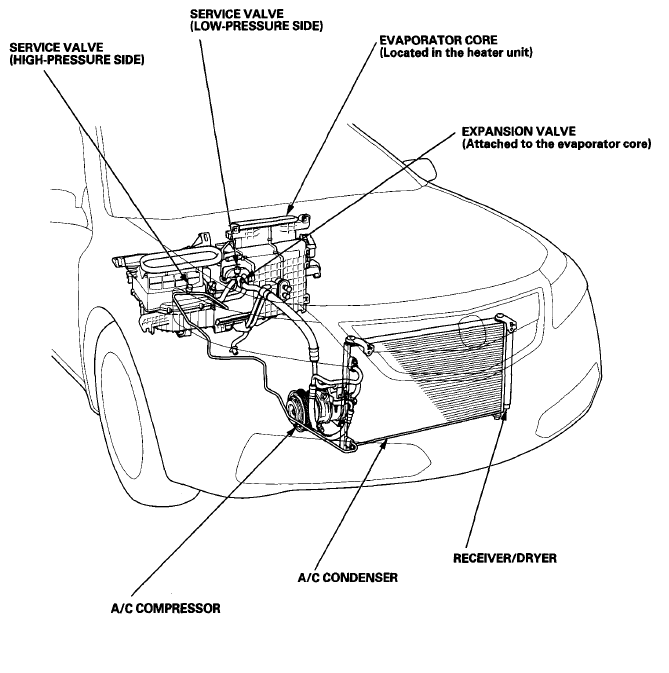

Fig 1: Climate Control Components Location (1 Of 3)
G08070929Courtesy of AMERICAN HONDA MOTOR CO., INC.

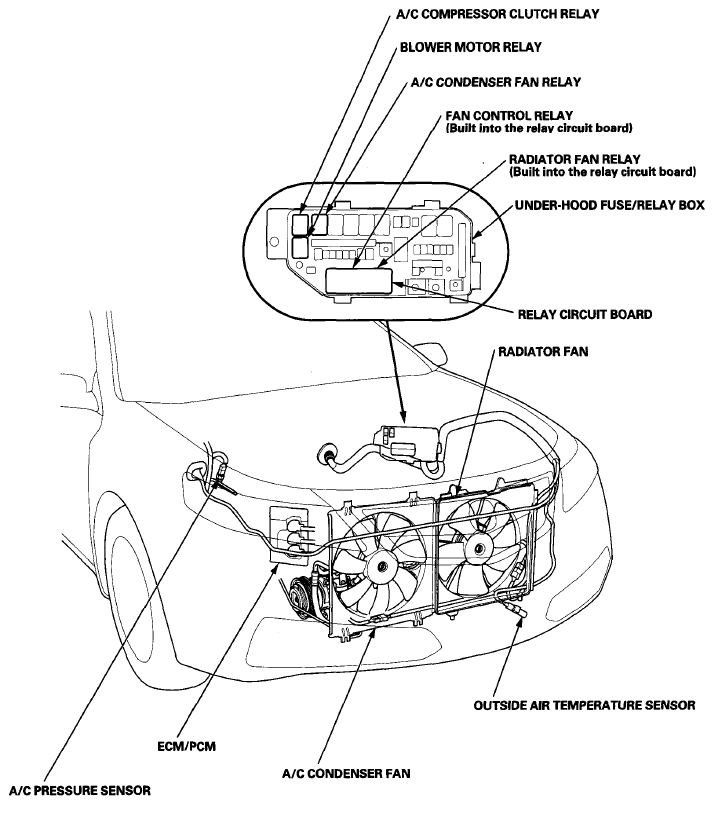

Fig 2: Climate Control Components Location (2 Of 3)
G08070930Courtesy of AMERICAN HONDA MOTOR CO., INC.

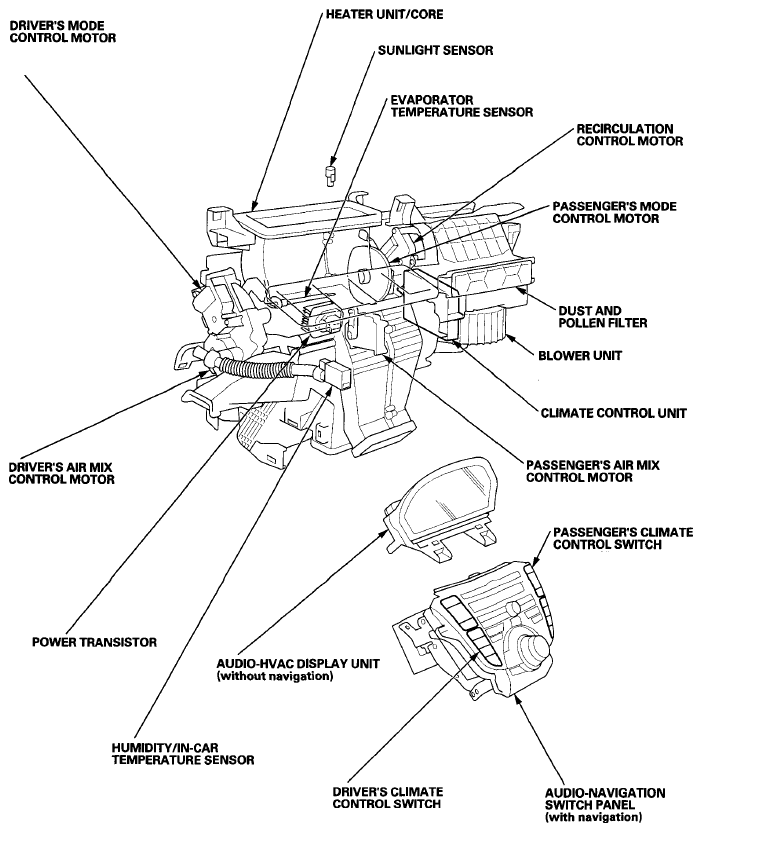

Fig 3: Climate Control Components Location (3 Of 3)
G08070931Courtesy of AMERICAN HONDA MOTOR CO., INC.
