Passenger's Mode Control Motor Replacement: Removal

NOTE: Set the passenger's side climate control to the VENT position before removing the motor.

Fig 1: Setting Passenger's Side Climate Control To Vent Position Before Removing Motor

Courtesy of AMERICAN HONDA MOTOR CO., INC.

1. Remove the passenger's dashboard undercover (see GLOVE BOX DAMPER REPLACEMENT ).
2. Remove the glove box (see GLOVE BOX REMOVAL/INSTALLATION ).
3. Remove the glove box frame (see step  4).
4. Release the harness clip (A), then remove the self-tapping screws and the passenger's heater duct (B).
   Fig 2: Identifying Harness Clip And Passenger's Heater Duct

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

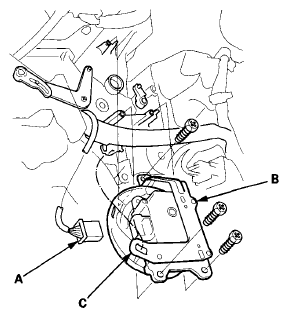

5. Disconnect the 7P connector (A) from the passenger's mode control motor (B). Release the wire from its harness clip (C), then remove the self-tapping screws and the passenger's mode control motor from the heater unit.
   Fig 3: Identifying Passenger's Mode Control Motor, Connector And Harness Clip

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
