Climate Control Door Positions

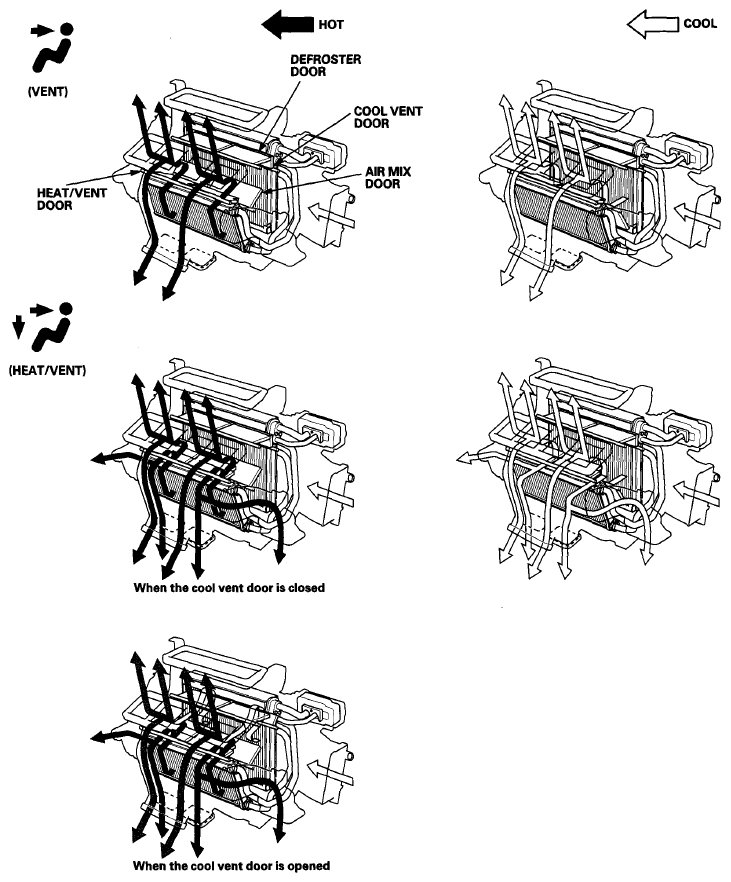

Fig 1: Climate Control Door Position Diagram (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

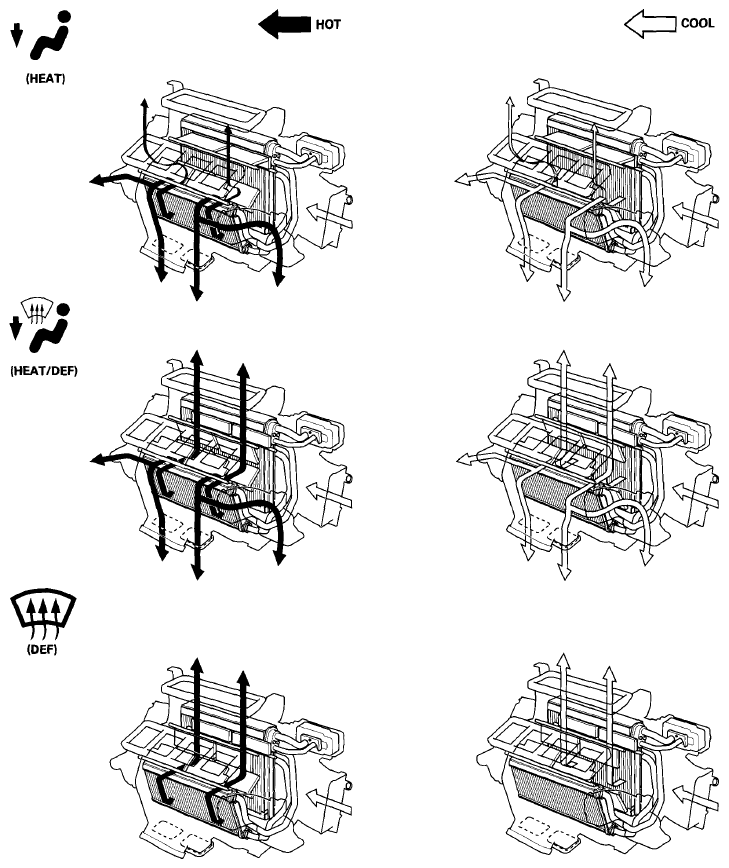

Fig 2: Climate Control Door Position Diagram (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
