Transfer HDD To Replacement Audio-Navigation Unit (B12090A)
Publication date: 2012-09-01Reference number: B12090A
TRANSFER HDD TO REPLACEMENT AUDIO-NAVIGATION UNIT
TECHNICAL SERVICE BULLETIN
Reference Number(s): B12090A, Date of Issue:
Sept 2012
| ACURA: | Navigation-equipped '13 ILX, '10-12 MDX, '13 RDX, '09-12 TL, '11-12 TSX, and '10-12 ZDX |
| CATEGORY: | Audio, Entertainment, Navigation, and Telematics |
| APPLIES TO: | Navigation-equipped '13 ILX, '10-12 MDX, '13 RDX, '09-12 TL, '11-12 TSX, and '10-12 ZDX |
SERVICE INFORMATION
EDITOR'S NOTE: This article replaces "Transfer the HDD When Replacing the Audio-Navigation Unit," issued in March 2010 .
In 2009, we introduced our second-generation hard disc drive (HDD)-based navigation system. The HDD has all the map and point-of-interest (POI) data, the navigation and audio system software, your client's settings, and his or her saved music and photos.
If you're replacing an audio-navigation unit, make sure you transfer the HDD to the replacement unit. Replacement units don't come with them. For complete instructions on HDD removal and installation, see the applicable electronic service manual.
- '10-12 MDX see HDD REMOVAL/INSTALLATION
- '09-12 TL see HDD REMOVAL/INSTALLATION
- '11-12 TSX see HDD REMOVAL/INSTALLATION
- '10-12 ZDX see HDD REMOVAL/INSTALLATION

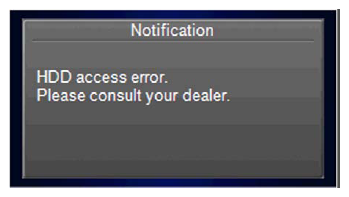

If you forget to transfer the HDD, you'll see this error message when you plug in the replacement unit:
