ODS Unit Replacement: Installation

NOTE:
  • Be sure to install the harness so that they are not pinched or interfering with other parts.
  • Make sure that the seat-back cover/pad is installed properly. Improper installation may prevent proper deployment.
  1. Place the ODS unit (A) on the seat-back frame. Tighten the new two mounting bolts (B) to the specified torque.

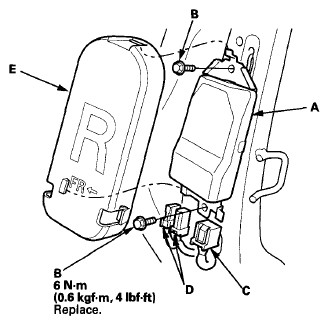

    Fig 1: ODS Unit And Two Mounting Bolts With Torque Specifications
    G08068387Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Connect the ODS unit 18P connector (C) and the OPDS sensor connectors (D) to the ODS unit. Reinstall the cover (E).
  3. Install the seat-back cover/pad in the reverse order of removal (see FRONT SEAT-BACK COVER REPLACEMENT ).
  4. Install the front seat back panel (see FRONT SEAT-BACK COVER REPLACEMENT ).
  5. Install the front passenger's seat (see FRONT SEAT REMOVAL/INSTALLATION ).
  6. Do the battery terminal reconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
  7. Set the seat-back in the normal position, and make sure there is nothing on the front passenger's seat.
  8. Clear any DTCs with the HDS (see HOW TO CLEAR DTCS  ).
  9. Do the ODS unit initialization (see ODS UNIT INITIALIZATION  ).
  10. Confirm proper SRS operation: Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.
