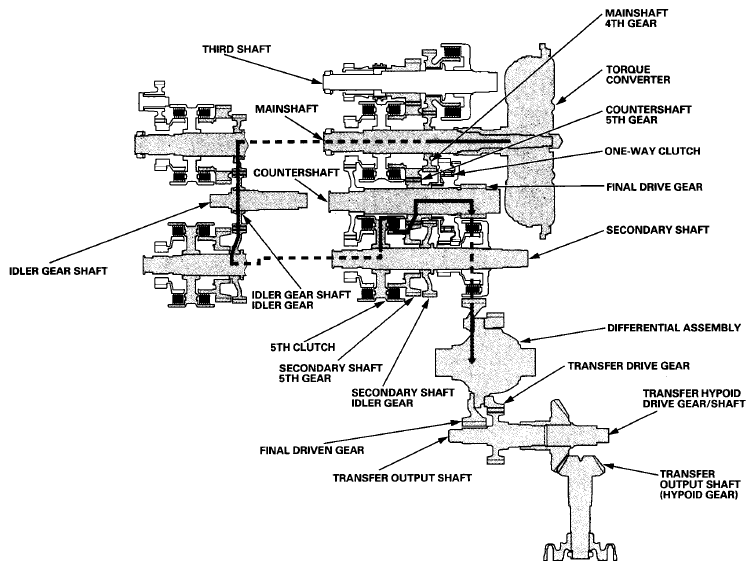

In 5th gear
- Hydraulic pressure is applied to the 5th clutch, then the 5th clutch engages the secondary shaft 5th gear with the secondary shaft.
- Mainshaft rotation is transmitted to the mainshaft 4th gear splined with the mainshaft.
- The mainshaft 4th gear drives the secondary shaft idler gear splined with the secondary shaft and the secondary shaft via the idler gear shaft idler gear.
- The secondary shaft and the secondary shaft 5th gear engaged by the 5th clutch, and the secondary shaft 5th gear drives the countershaft 5th gear splined with the countershaft and the countershaft.
- With SH-AWD: Power is transmitted from the countershaft to the final drive gear, which in turn drives the final driven gear and the transfer drive gear.
- Power is transmitted to the final drive gear, which in turn drives the final driven gear and the differential.
- With SH-AWD: As the final driven gear turns the differential assembly, power is transmitted through the transfer drive gear to the transfer output shaft that drives the transfer hypoid drive gear/shaft and the transfer output shaft (hypoid gear).
- Hydraulic pressure is also applied to the 1st clutch, but since the rotation speed of the countershaft exceeds that of 1st gear, power output from 1st gear is cut off at the one-way clutch.
NOTE:
This illustration shows the SH-AWD transfer assembly that is not available on all models.
