Acura
›
2012
›
TL SH-AWD, Automatic Trans
›
Repair and Diagnosis
›
Brakes
›
Traction Control
›
VSA System Components
›
Circuit Diagram
›
Without SH-AWD
Without SH-AWD

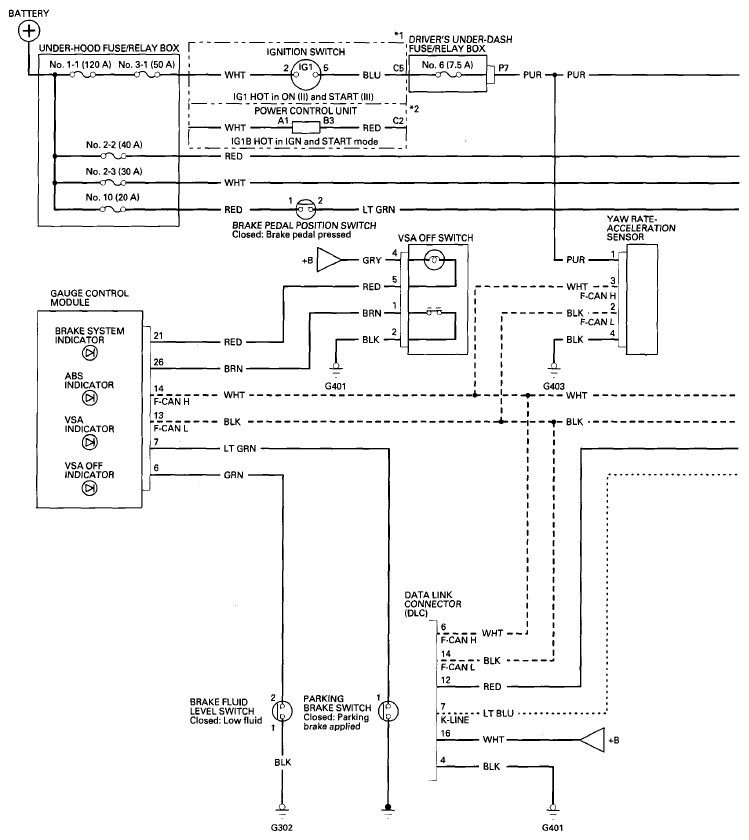

Fig 1: VSA System (Without SH-AWD) - Circuit Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

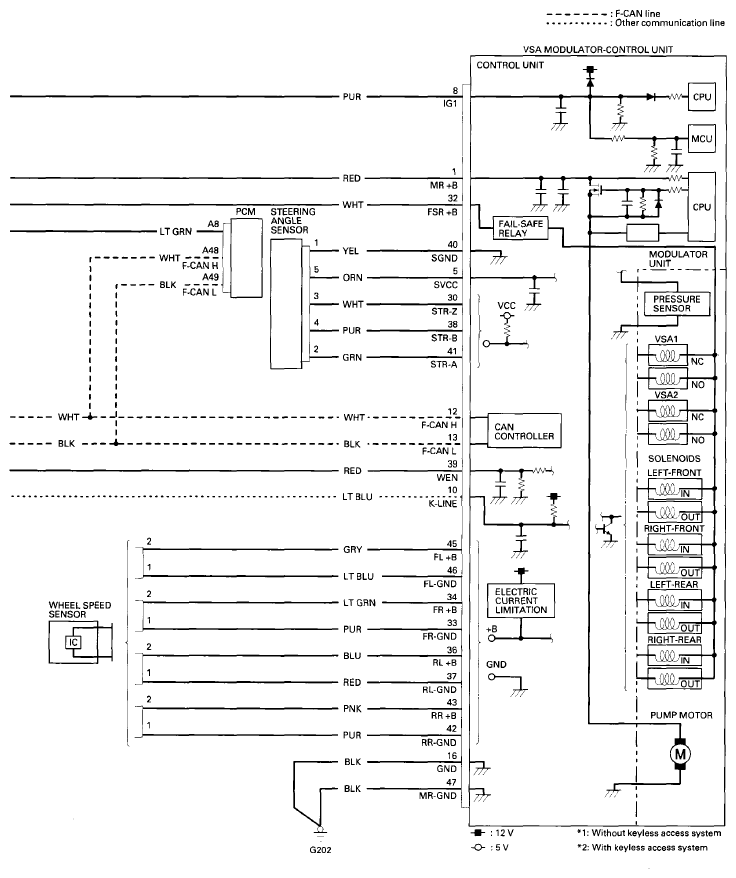

Fig 2: VSA System (Without SH-AWD) - Circuit Diagram (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
