Acura
›
2012
›
ZDX
›
Repair and Diagnosis
›
Accessories & Equipment
›
Entertainment Systems
›
Audio System
›
System Description
›
Without Navigation
Without Navigation

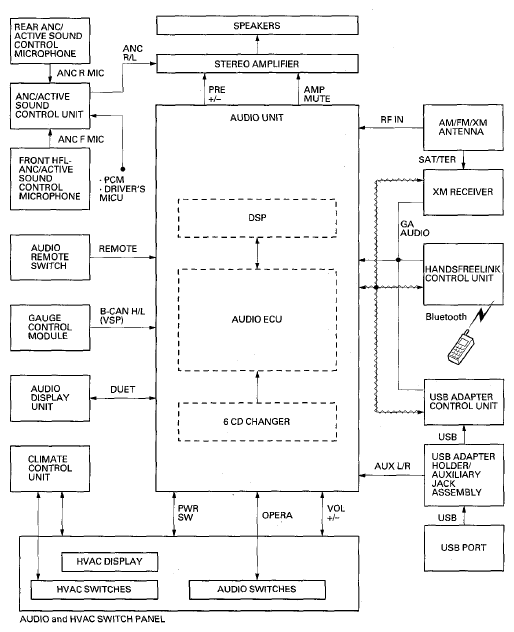

Fig 1: Audio Unit Circuit Diagram (Without Navigation)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
