HANDSFREELINK System
›
Component Location Index
›
With Navigation
With Navigation

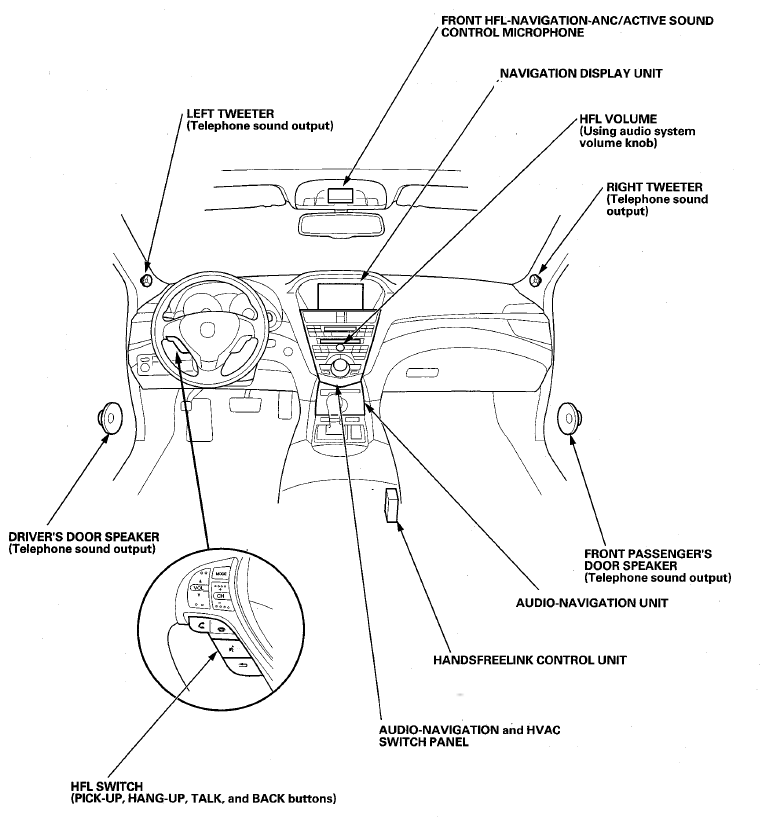

Fig 1: Identifying HandsFreeLink System Components Location (With Navigation)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

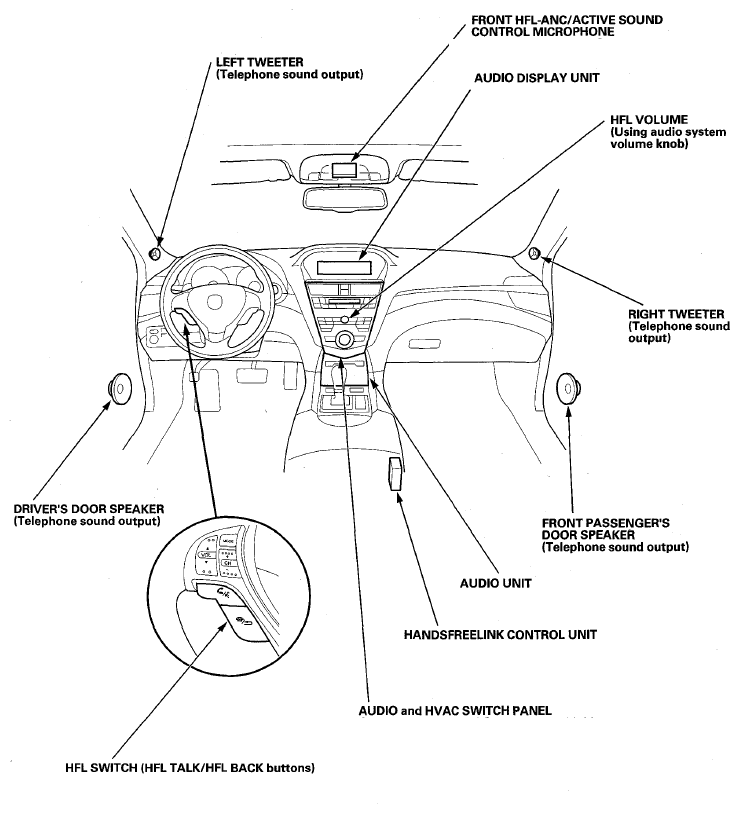

Fig 1: Identifying HandsFreeLink System Components Location (Without Navigation)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
