Keyless/Power Door Locks/Security System
›
Circuit Diagram
Circuit Diagram

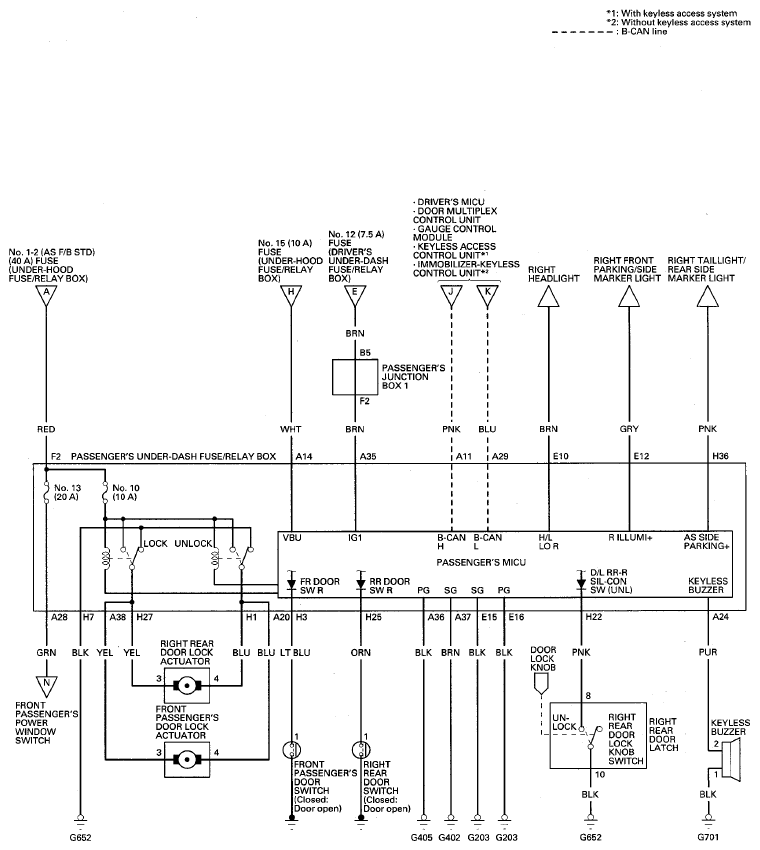

Fig 1: Keyless/Power Door Locks/Security System - Circuit Diagram (1 Of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

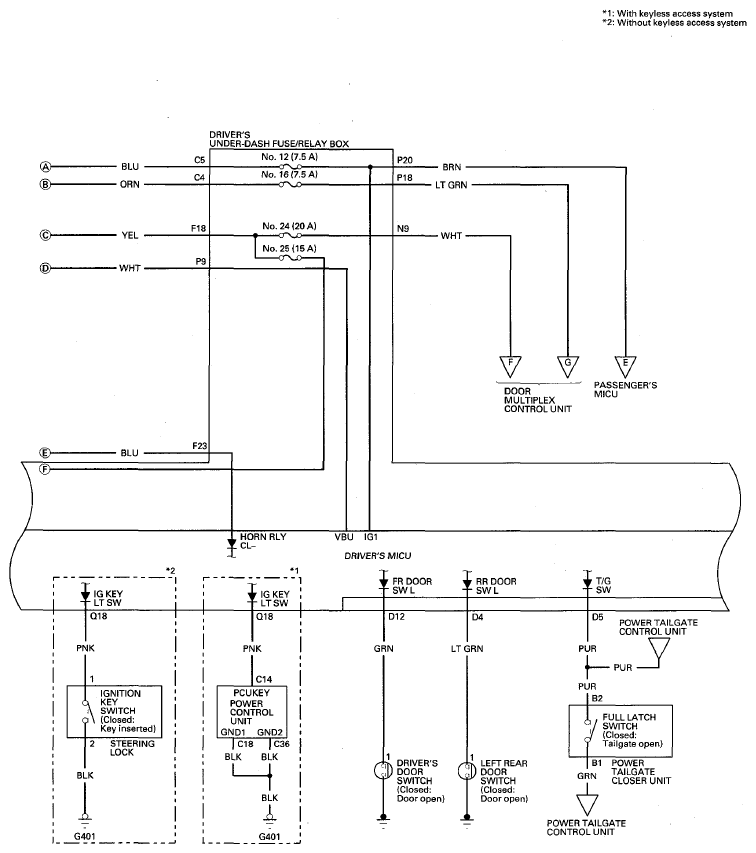

Fig 2: Keyless/Power Door Locks/Security System - Circuit Diagram (2 Of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

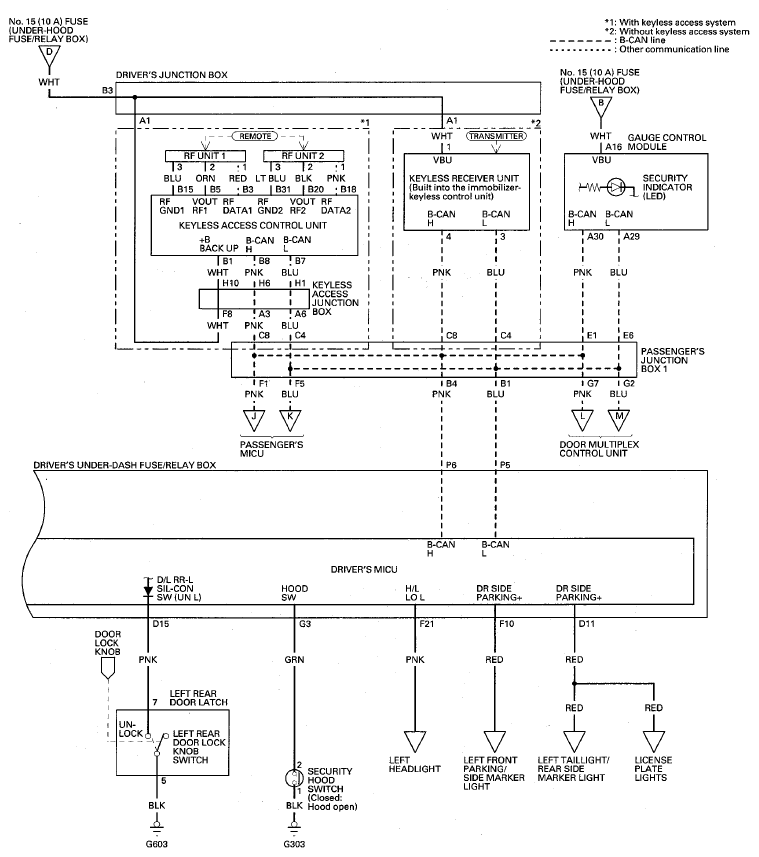

Fig 3: Keyless/Power Door Locks/Security System - Circuit Diagram (3 Of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

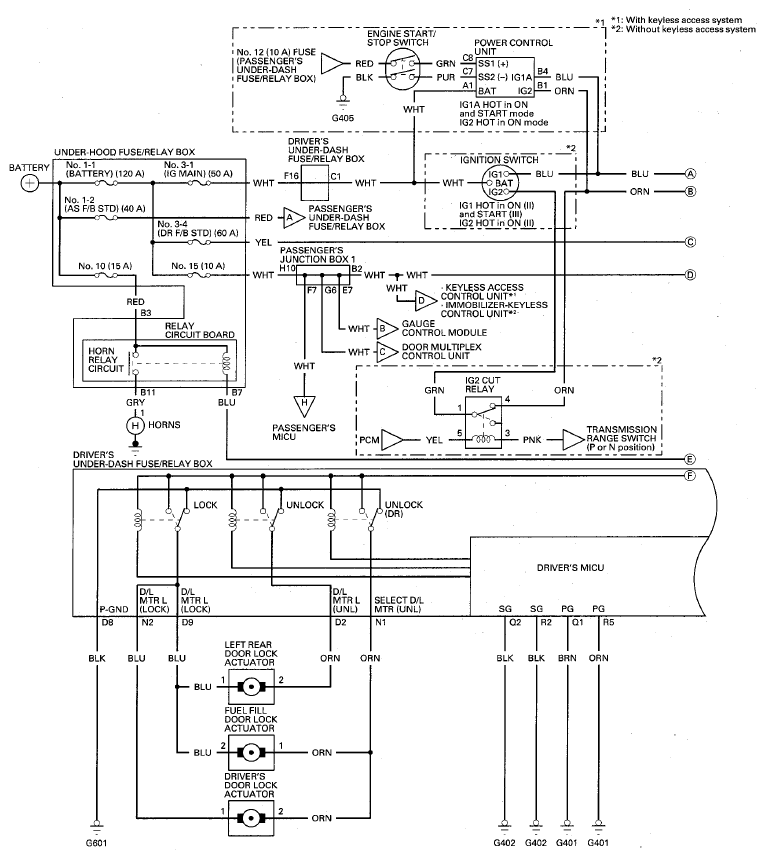

Fig 4: Keyless/Power Door Locks/Security System - Circuit Diagram (4 Of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

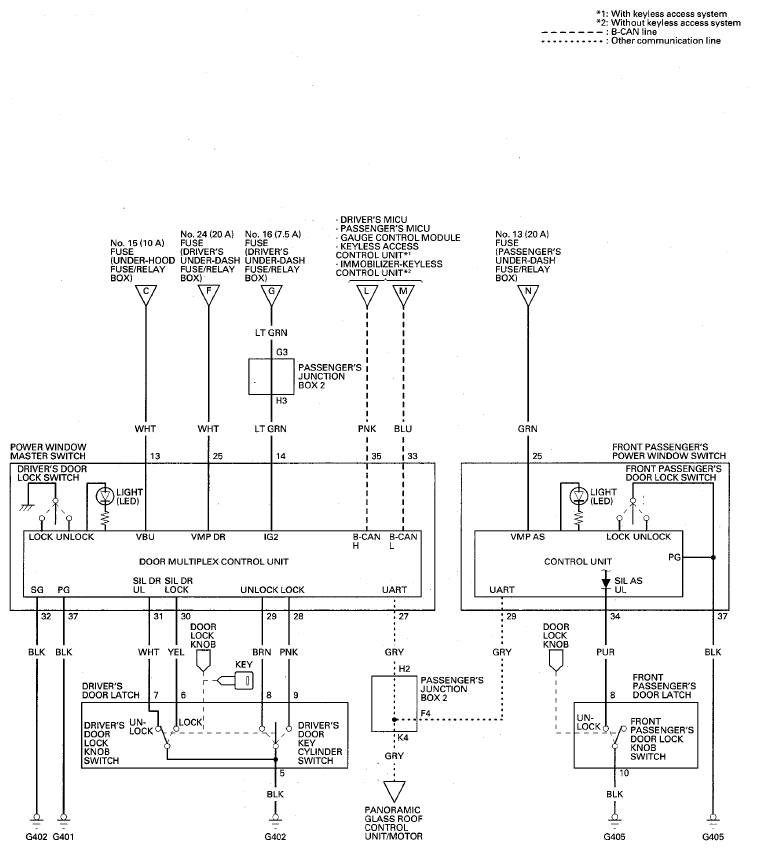

Fig 5: Keyless/Power Door Locks/Security System - Circuit Diagram (5 Of 5)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
