Switch Test/Replacement

Remove the center console panel (see CENTER CONSOLE PANEL REMOVAL/INSTALLATION ).
Disconnect the 16P [12P] connector from the seat ventilation switch (A).
[]: Front passenger's seat ventilation switch

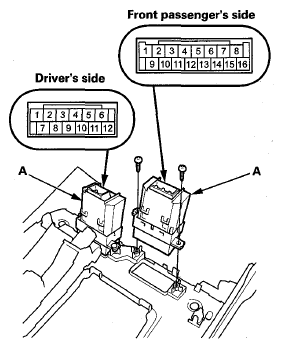

Fig 1: Identifying Seat Ventilation Switch 16P (12P) Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the two screws and the switch.
Check for continuity between the terminals in each switch position according to the table.
NOTE:
- Make sure the correct test lead (+ or -) is placed on the terminal.
- When checking for continuity across the diode, use the diode setting (→|-) on the digital volt/ohm meter to check the diode bias.
- Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

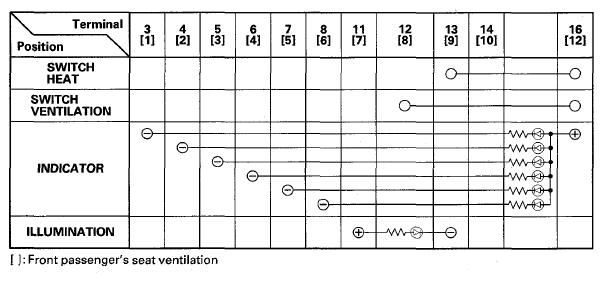

  Fig 2: Seat Ventilation Switch Terminals Continuity Chart
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity check is not as specified, replace the seat ventilation switch.
Install the parts in the reverse order of removal.
