Component Location Index

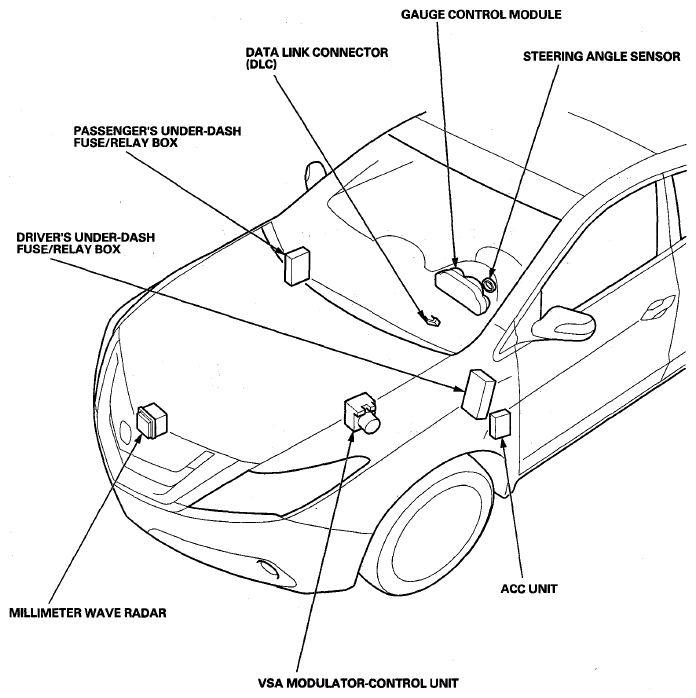

Fig 1: Identifying Collision Mitigation Braking System Component Locations (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

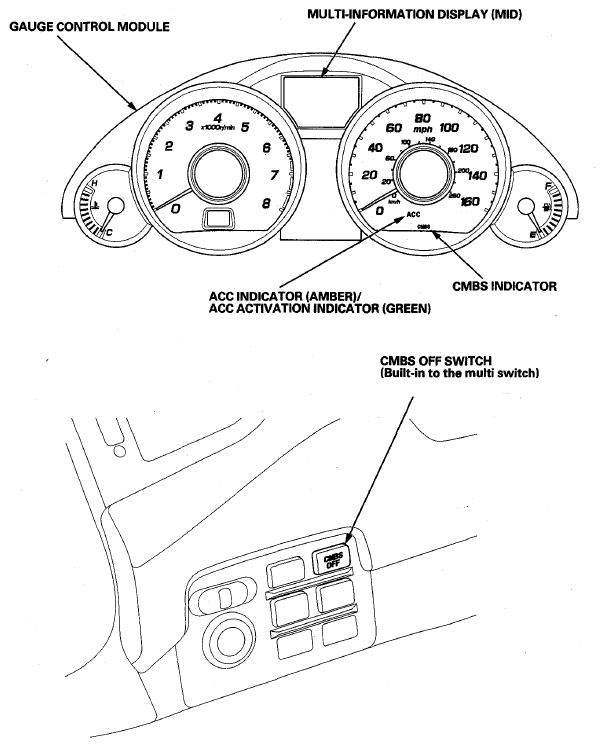

Fig 2: Identifying Collision Mitigation Braking System Component Locations (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
