Circuit Diagram
›
Without Keyless Access System
Without Keyless Access System

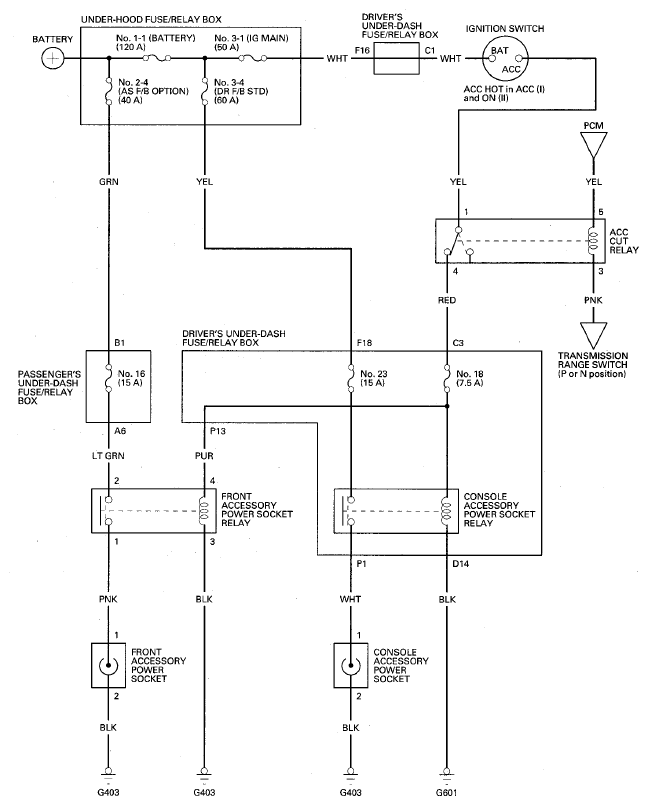

Fig 1: Accessory Power Sockets Circuit Diagram (Without Keyless Access System)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
