Audio System: Navigation

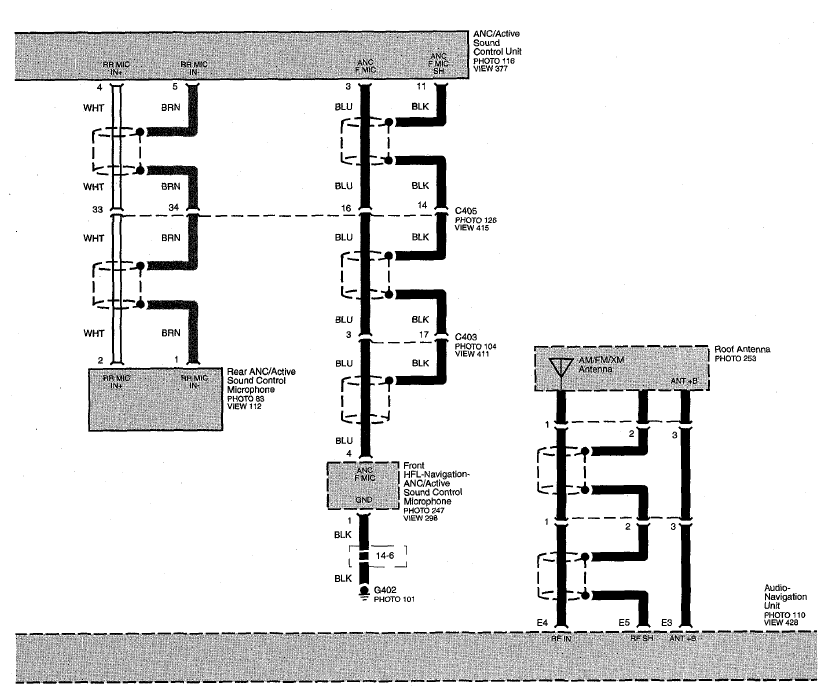

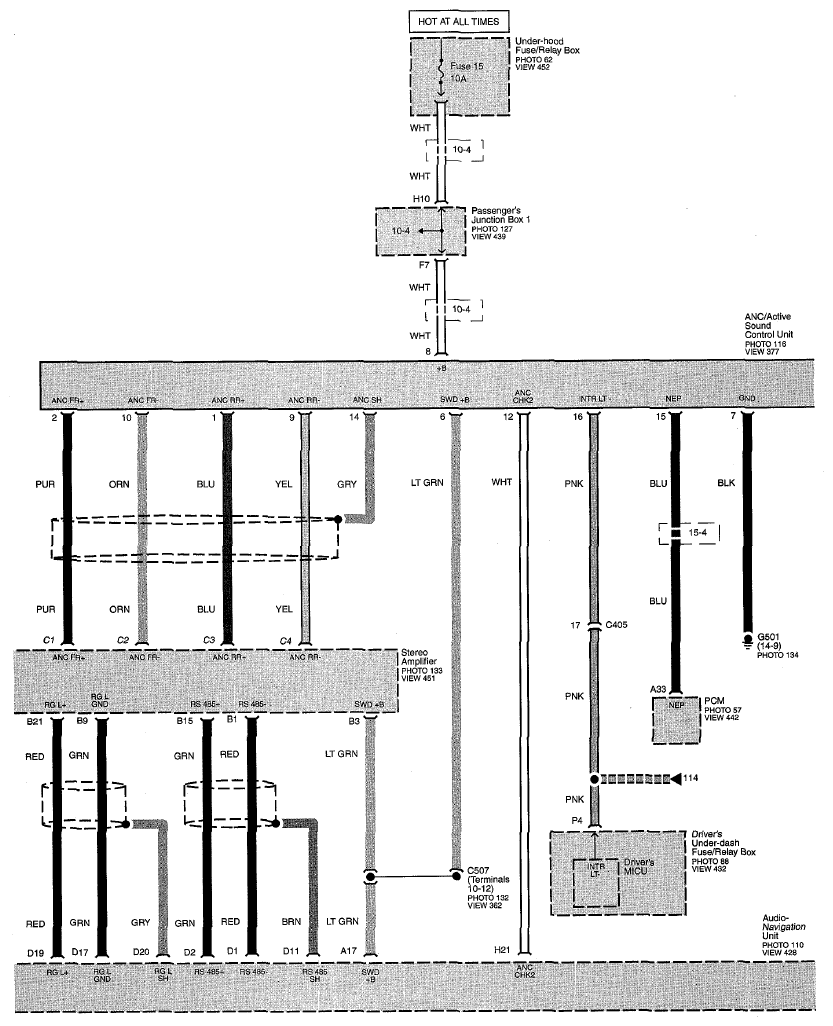

Fig 1: Audio System Circuit Diagram - Navigation (Page 150-10)

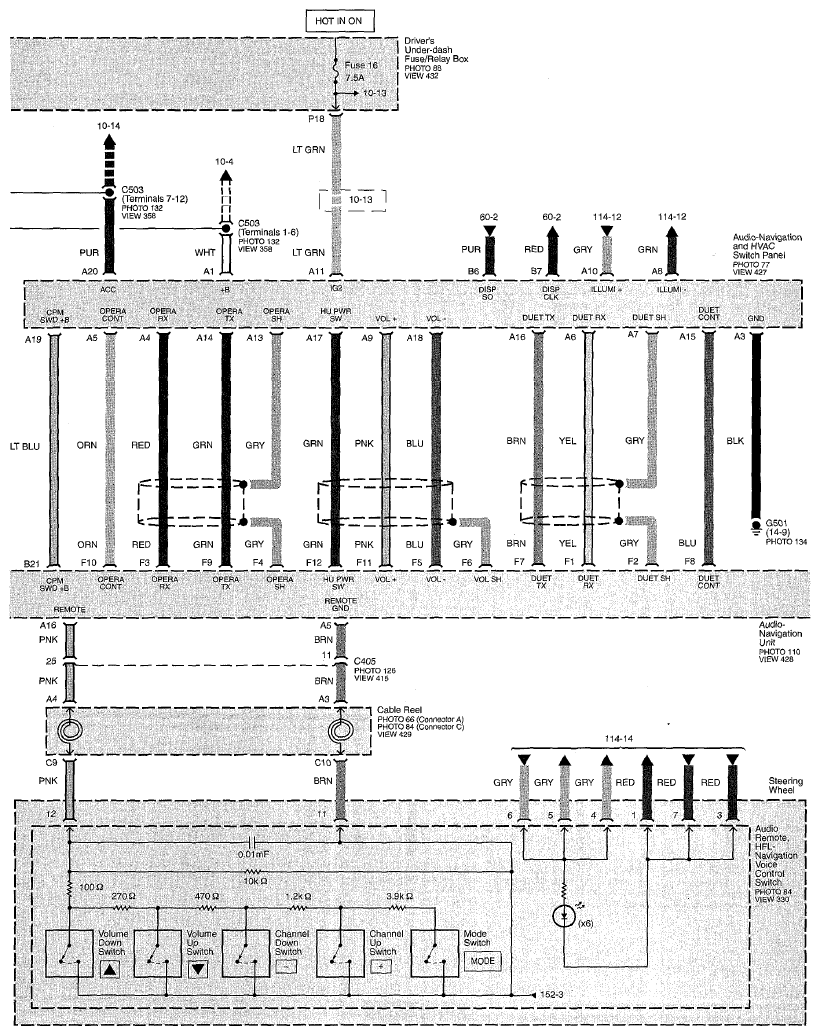

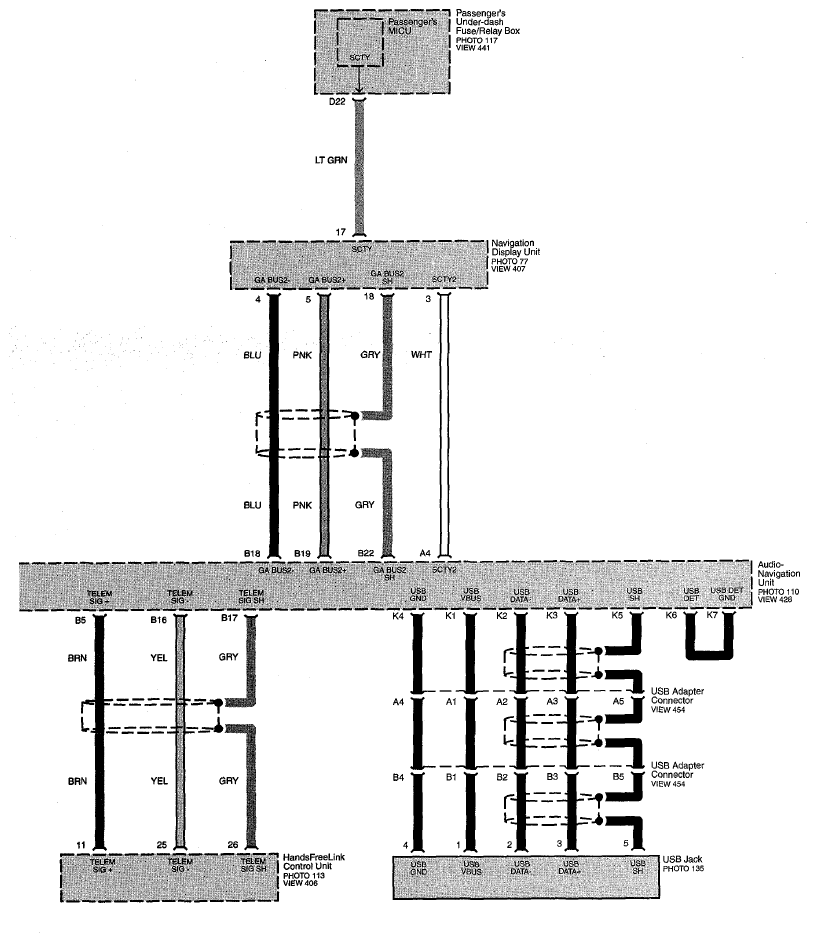

Fig 2: Audio System Circuit Diagram - Navigation (Page 150-11)

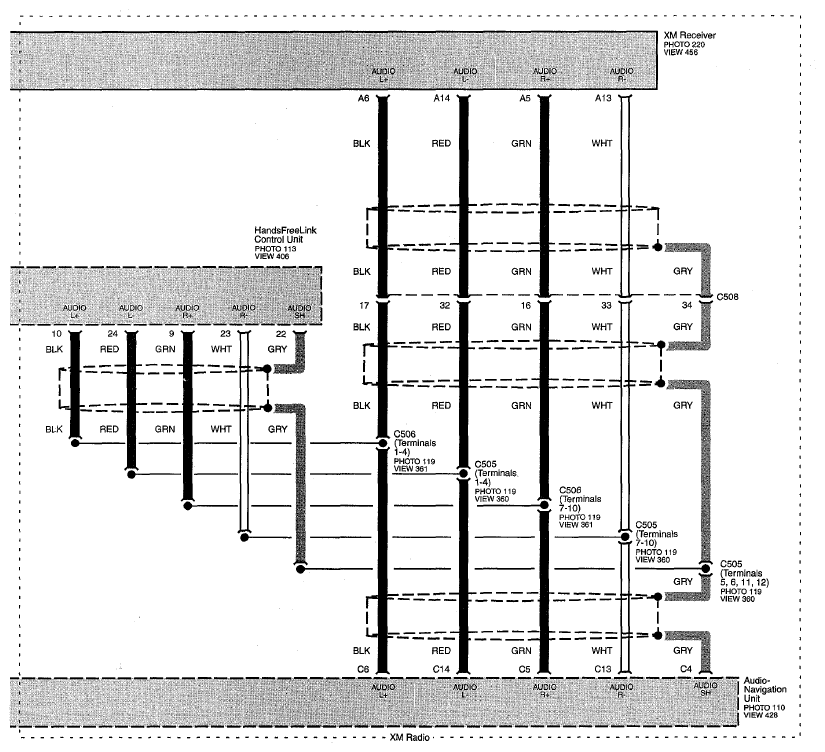

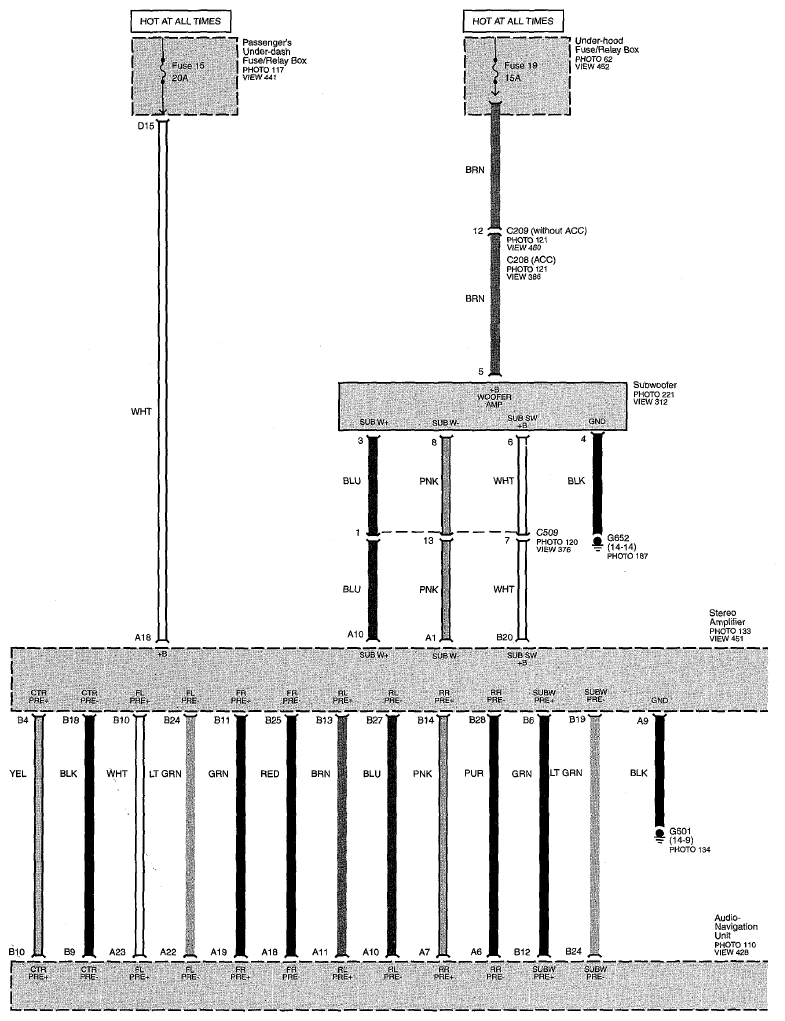

Fig 3: Audio System Circuit Diagram - Navigation (Page 150-12)

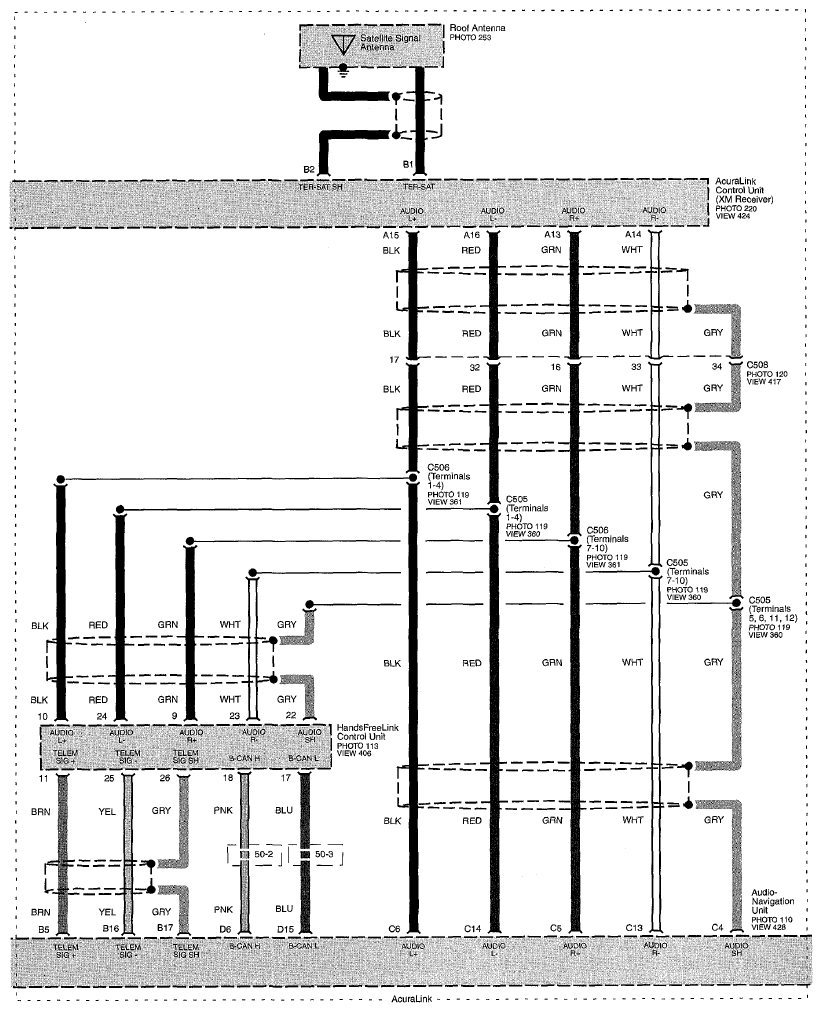

Fig 4: Audio System Circuit Diagram - Navigation (Page 150-13)

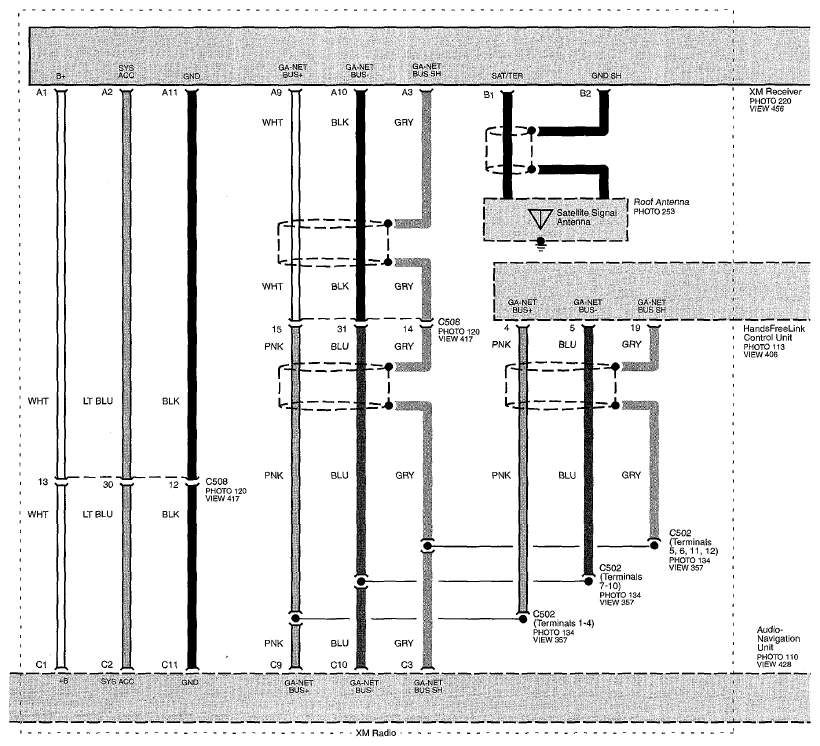

Fig 5: Audio System Circuit Diagram - Navigation (Page 150-14)

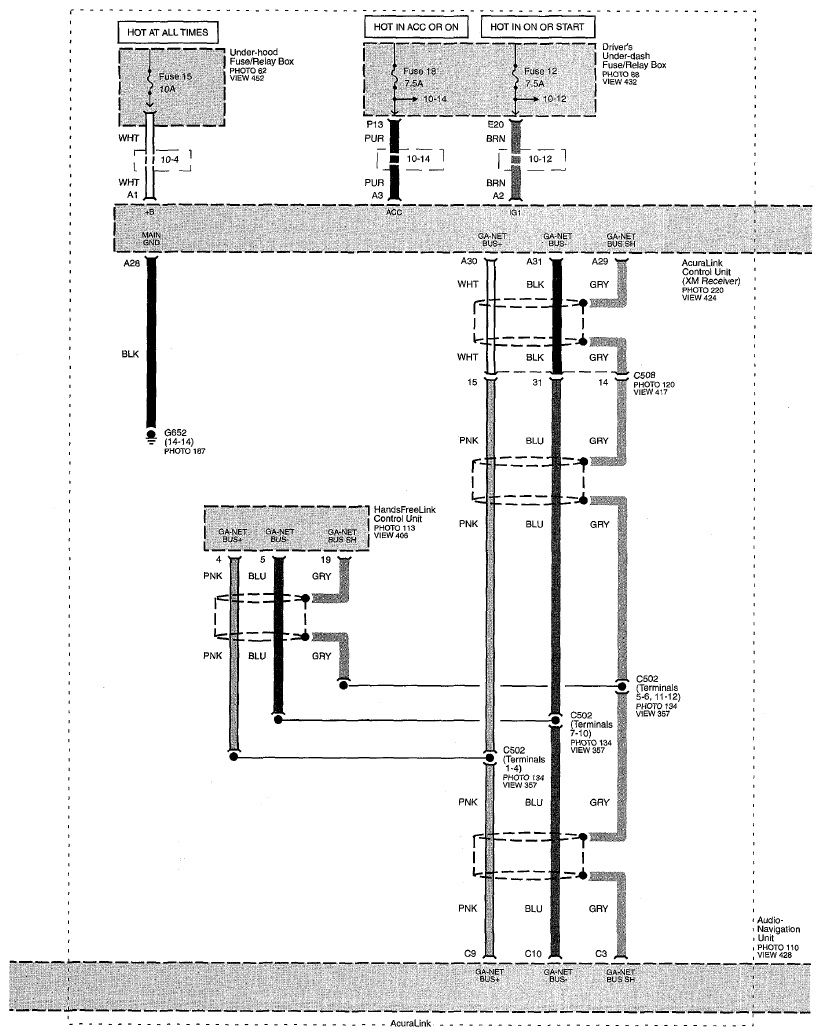

Fig 6: Audio System Circuit Diagram - Navigation (Page 150-15)

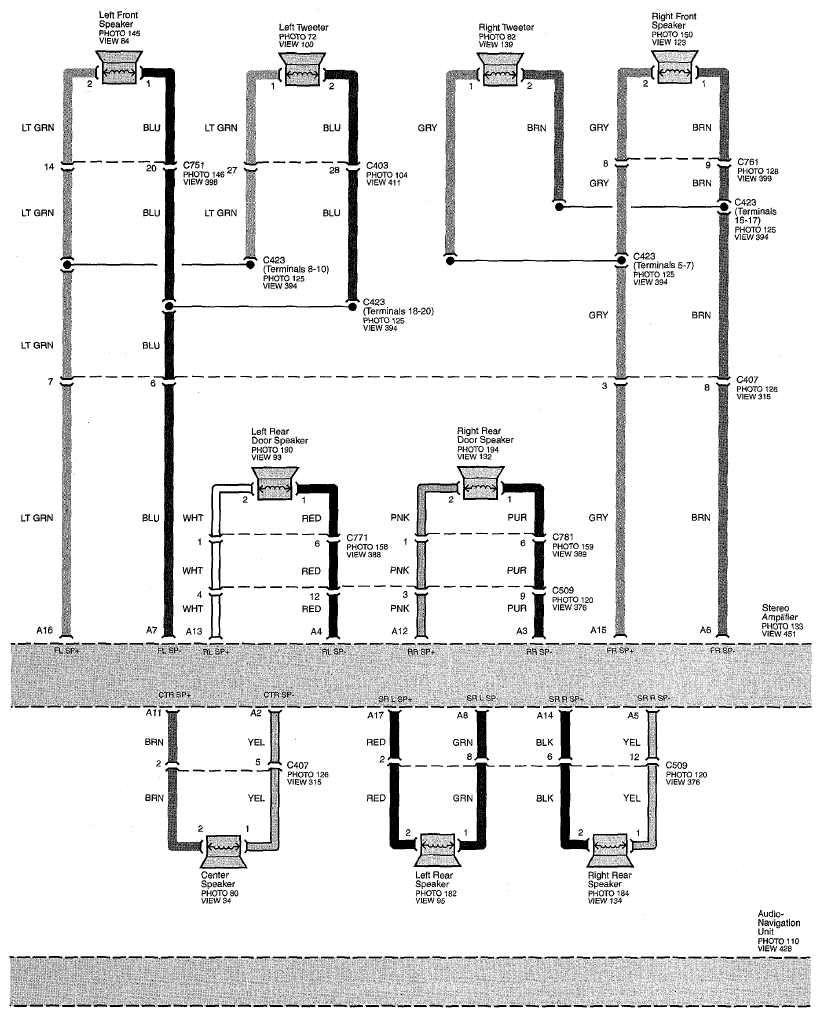

Fig 7: Audio System Circuit Diagram - Navigation (Page 150-16)

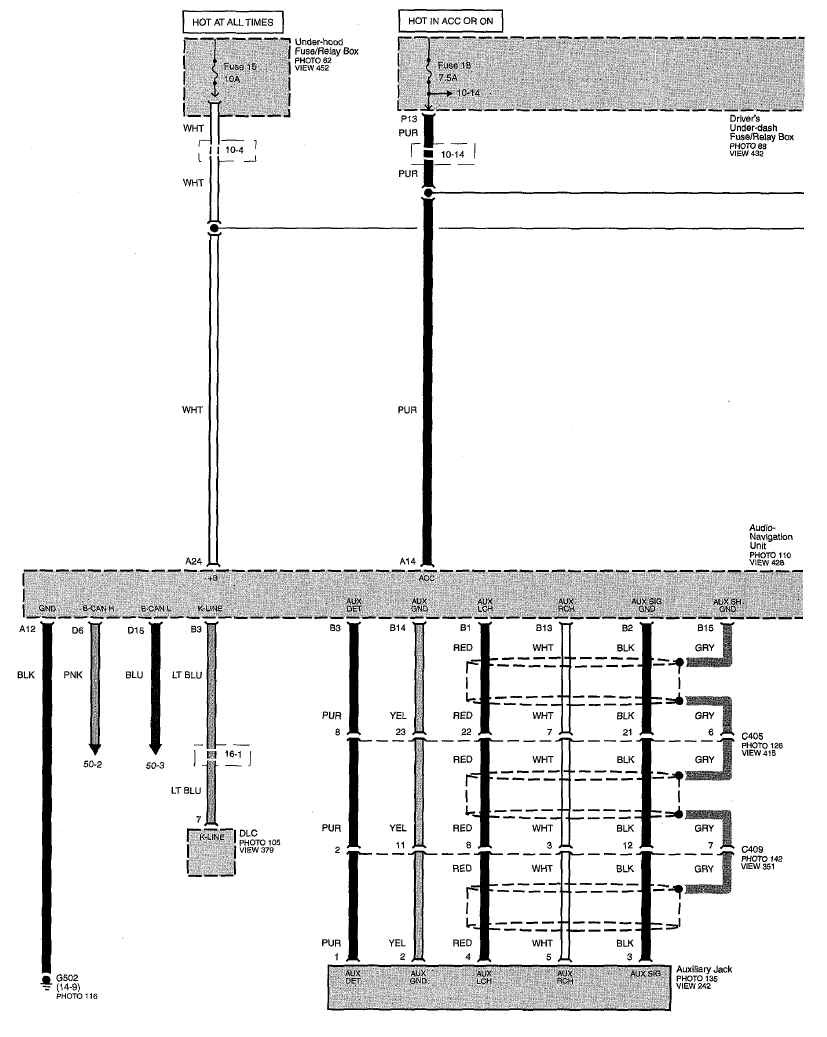

Fig 8: Audio System Circuit Diagram - Navigation (Page 150-17)

Fig 9: Audio System Circuit Diagram - Navigation (Page 150-18)

Fig 10: Audio System Circuit Diagram - Navigation (Page 150-19)

Fig 11: Audio System Circuit Diagram - Navigation (Page 150-20)
