Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM Circuit Diagrams
›
Immobilizer System
›
without Keyless Access
without Keyless Access

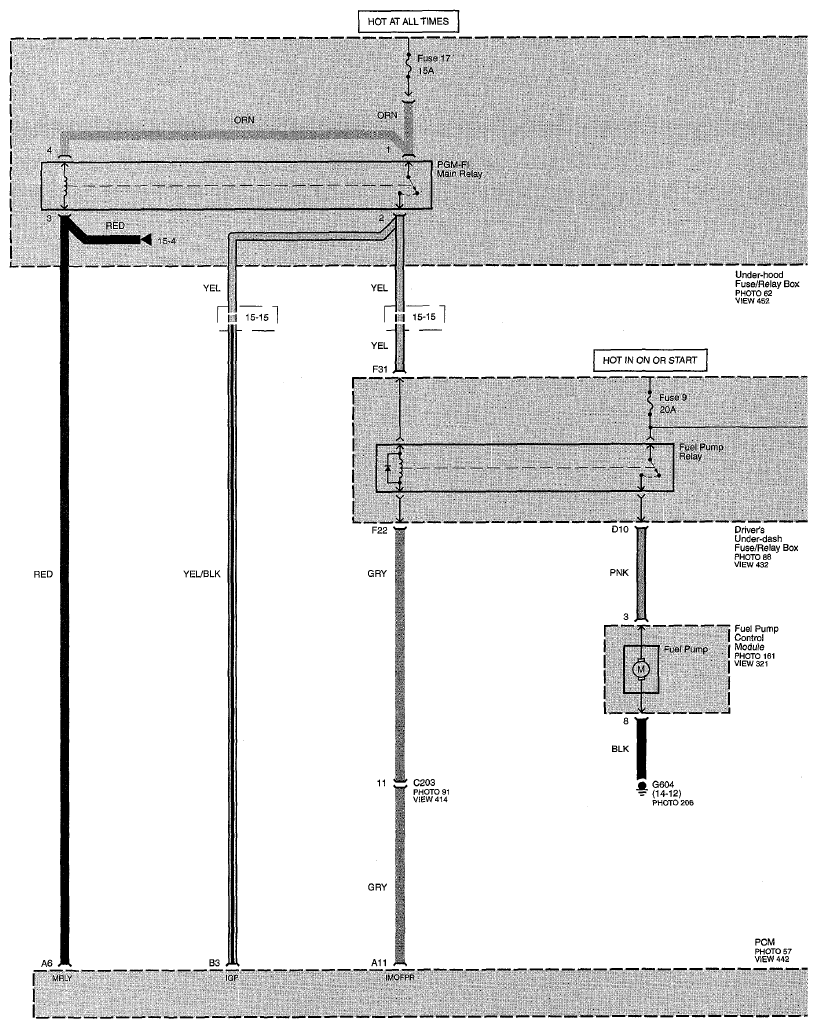

Fig 1: Immobilizer System Circuit Diagram - Without Keyless Access (Page 132)

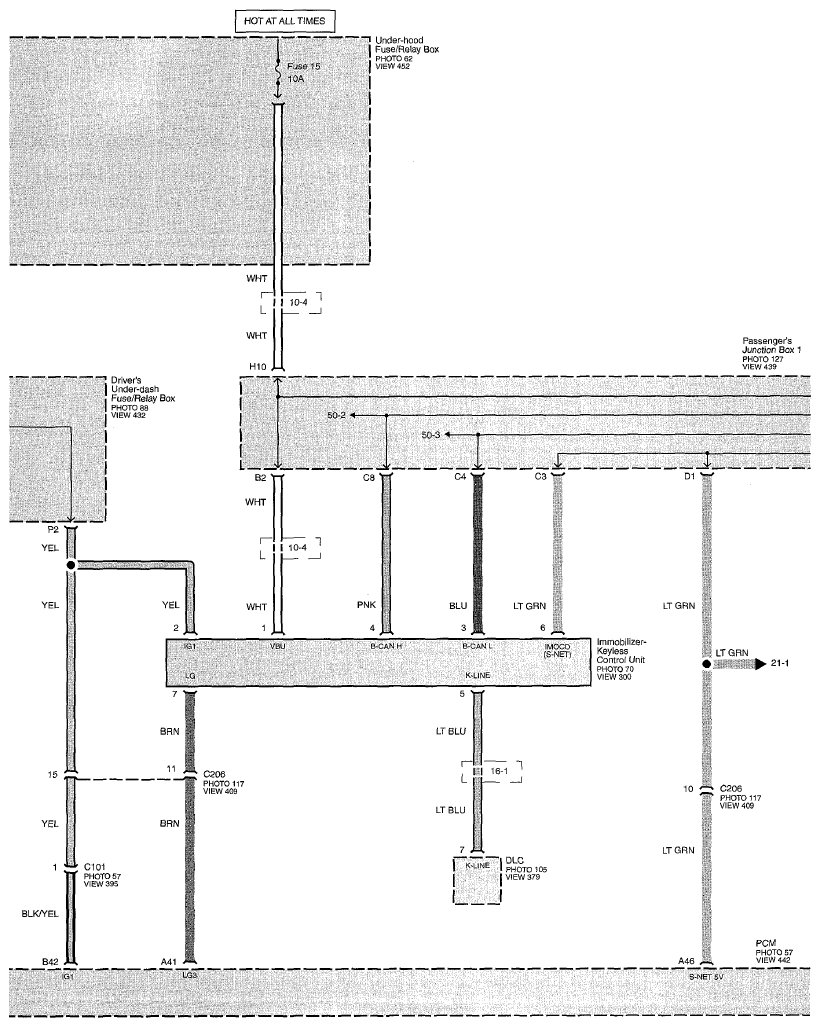

Fig 2: Immobilizer System Circuit Diagram - Without Keyless Access (Page 132-1)

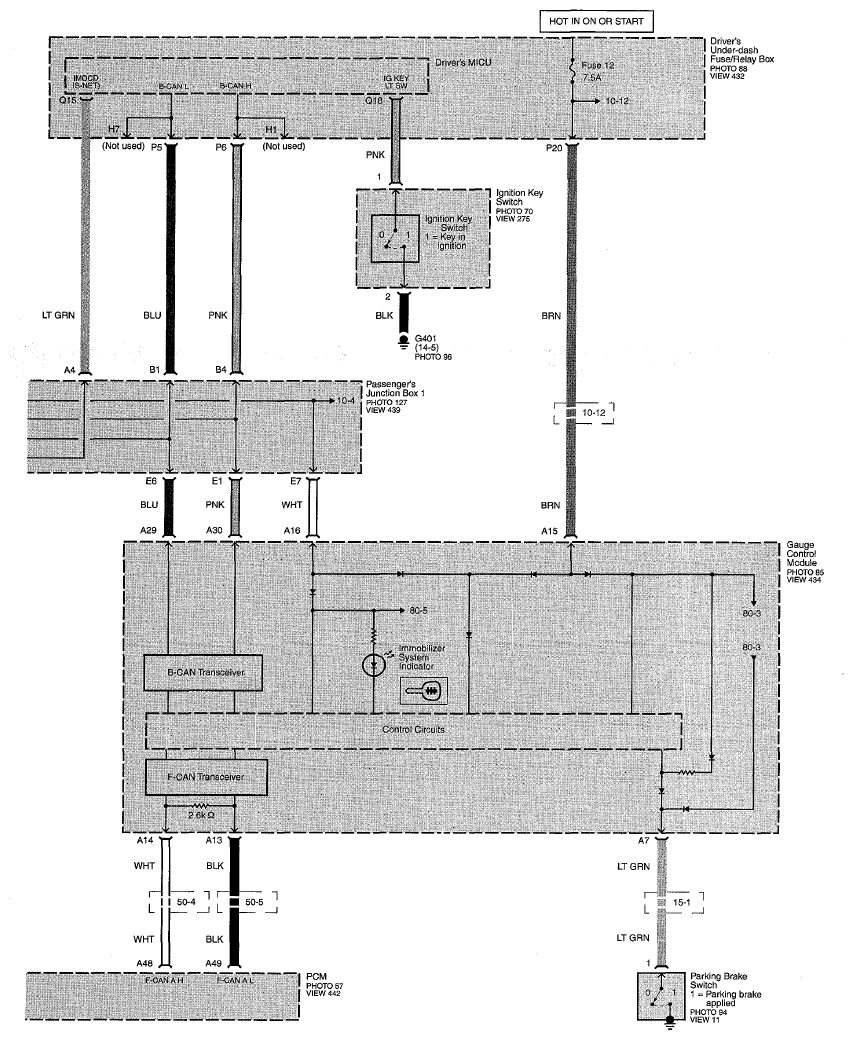

Fig 3: Immobilizer System Circuit Diagram - Without Keyless Access (Page 132-2)
