Keyless Access System

NOTE: For connector or component location "PHOTO", see OEM COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR END VIEWS .

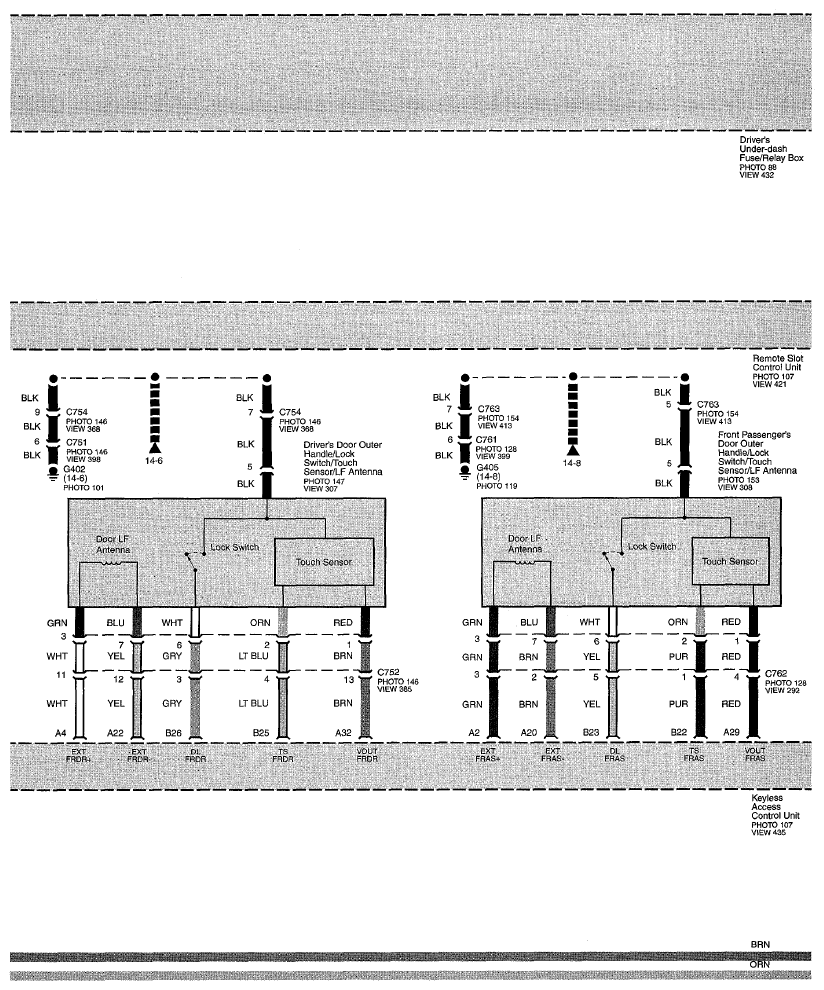

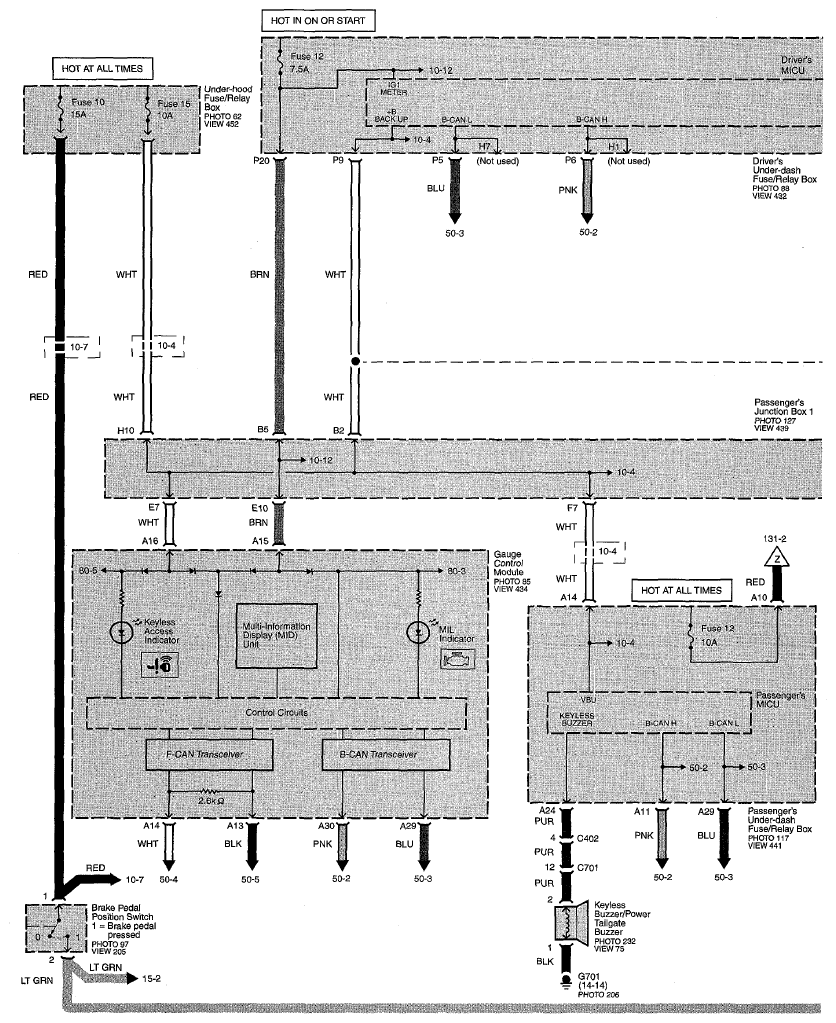

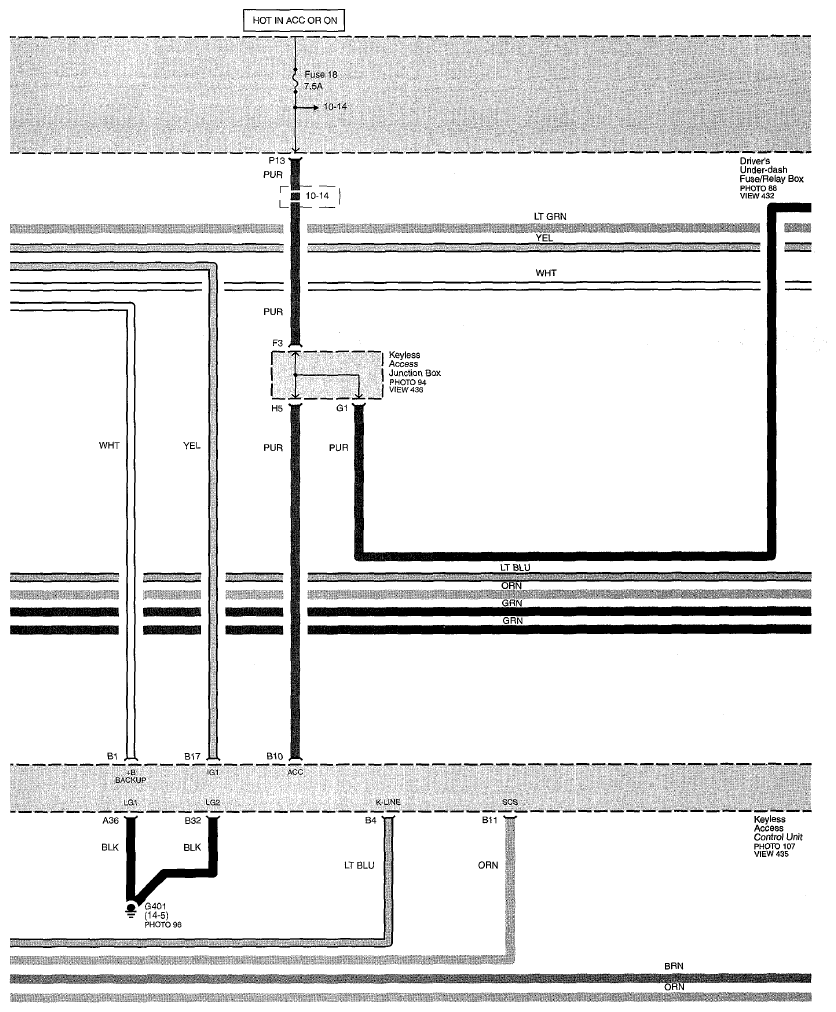

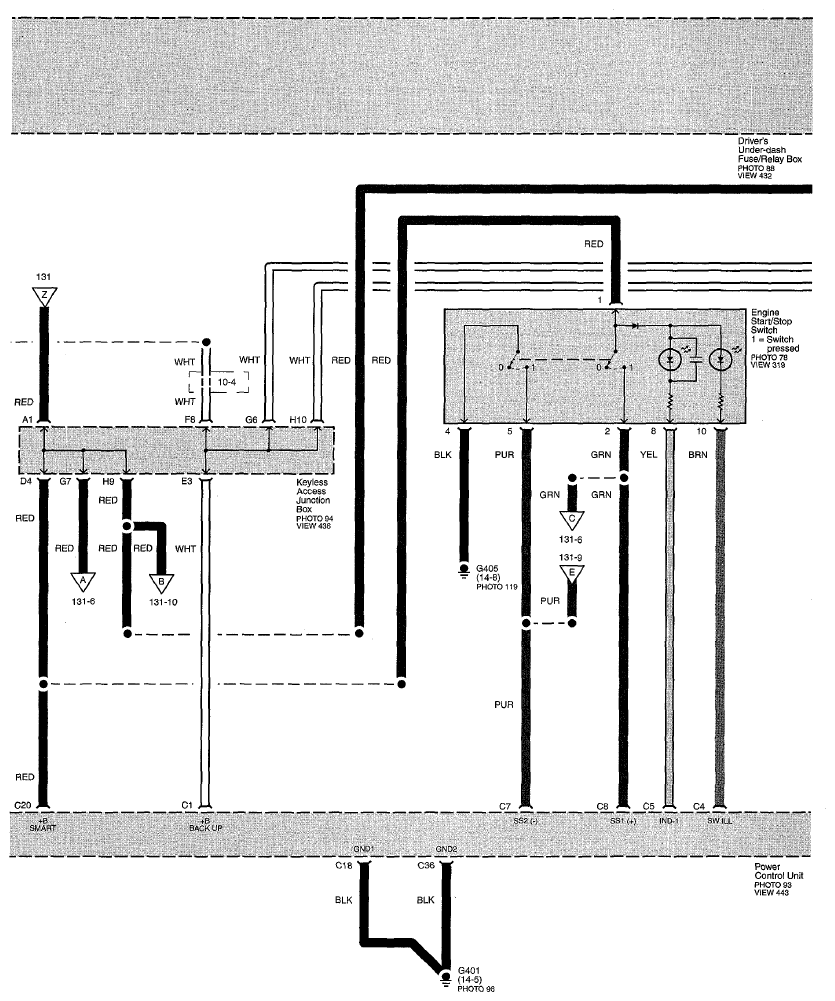

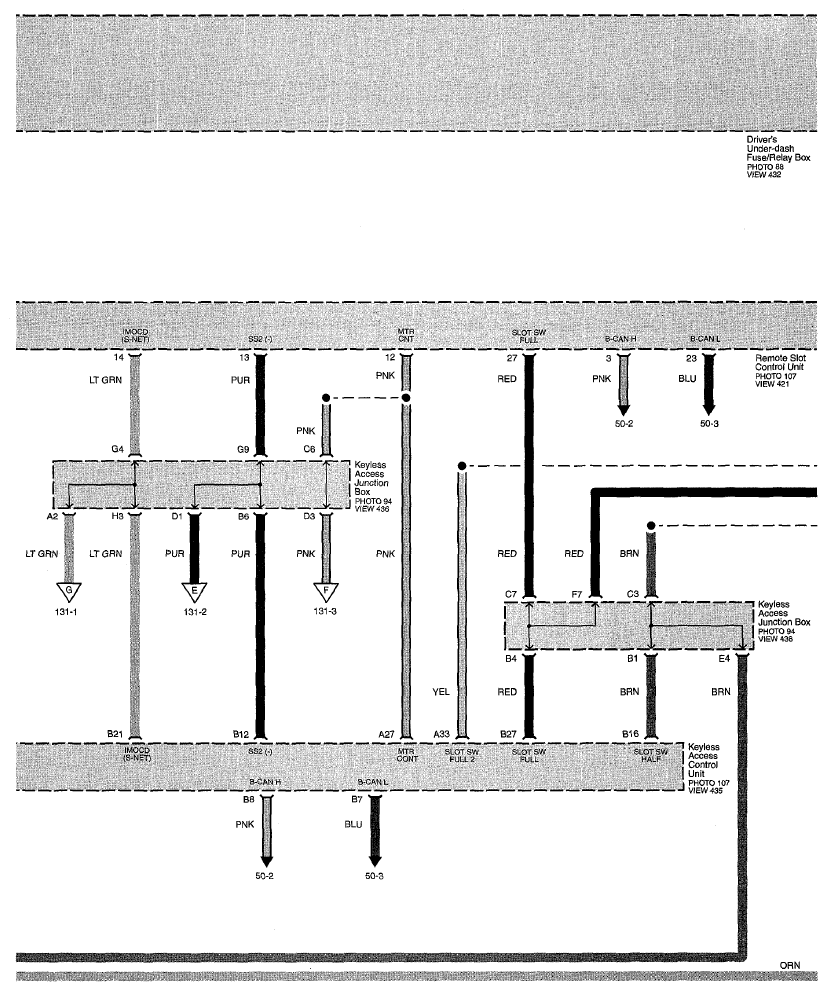

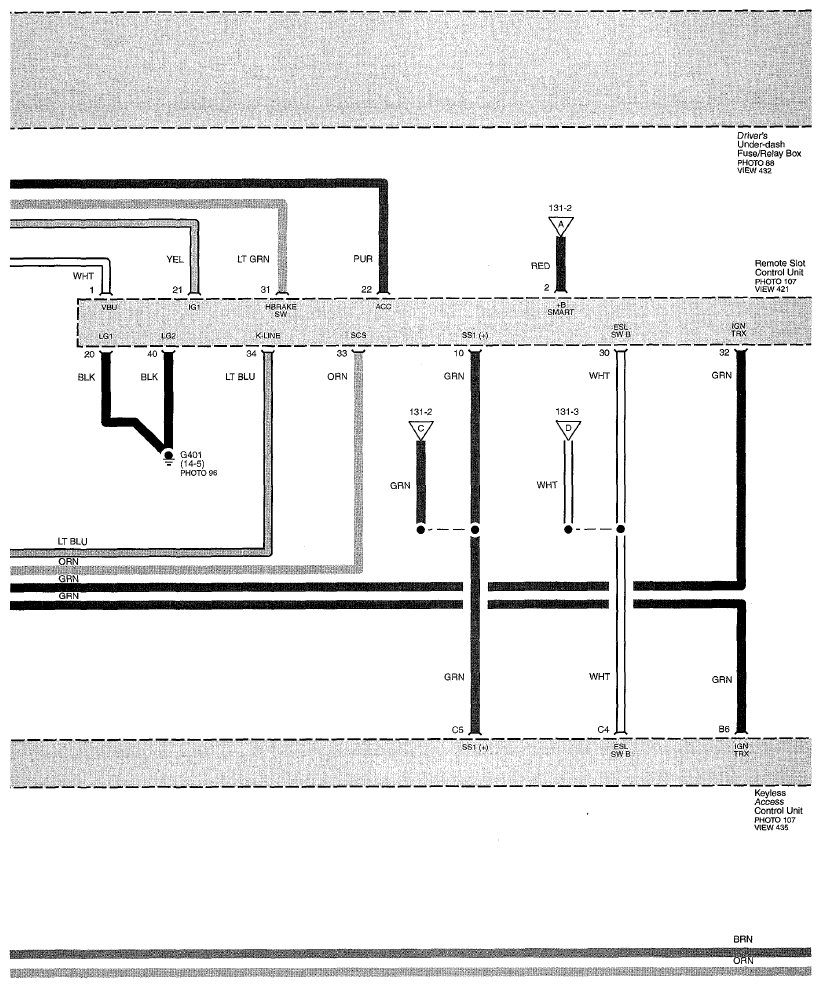

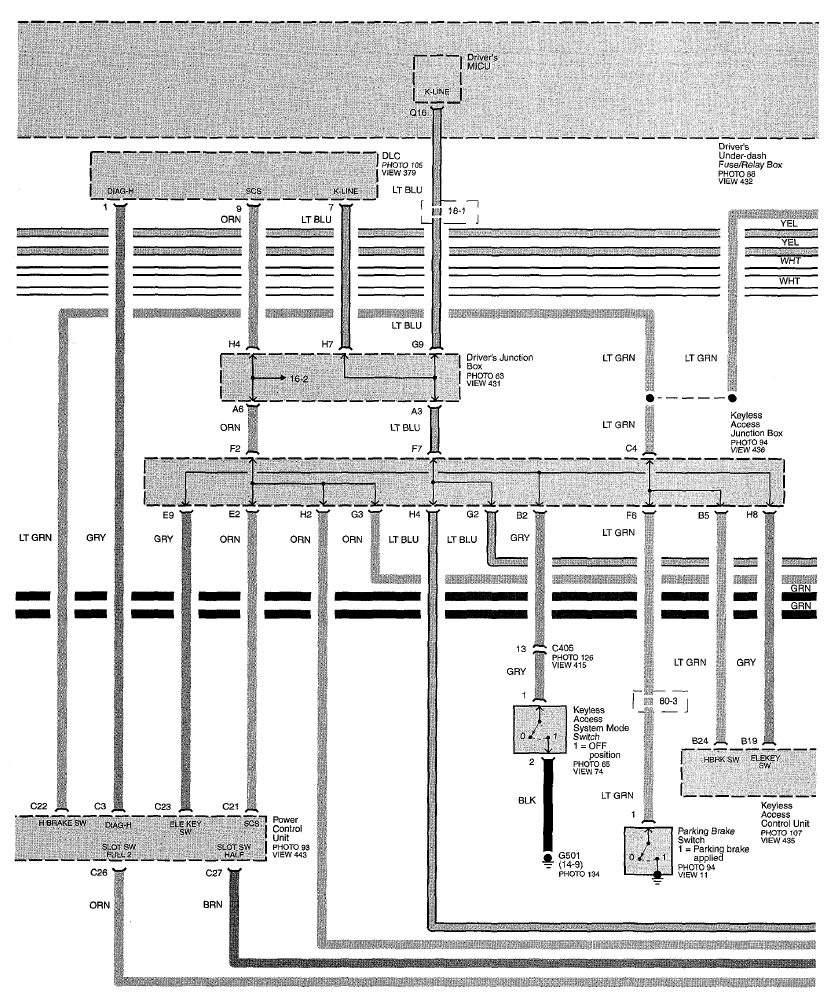

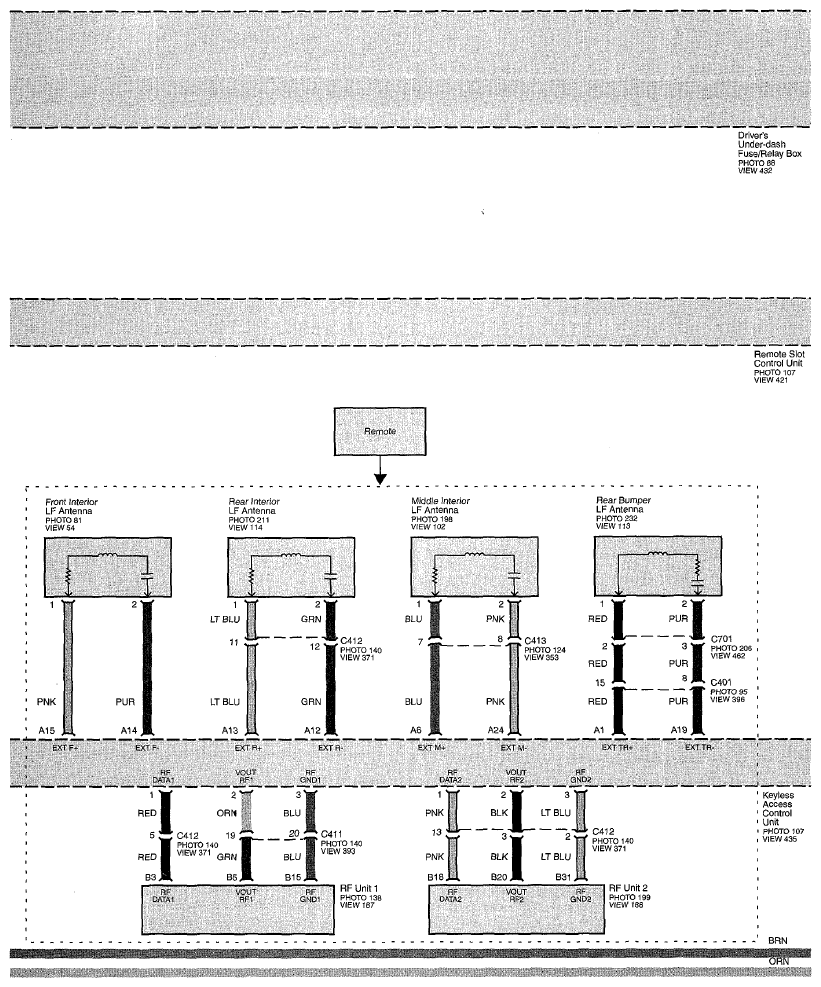

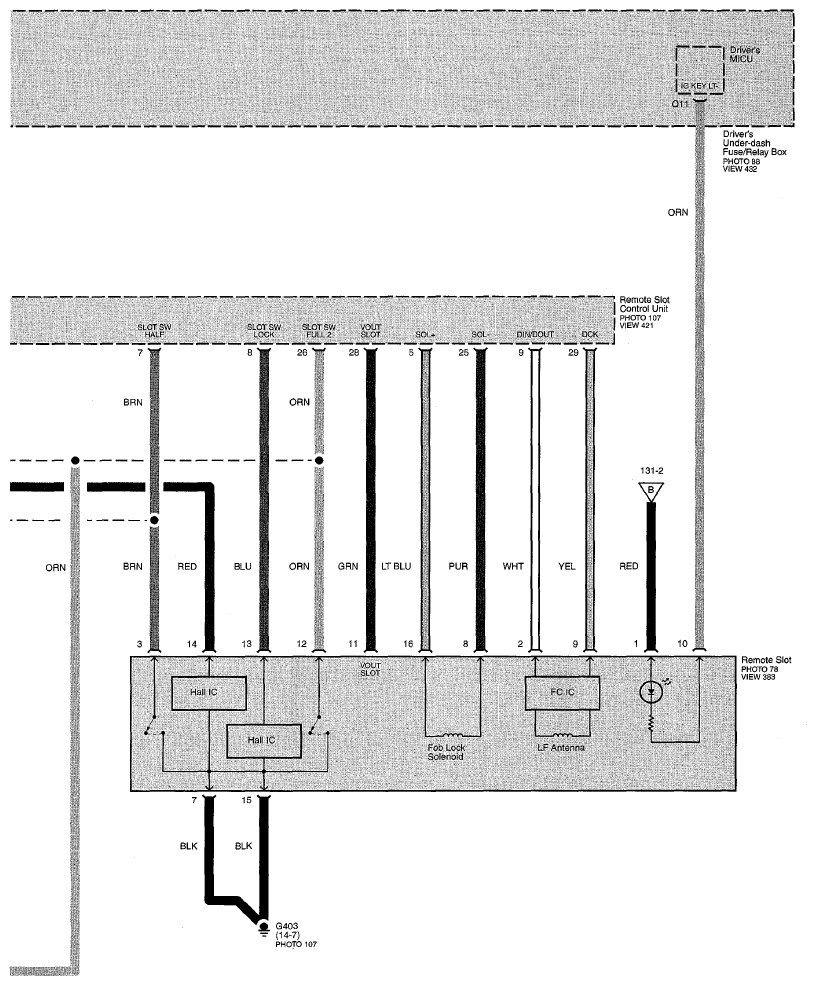

Fig 1: Keyless Access System Circuit Diagram (Page 131)

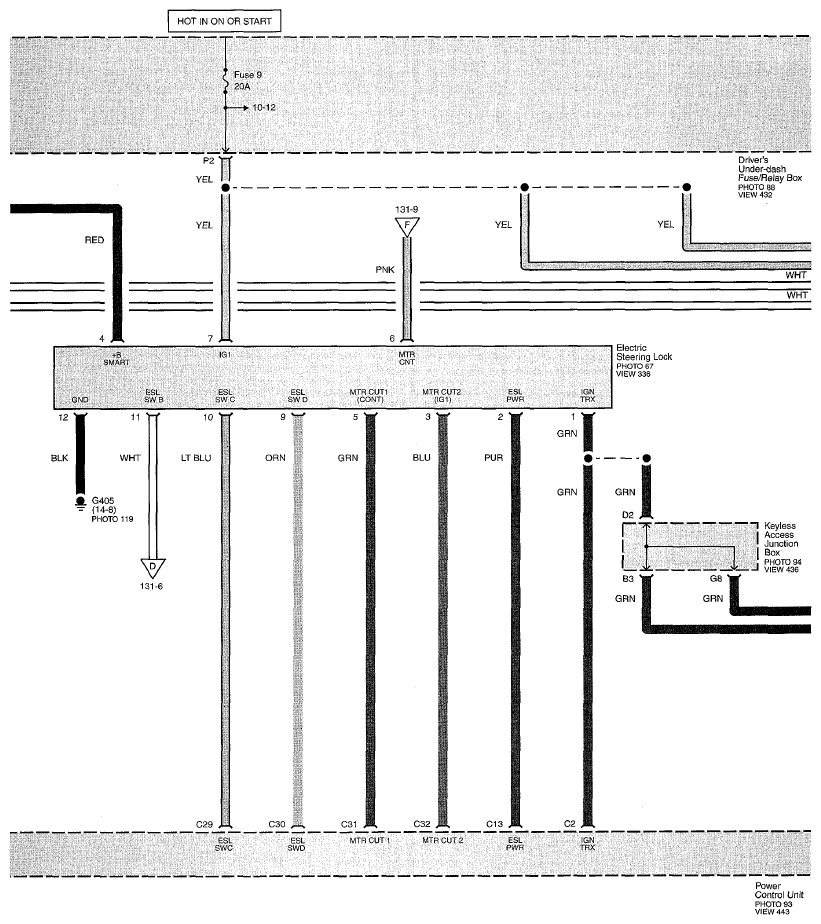

Fig 2: Keyless Access System Circuit Diagram (Page 131-1)

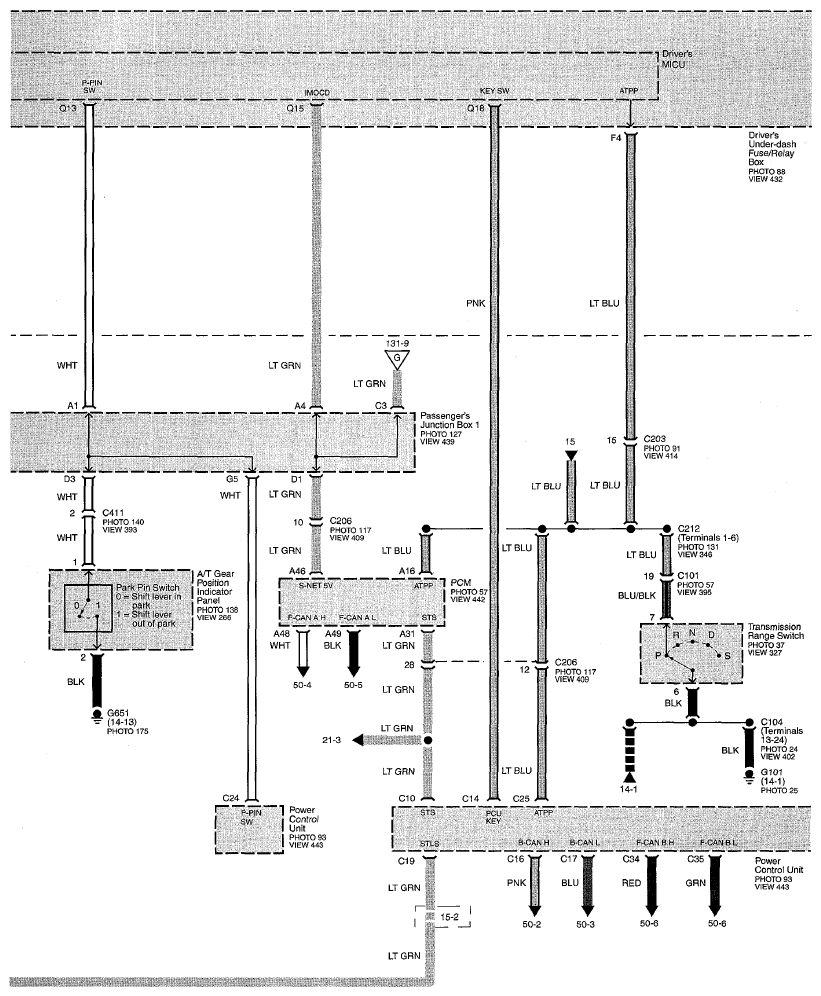

Fig 3: Keyless Access System Circuit Diagram (Page 131-2)

Fig 4: Keyless Access System Circuit Diagram (Page 131-3)

Fig 5: Keyless Access System Circuit Diagram (Page 131-4)

Fig 6: Keyless Access System Circuit Diagram (Page 131-5)

Fig 7: Keyless Access System Circuit Diagram (Page 131-6)

Fig 8: Keyless Access System Circuit Diagram (Page 131-7)

Fig 9: Keyless Access System Circuit Diagram (Page 131-8)

Fig 10: Keyless Access System Circuit Diagram (Page 131-9)

Fig 11: Keyless Access System Circuit Diagram (Page 131-10)
