OEM Circuit Diagrams
›
Multiplex Integrated Control System
›
B-CAN Communication Line (Low)
B-CAN Communication Line (Low)

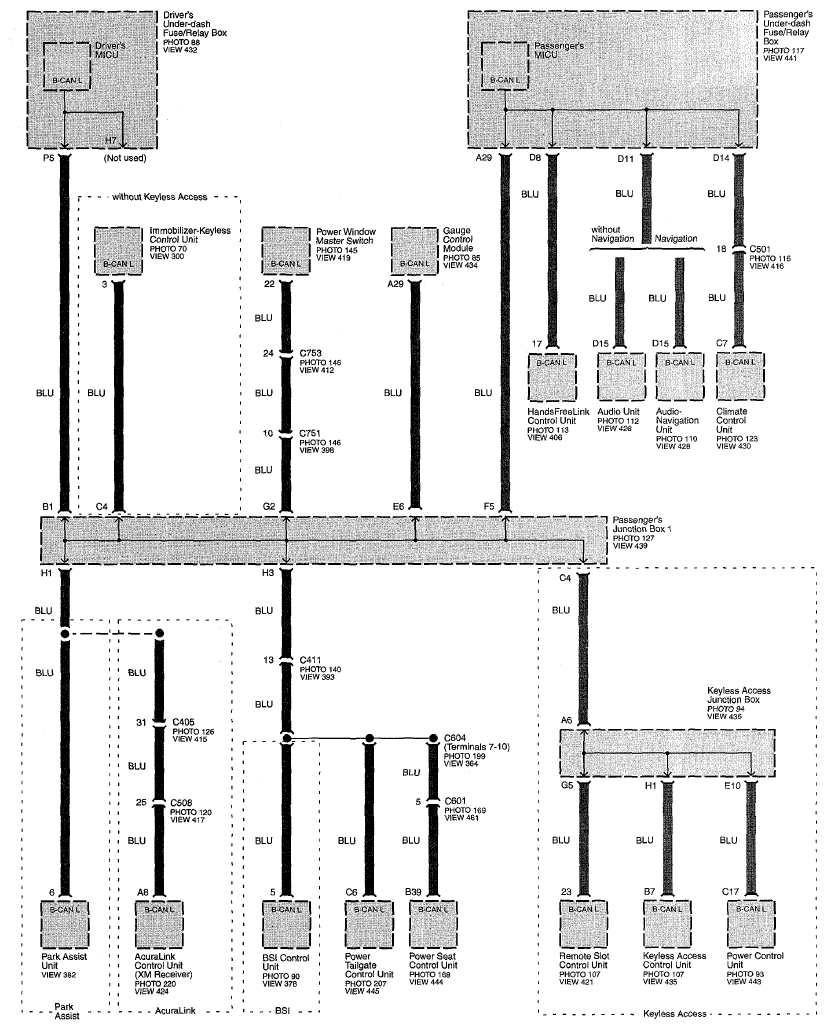

Fig 1: B-CAN Communication Line Circuit Diagram - Low (Page 50-3)
