OEM Circuit Diagrams
›
Multiplex Integrated Control System
›
F-CAN Communication Line (High)
F-CAN Communication Line (High)

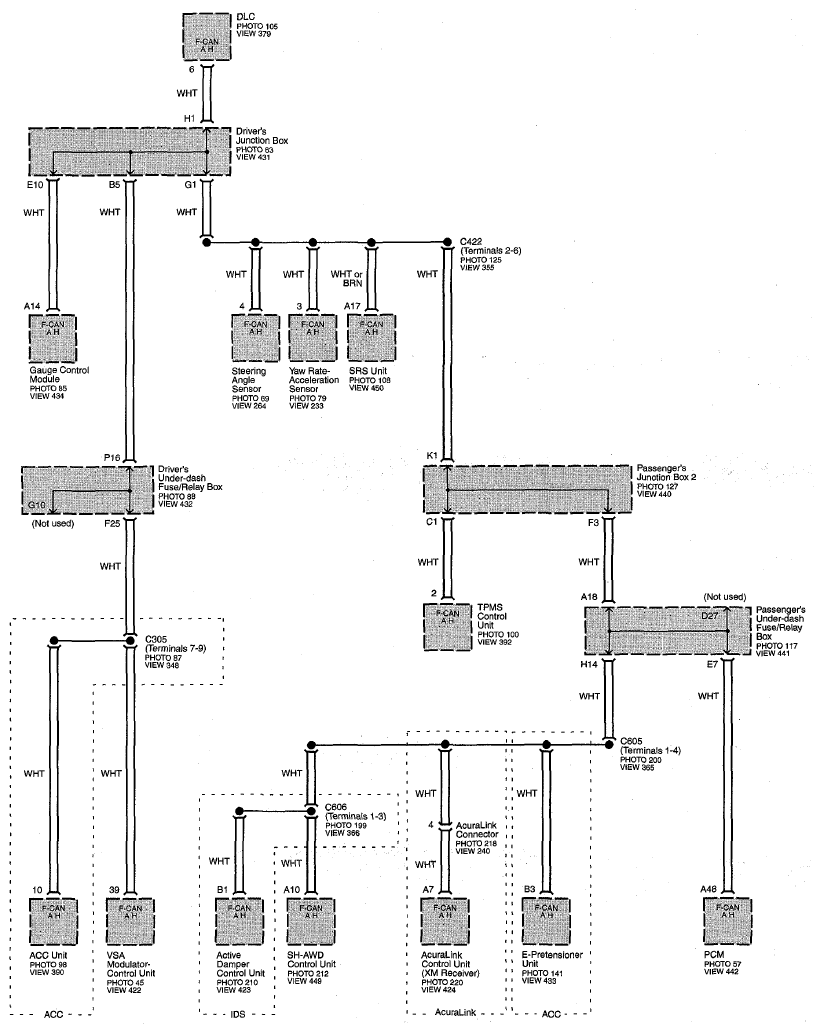

Fig 1: F-CAN Communication Line Circuit Diagram - High (Page 50-4)
