OEM Circuit Diagrams
›
Multiplex Integrated Control System
›
UART Communication Line
UART Communication Line

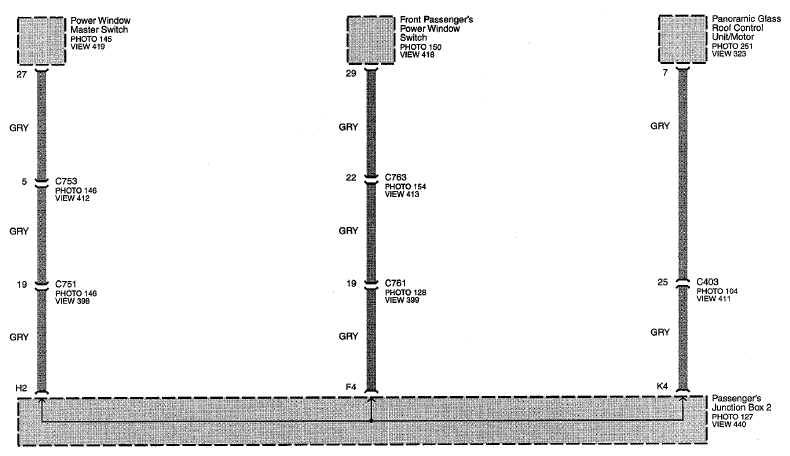

Fig 1: UART Communication Line Circuit Diagram (Page 50-8)
