Power Distribution

NOTE: For connector or component location "PHOTO", see OEM COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR END VIEWS .

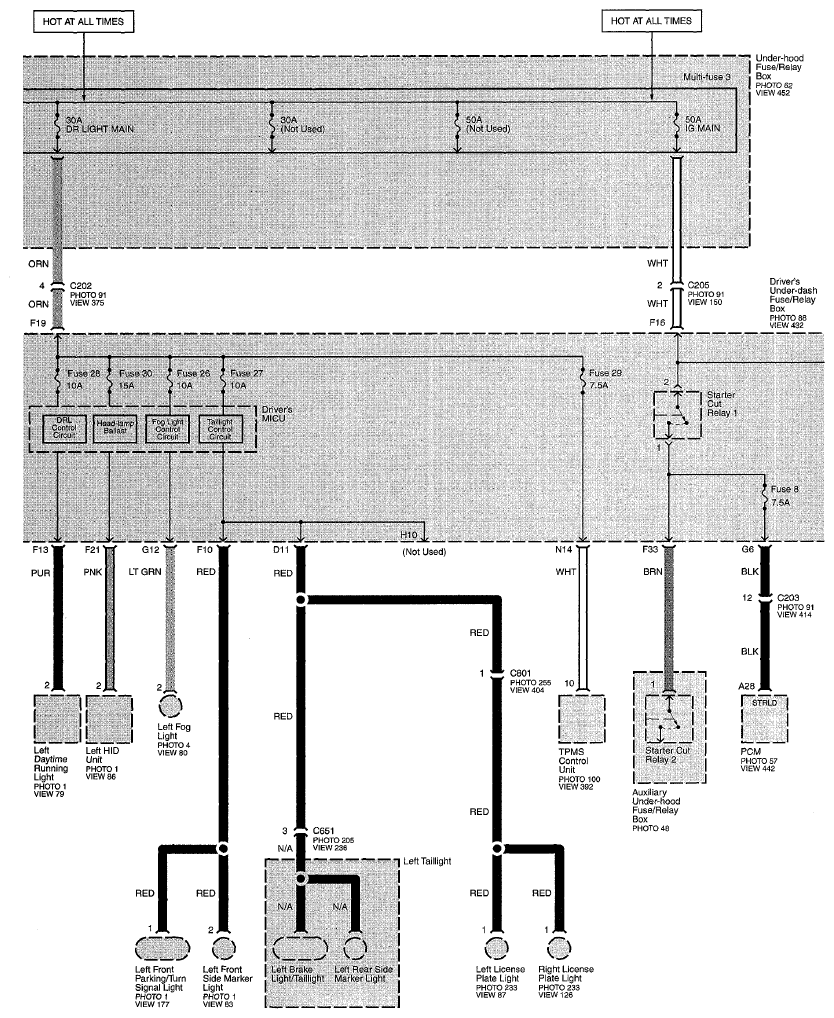

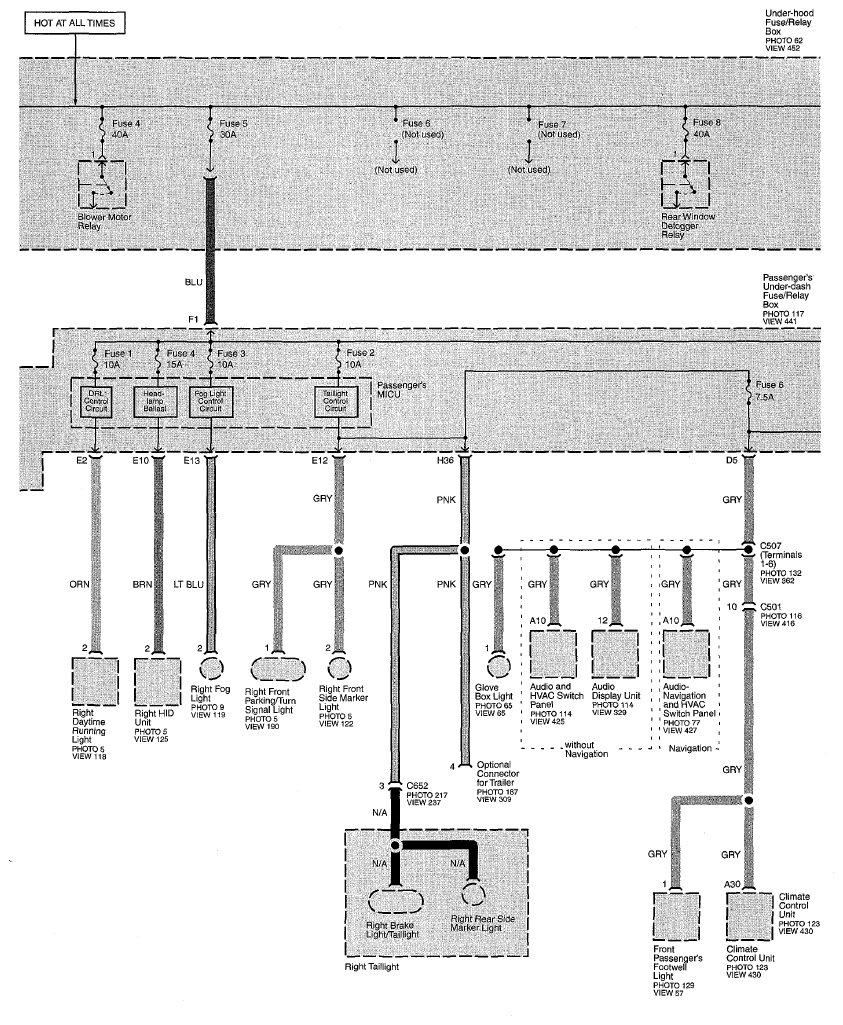

Fig 1: Power Distribution Circuit Diagram (Page 10)

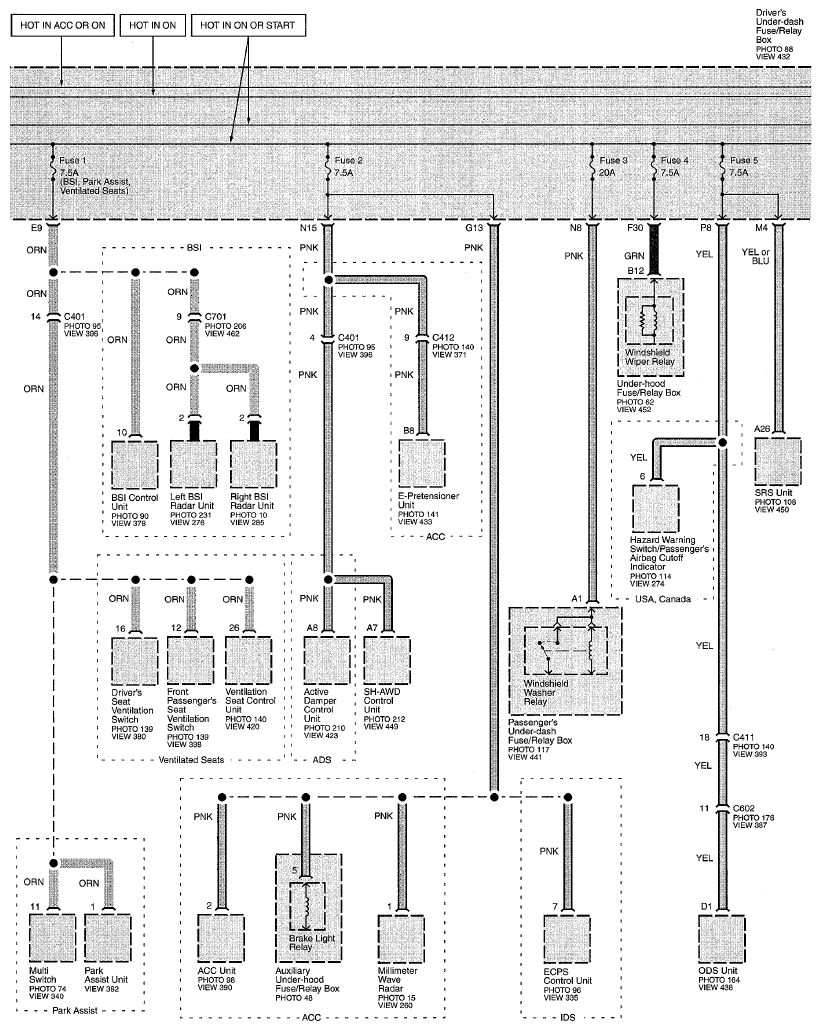

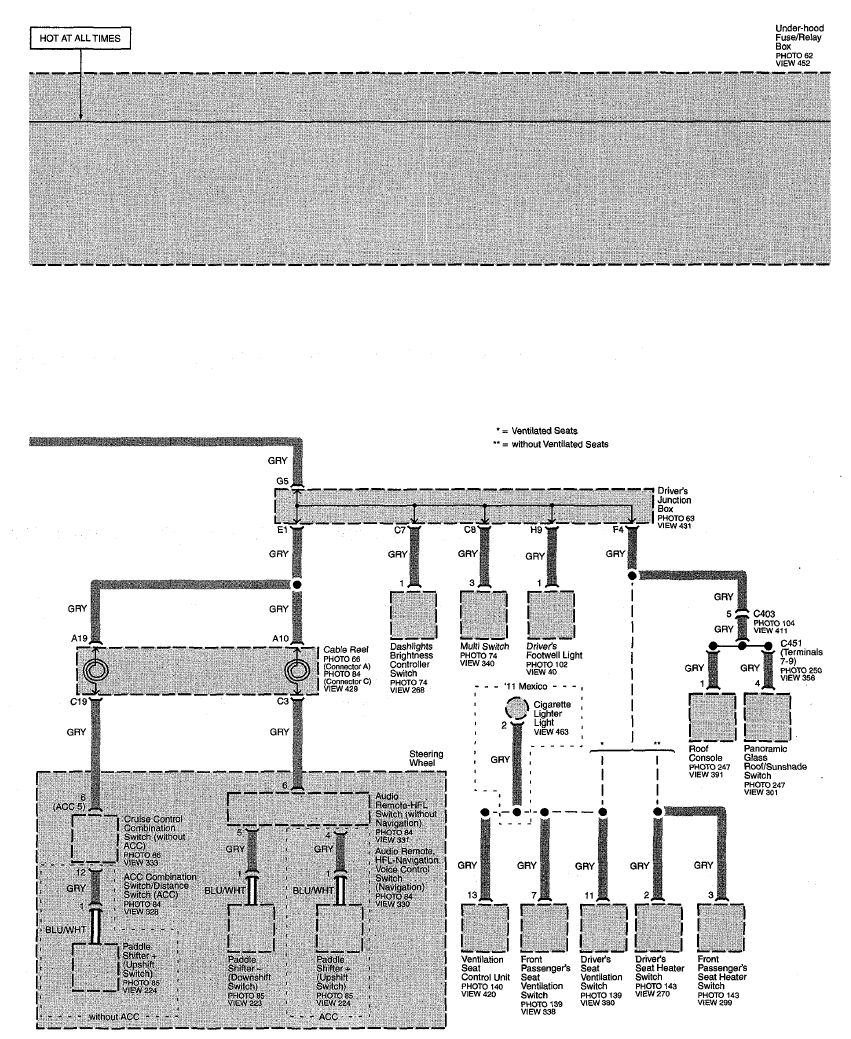

Fig 2: Power Distribution Circuit Diagram (Page 10-1)

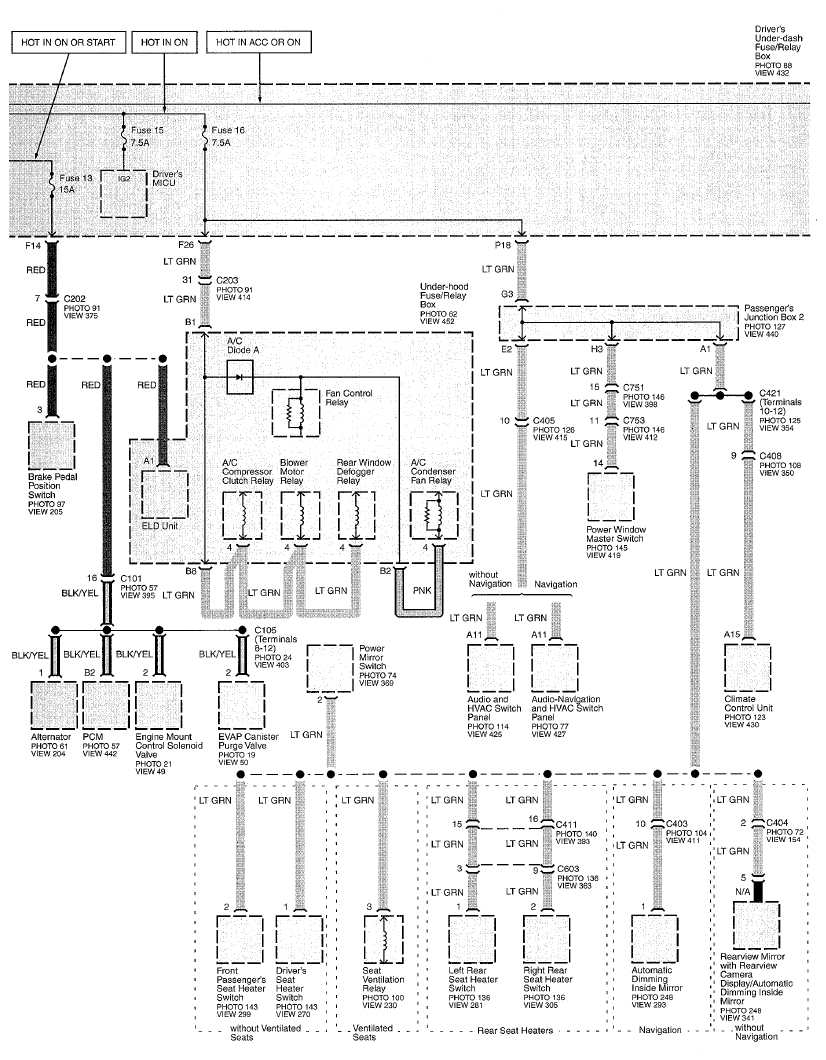

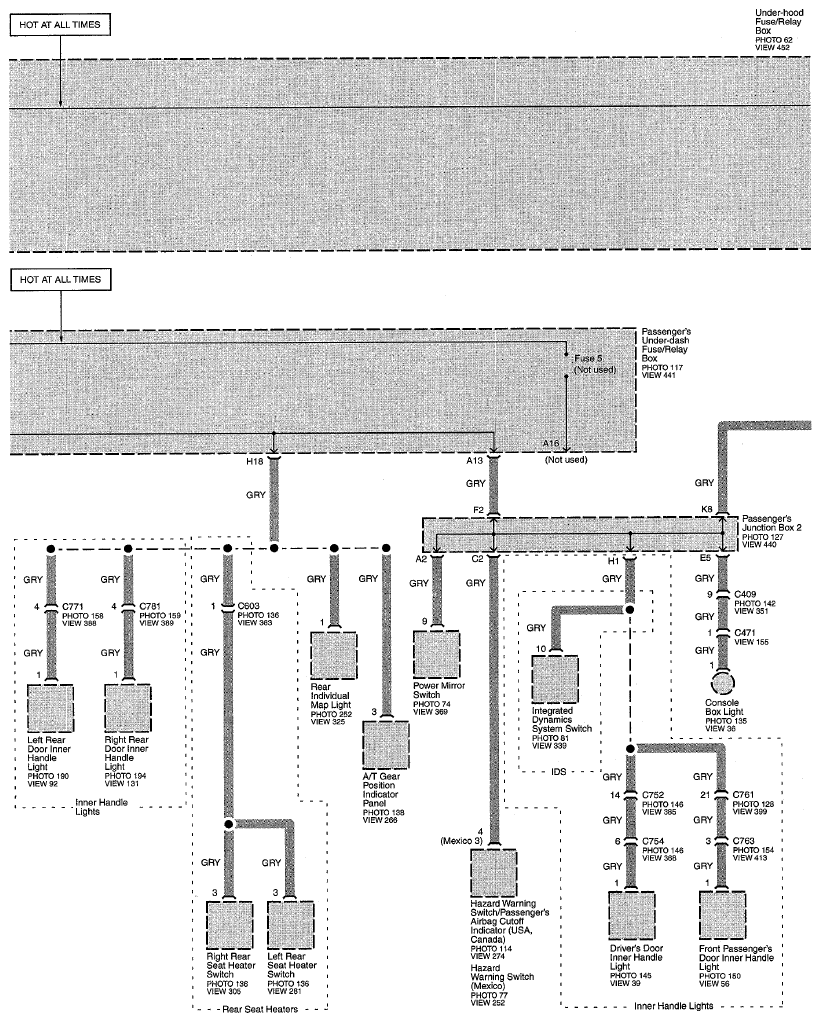

Fig 3: Power Distribution Circuit Diagram (Page 10-2)

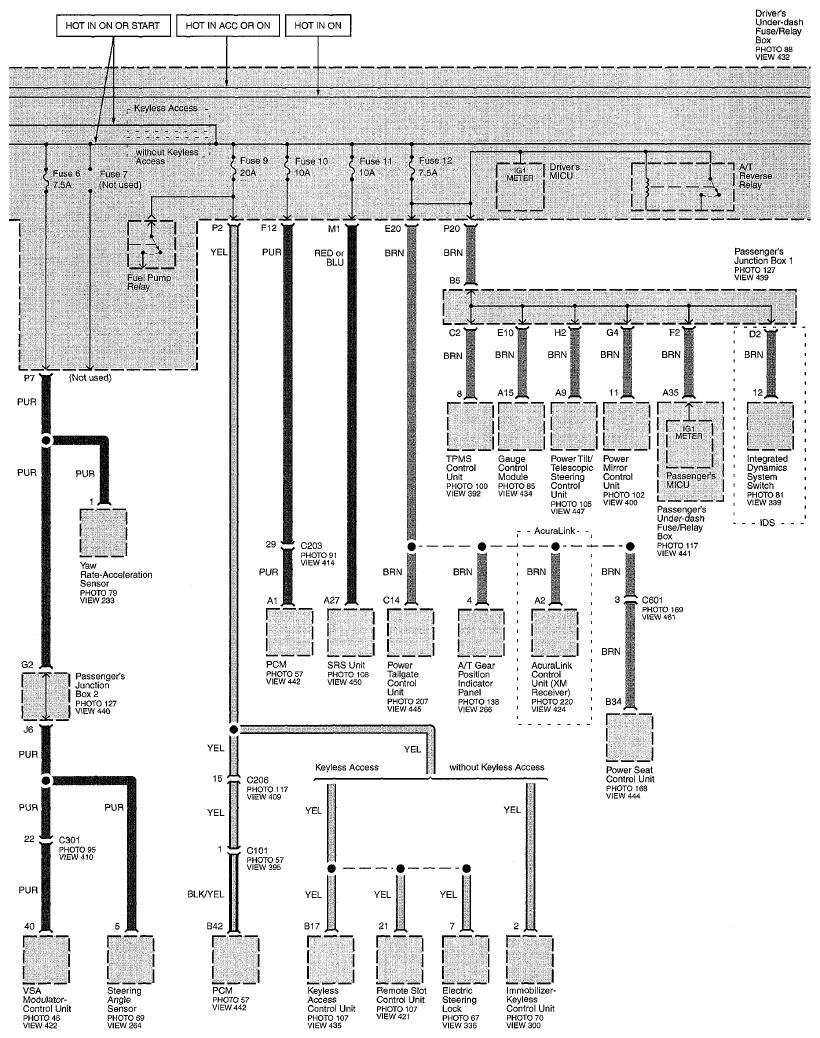

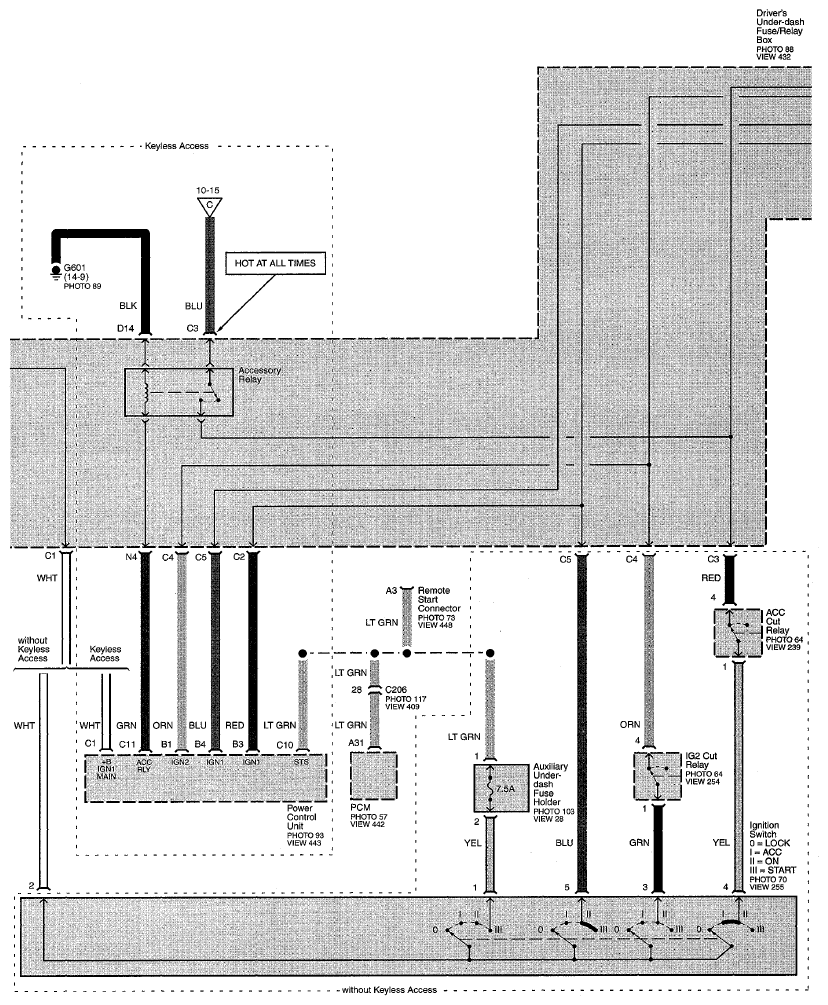

Fig 4: Power Distribution Circuit Diagram (Page 10-3)

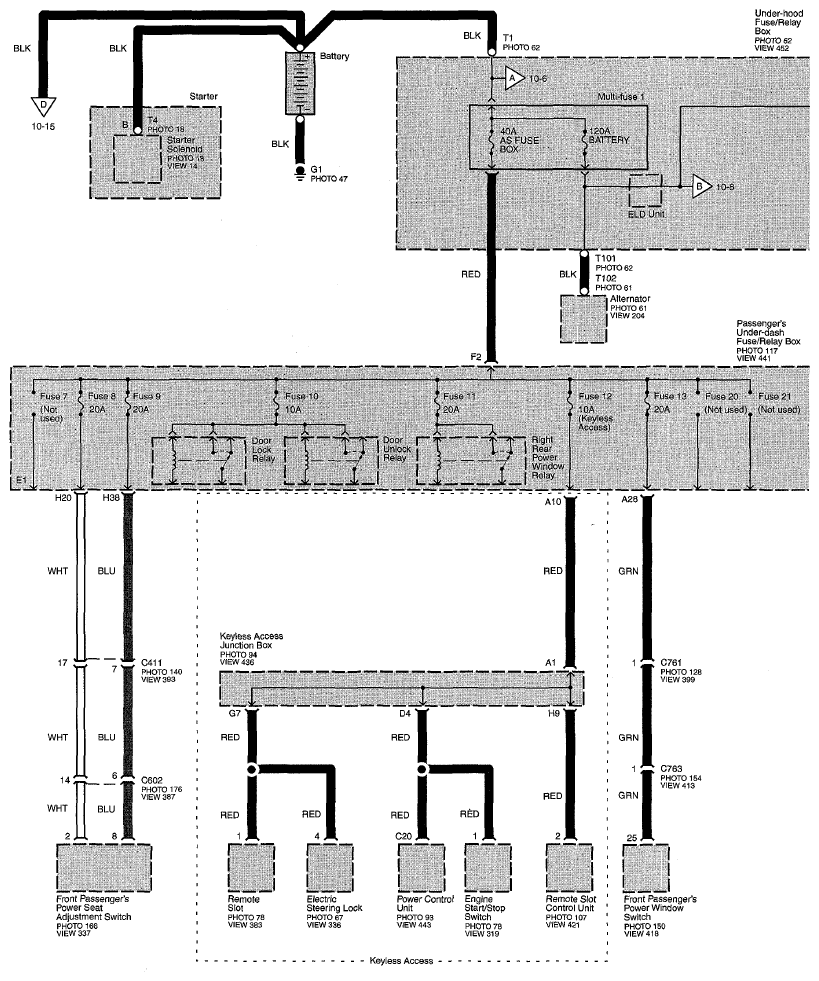

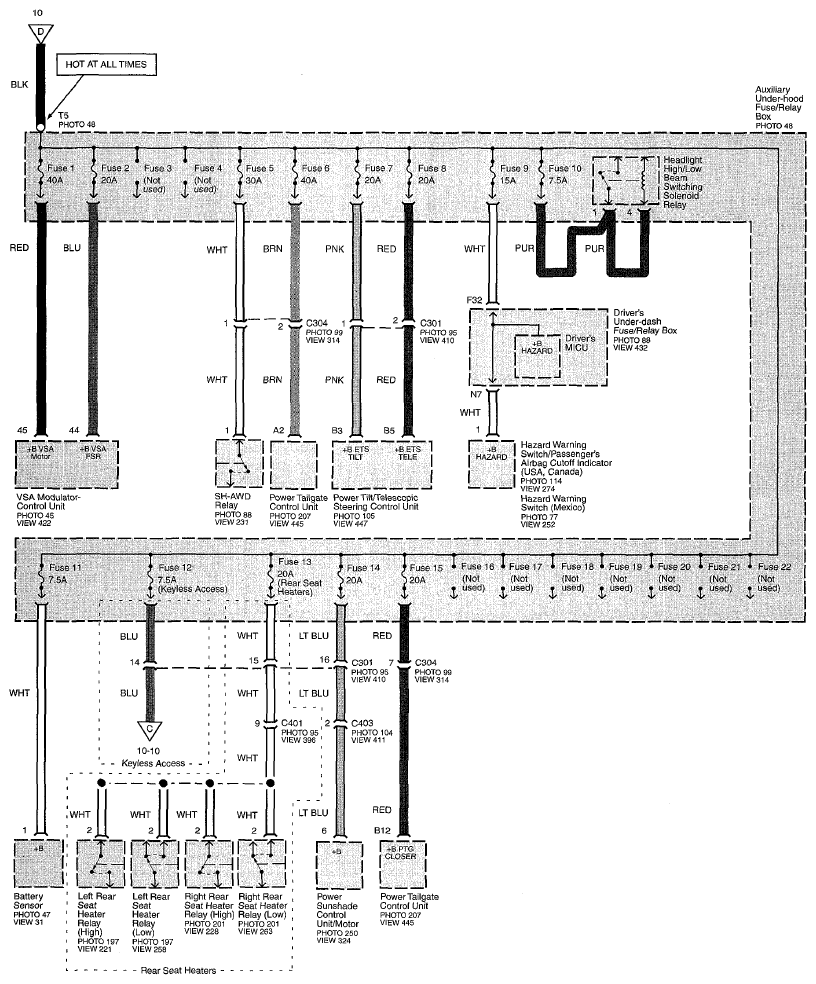

Fig 5: Power Distribution Circuit Diagram (Page 10-4)

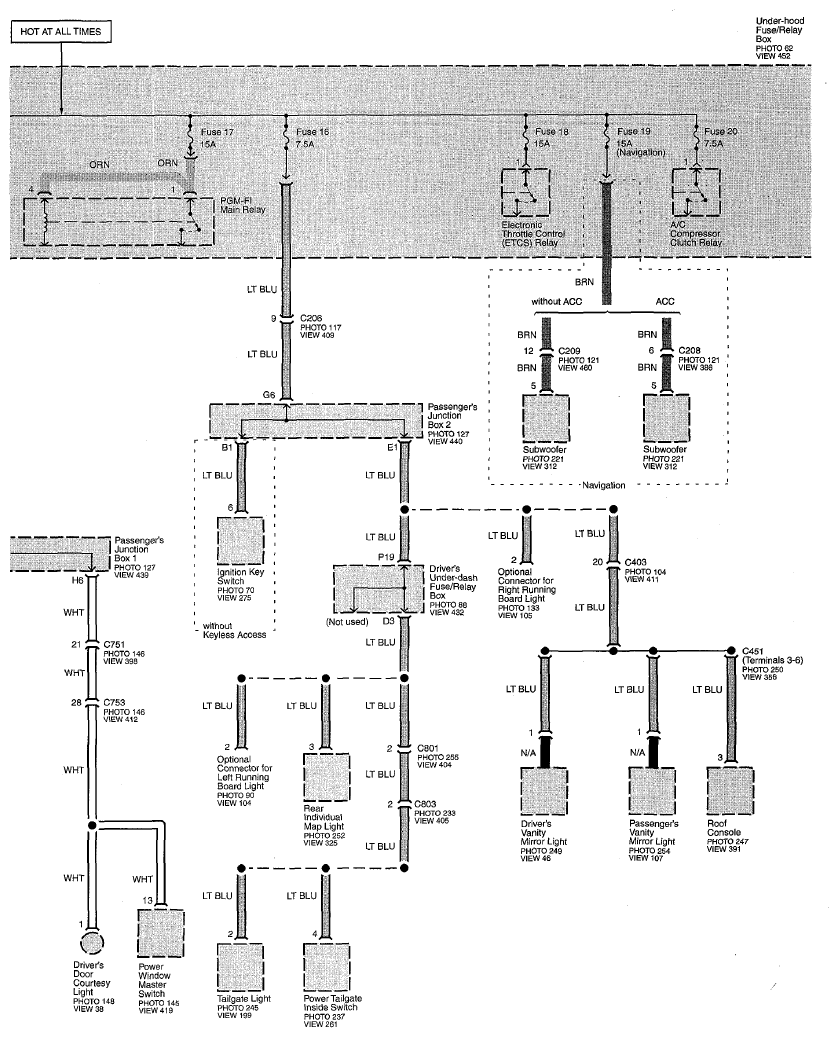

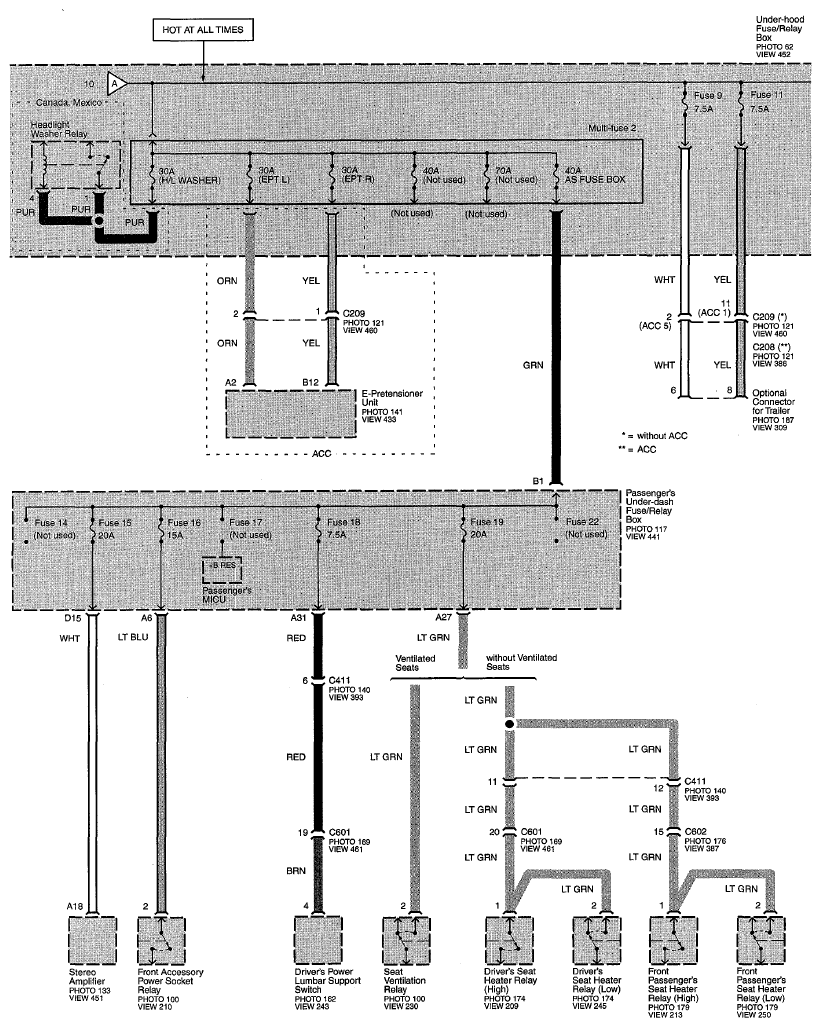

Fig 6: Power Distribution Circuit Diagram (Page 10-5)

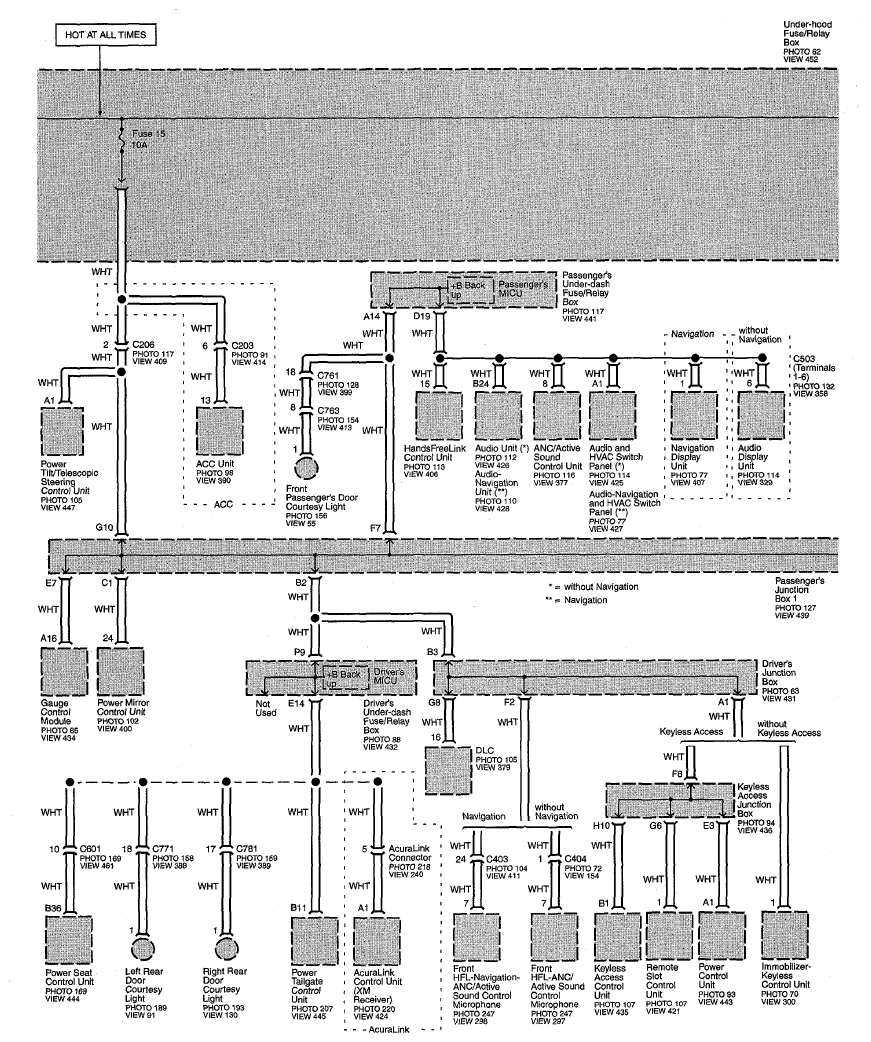

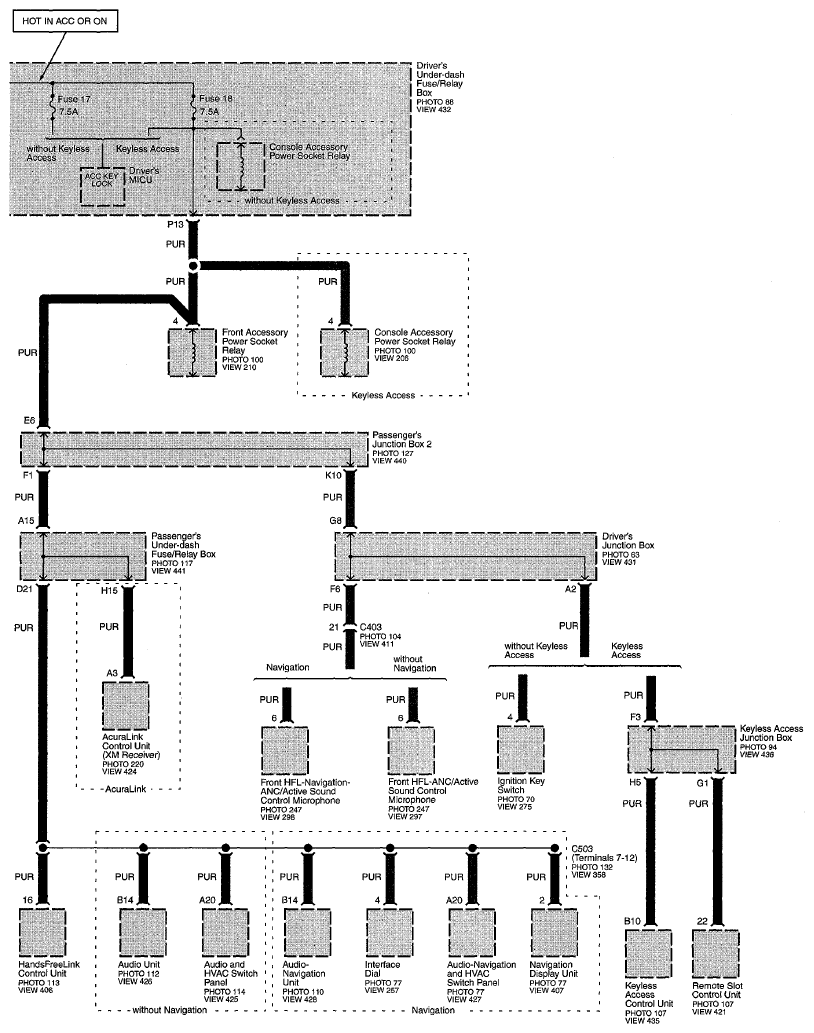

Fig 7: Power Distribution Circuit Diagram (Page 10-6)

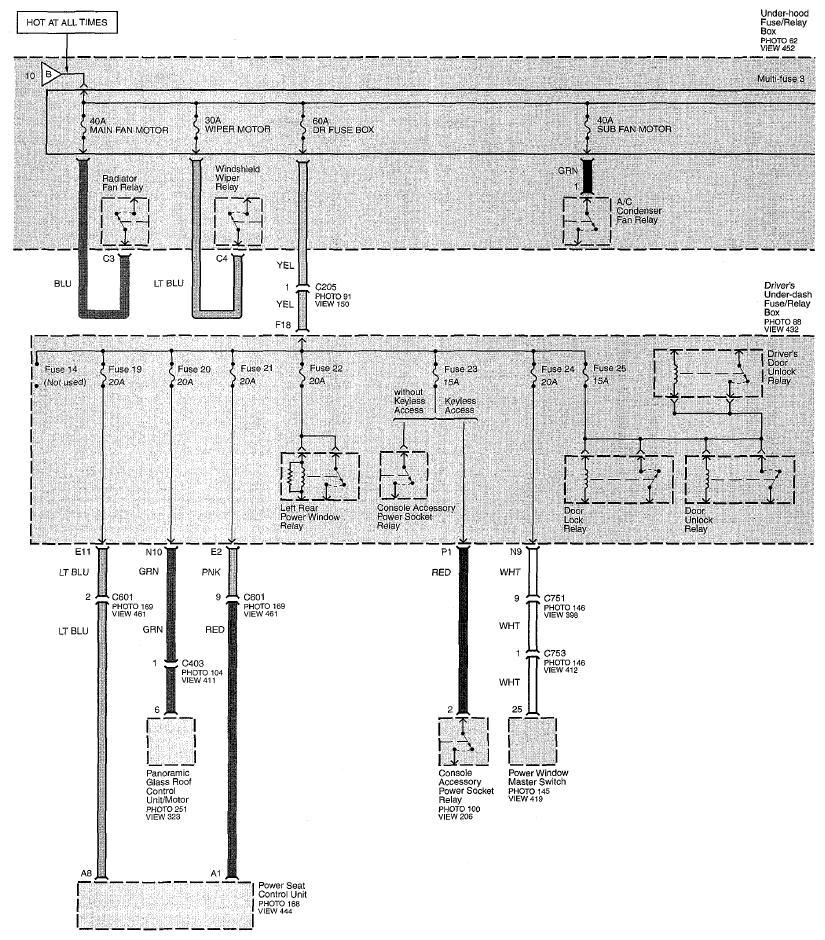

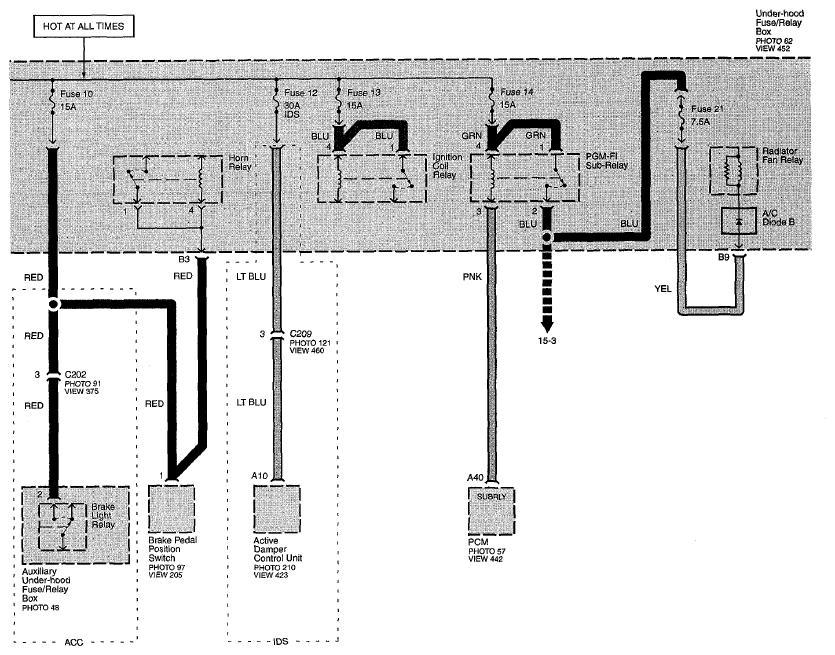

Fig 8: Power Distribution Circuit Diagram (Page 10-7)

Fig 9: Power Distribution Circuit Diagram (Page 10-8)

Fig 10: Power Distribution Circuit Diagram (Page 10-9)

Fig 11: Power Distribution Circuit Diagram (Page 10-10)

Fig 12: Power Distribution Circuit Diagram (Page 10-11)

Fig 13: Power Distribution Circuit Diagram (Page 10-12)

Fig 14: Power Distribution Circuit Diagram (Page 10-13)

Fig 15: Power Distribution Circuit Diagram (Page 10-14)

Fig 16: Power Distribution Circuit Diagram (Page 10-15)
