Rear Window/Power Mirror Defoggers
›
Notes
Rear Window/Power Mirror Defoggers: Notes

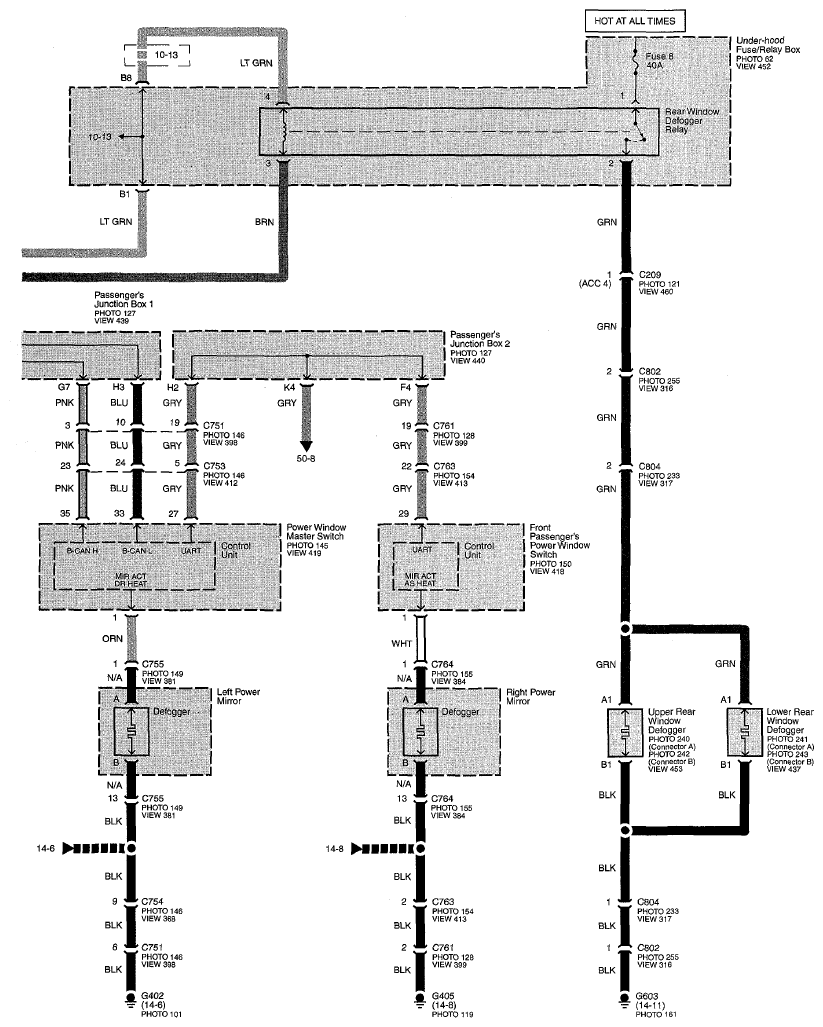

Fig 1: Rear Window/Power Mirror Defoggers Circuit Diagram (Page 64)

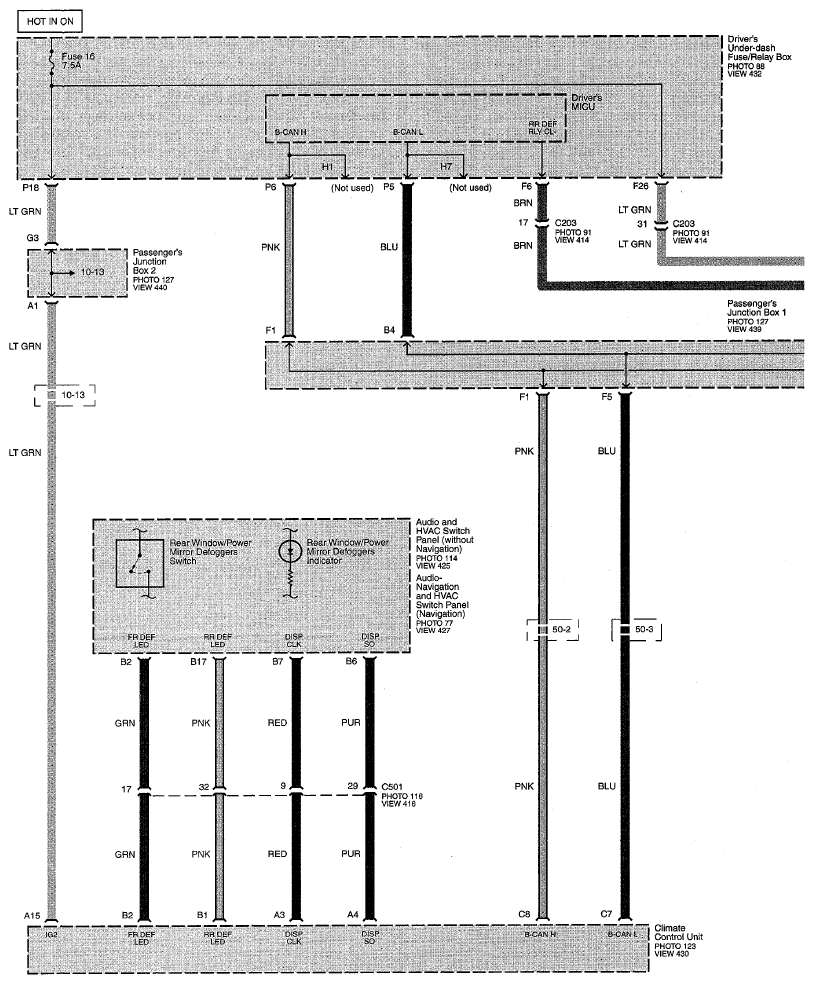

Fig 2: Rear Window/Power Mirror Defoggers Circuit Diagram (Page 64-1)
