Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM Circuit Diagrams
›
Starting System
›
Keyless Access
Keyless Access

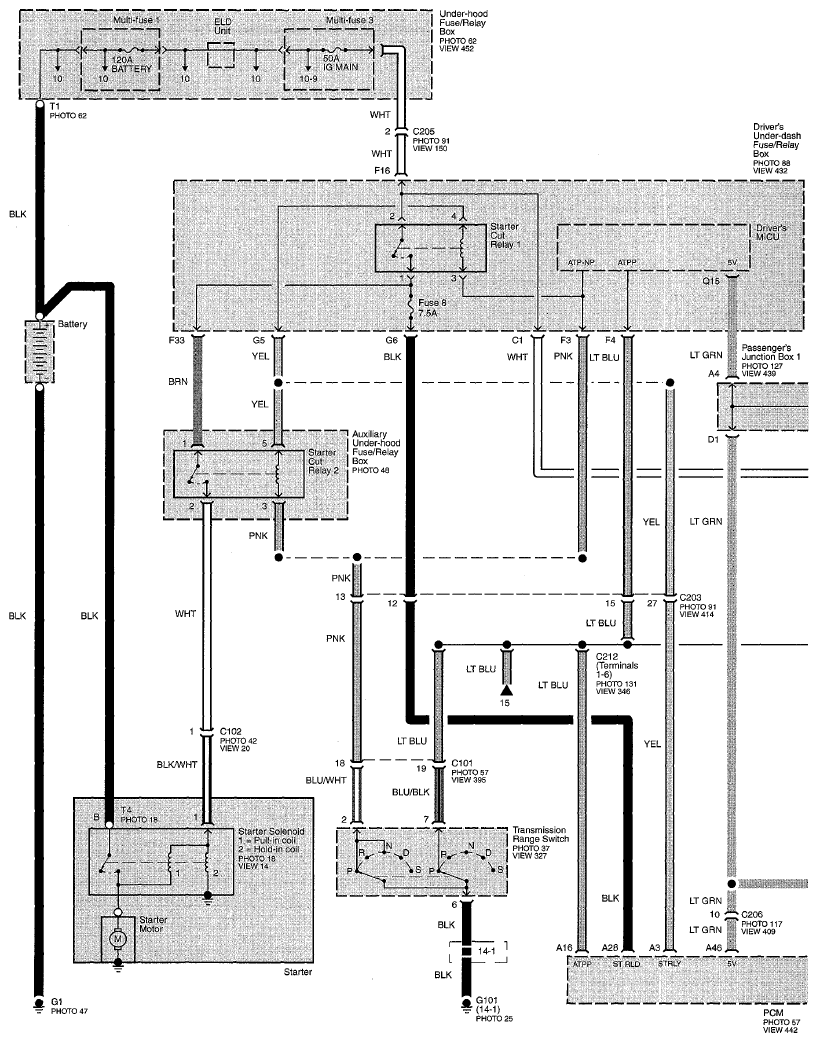

Fig 1: Starting System Circuit Diagram - Keyless Access (Page 21-2)

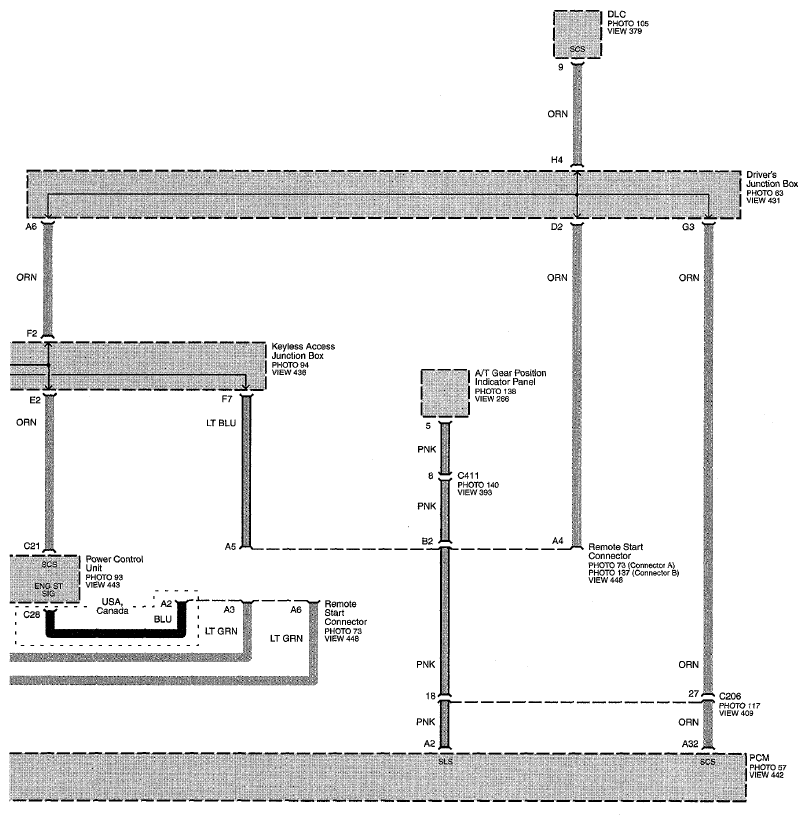

Fig 2: Starting System Circuit Diagram - Keyless Access (Page 21-3)

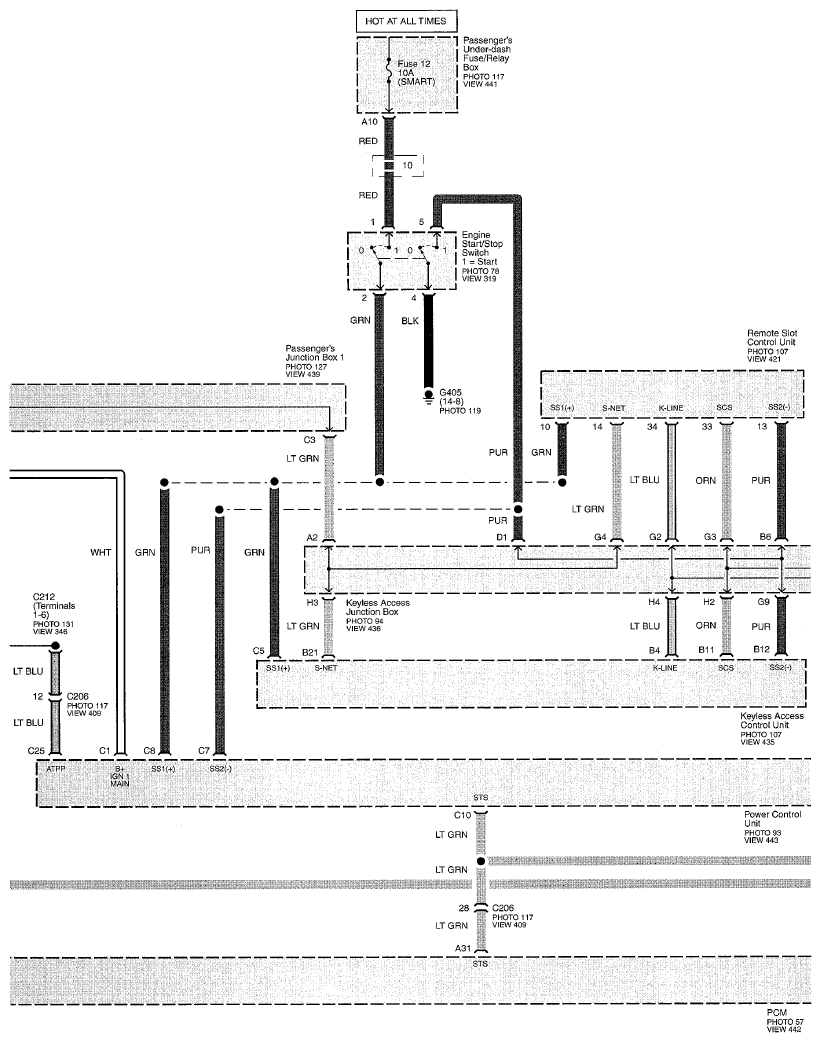

Fig 3: Starting System Circuit Diagram - Keyless Access (Page 21-4)
