Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM Circuit Diagrams
›
Starting System
›
without Keyless Access
without Keyless Access

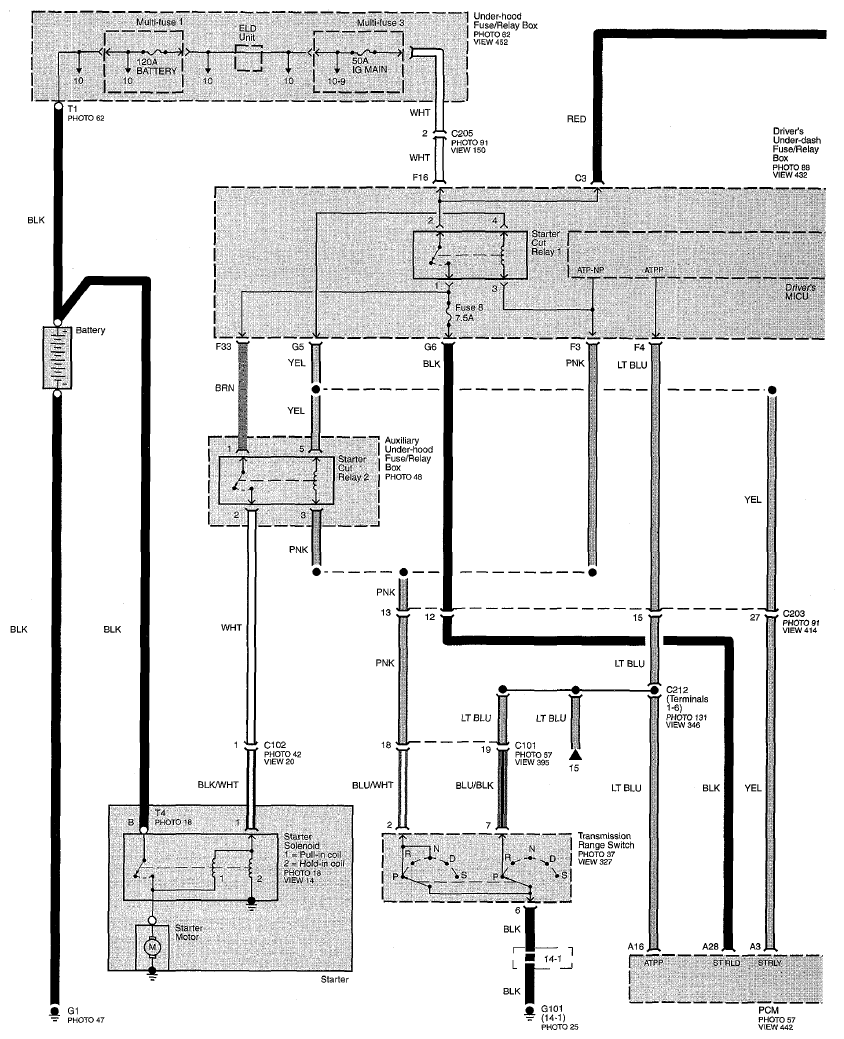

Fig 1: Starting System Circuit Diagram - Without Keyless Access (Page 21)

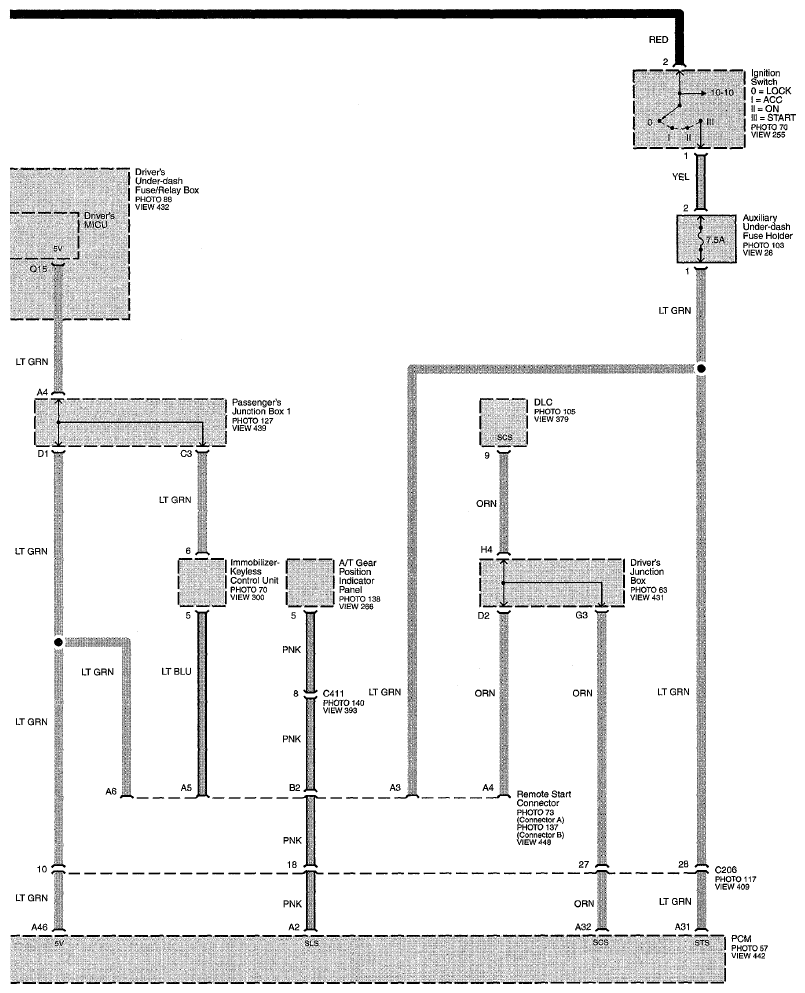

Fig 2: Starting System Circuit Diagram - Without Keyless Access (Page 21-1)
