USB Adapter Connector Connector End View
USB Adapter Connector Connector End View

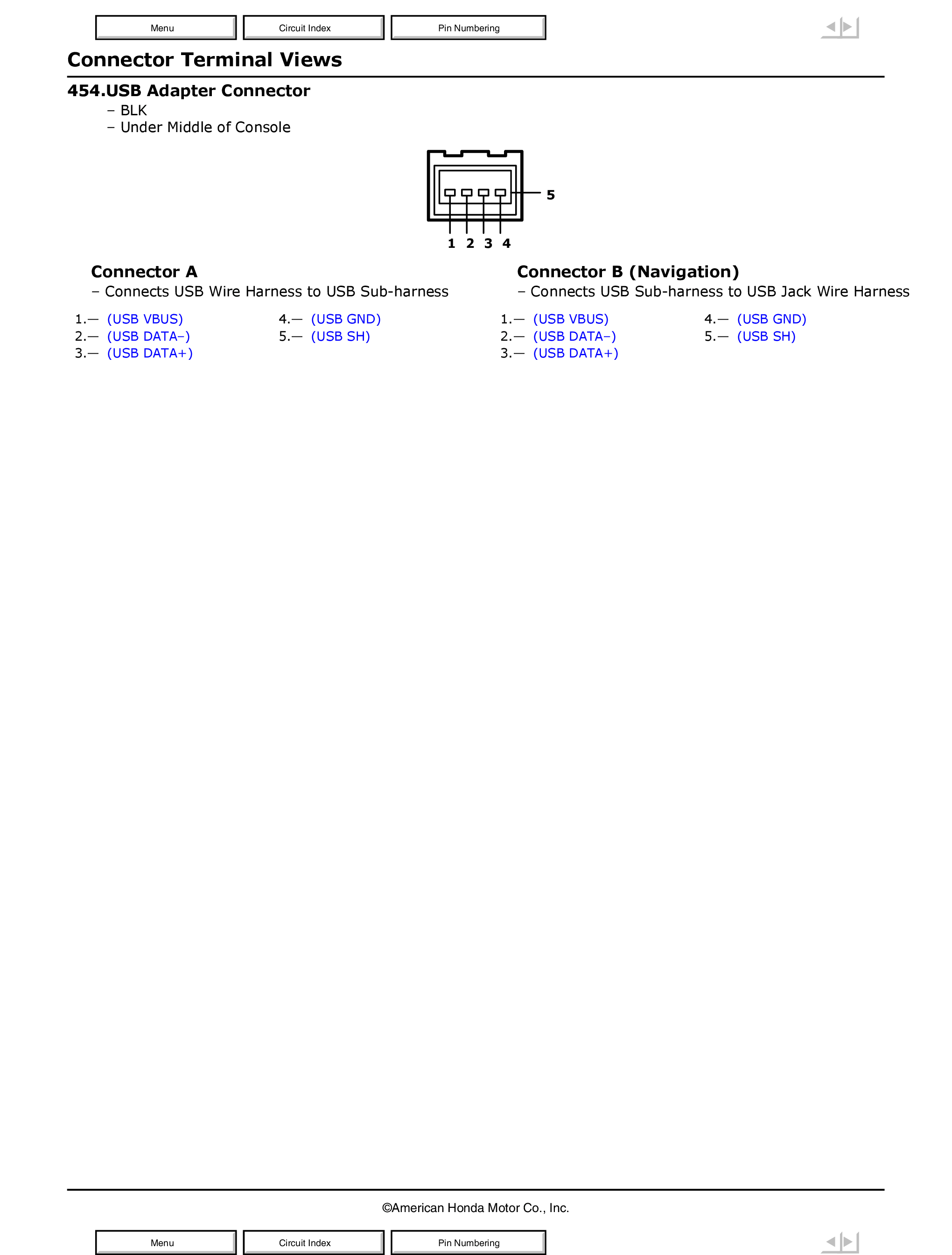

Fig 1: USB Adapter Connector Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
