Relay And Control Unit Locations: Dashboard: Notes

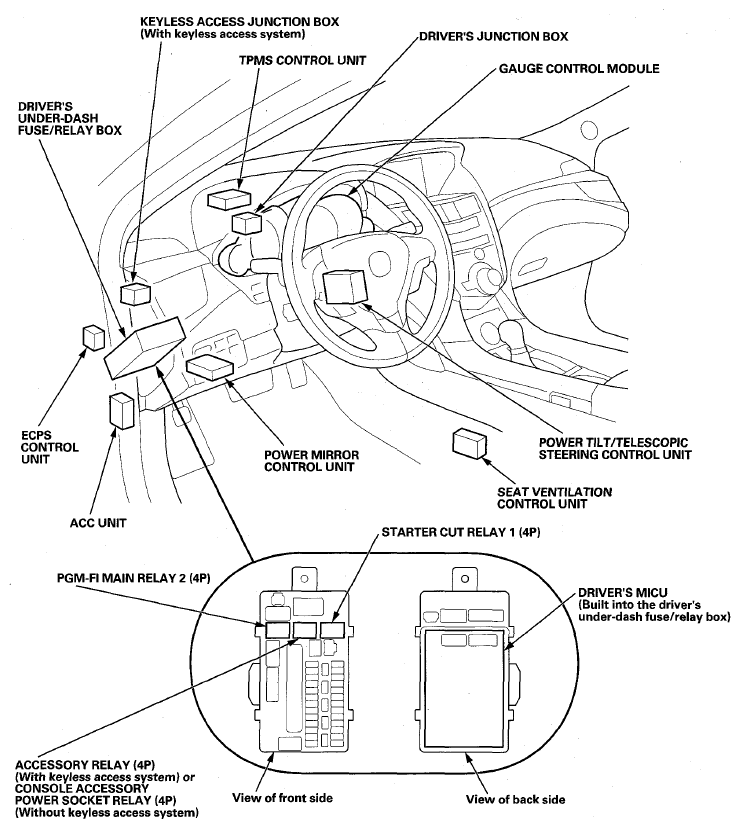

Fig 1: Identifying Relay And Control Unit Locations - Dashboard
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
