Relay And Control Unit Locations
›
Seat
›
Driver's Seat
Driver's Seat

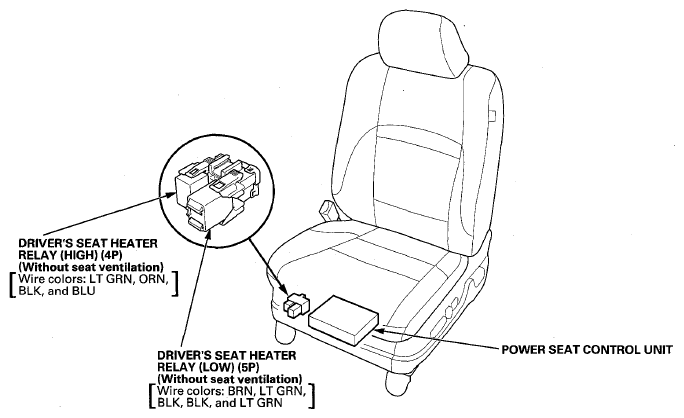

Fig 1: Identifying Relay And Control Unit Locations - Driver's Seat
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
