Alternator Removal and Installation: Removal
- Do the battery terminal disconnection procedure (see
BATTERY TERMINAL DISCONNECTION AND RECONNECTION
).
- Remove the A/C condenser fan shroud assembly (see
FAN, FAN MOTOR, AND SHROUD REMOVAL AND INSTALLATION
).
- Remove the drive belt (see DRIVE BELT REPLACEMENT
).

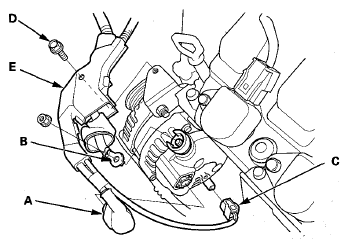

- Disconnect the alternator connector (A) and the positive alternator cable (B) from the alternator.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Disconnect the A/C compressor clutch connector (C) from the A/C compressor.
- Remove the bolt (D) securing the harness holder (E).
- Remove the mounting bolt (A) and the alternator bracket mounting bolt (B), then remove the alternator.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
