Acura
›
2012
›
ZDX
›
Repair and Diagnosis
›
Electrical
›
Charging Systems
›
Charging System
›
Circuit Diagram
›
With Keyless Access System
With Keyless Access System

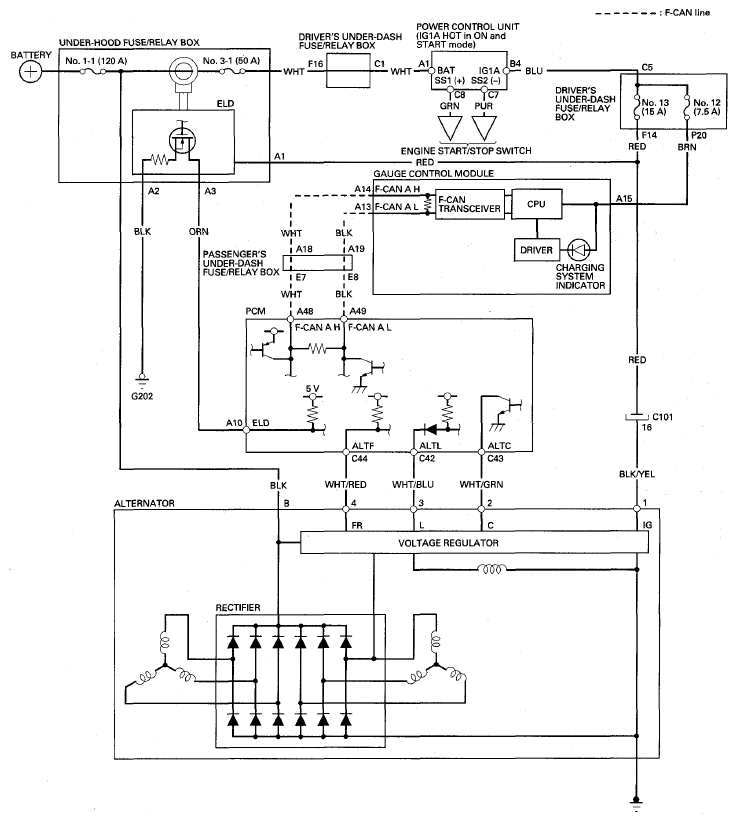

Fig 1: Charging System Circuit Diagram - With Keyless Access System
Courtesy of AMERICAN HONDA MOTOR CO., INC.
