Repair and Diagnosis
›
Electrical
›
Charging Systems
›
Charging System
›
Circuit Diagram
›
Without Keyless Access System
Without Keyless Access System

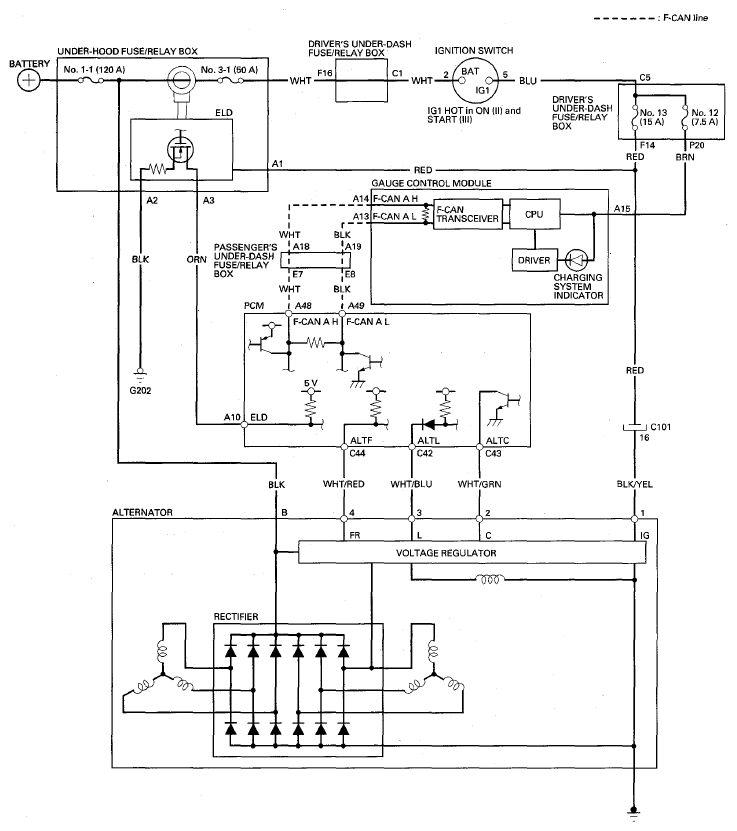

Fig 1: Charging System Circuit Diagram - Without Keyless Access System
Courtesy of AMERICAN HONDA MOTOR CO., INC.
