Repair and Diagnosis
›
Electrical
›
Gauges
›
Reminder Systems
›
Circuit Diagram
Circuit Diagram

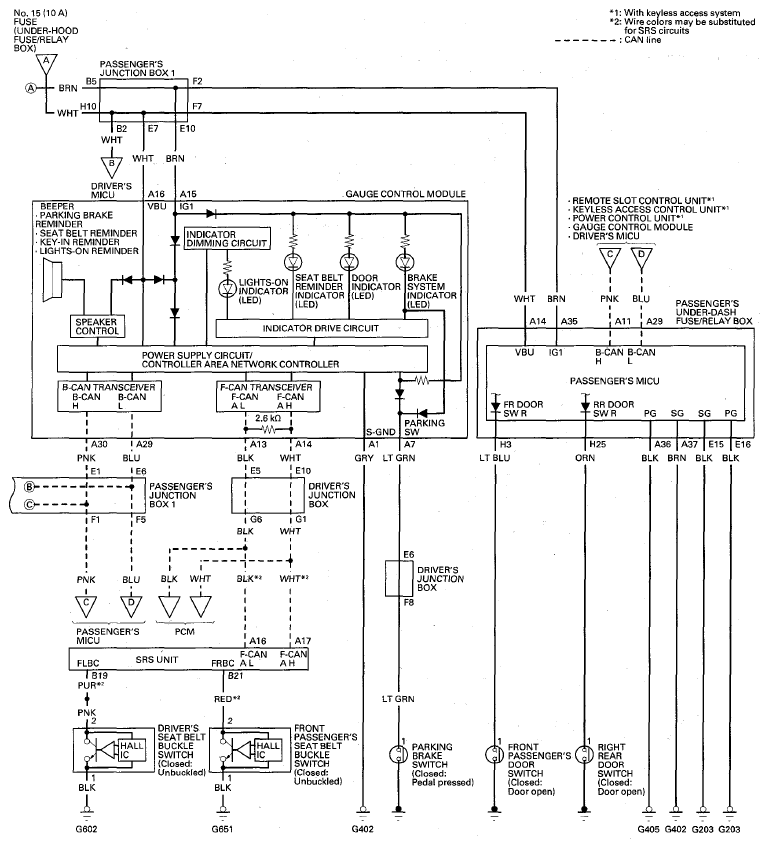

Fig 1: Reminder Systems Circuit Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

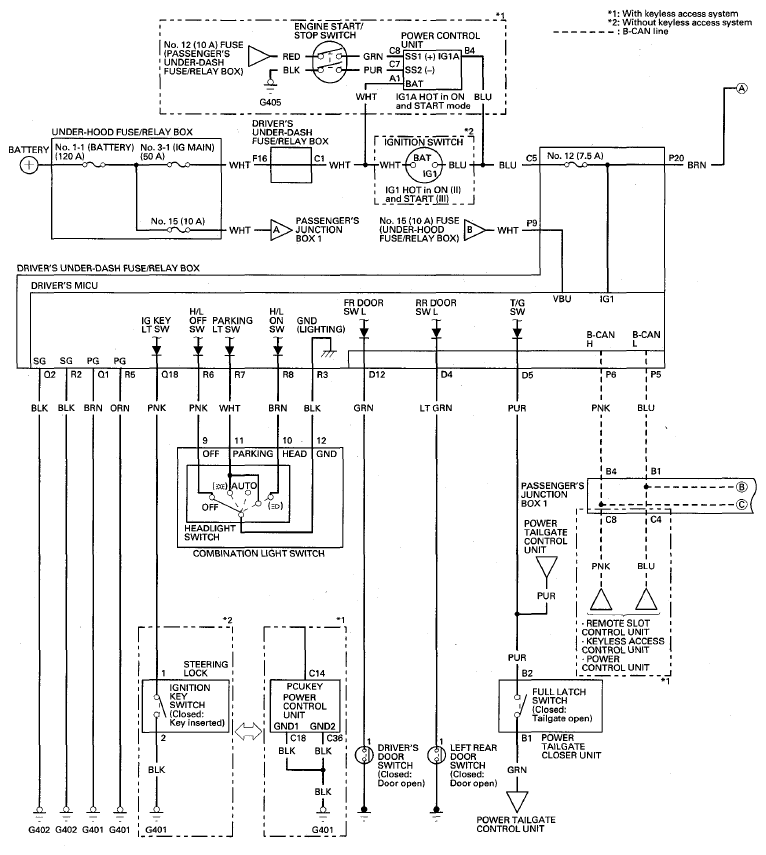

Fig 2: Reminder Systems Circuit Diagram (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
