Safety Indicator System
›
Circuit Diagram
Circuit Diagram

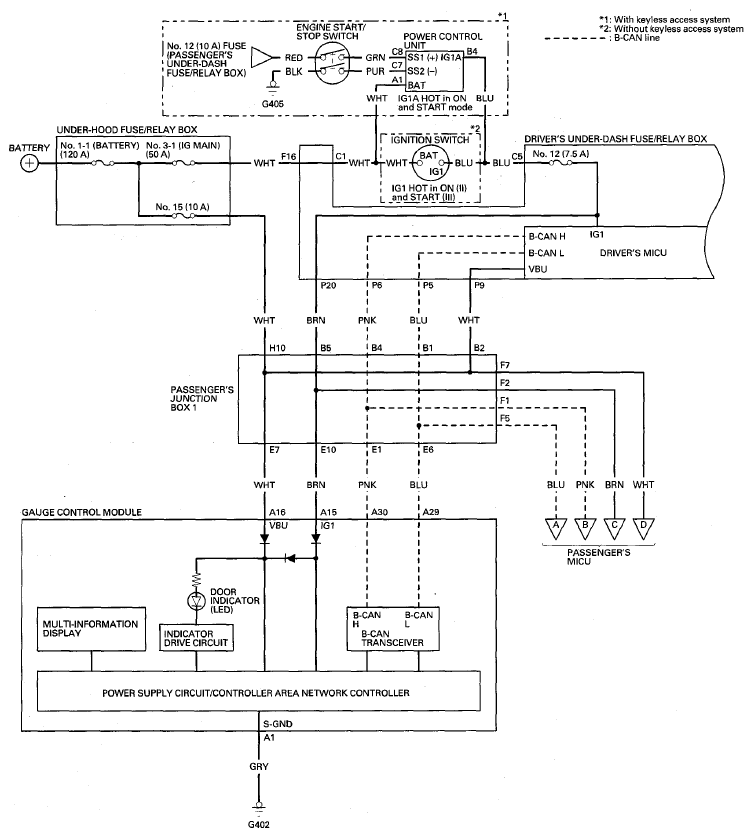

Fig 1: Safety Indicator System Circuit Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

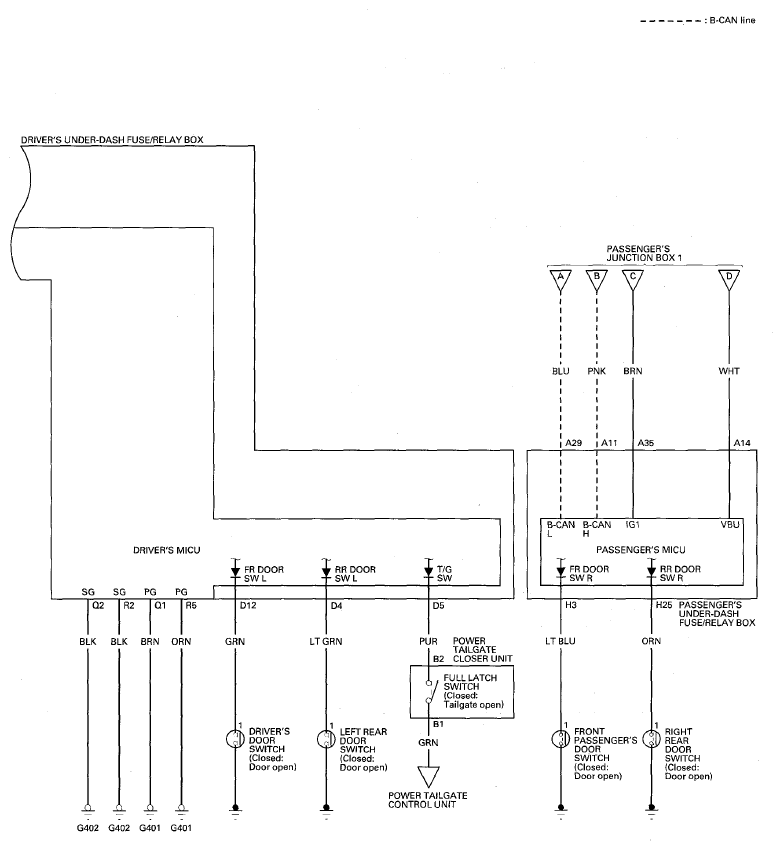

Fig 2: Safety Indicator System Circuit Diagram (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
