Circuit Diagram
›
Without Keyless Access System
Without Keyless Access System

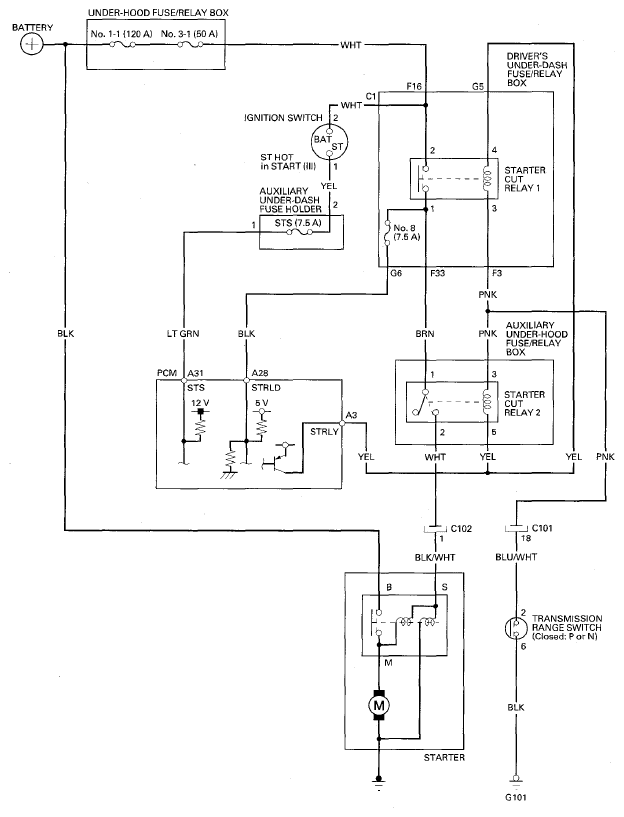

Fig 1: Starting System Circuit Diagram - Without Keyless Access System
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
