System Description
›
Fuel and Emissions Systems Diagram
Fuel and Emissions Systems Diagram

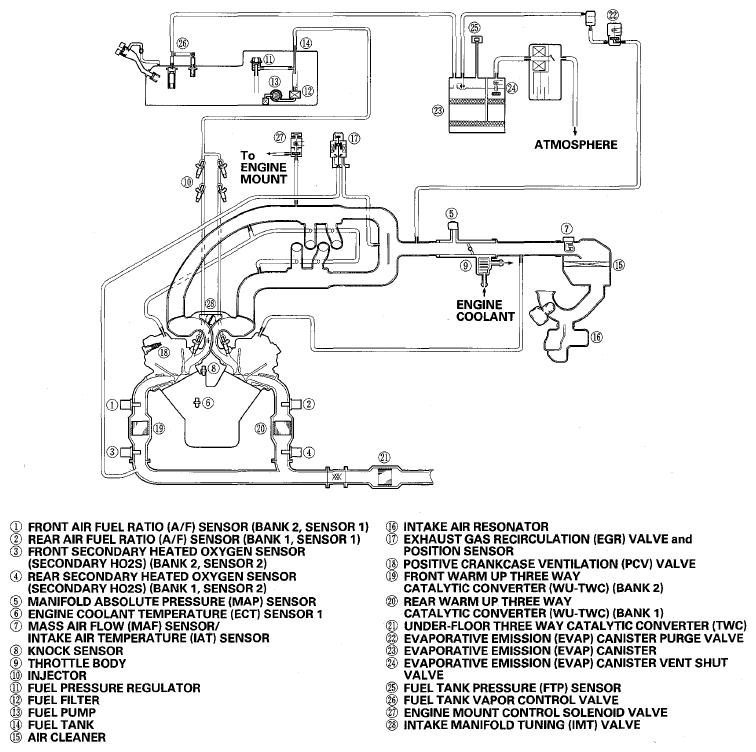

Fig 1: Fuel And Emissions Systems Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
